ODM Energy Saving Animal Feed Pellet Mill Machine For Cattle Feed

Poultry Animal Cow Feed Pellet Mill Animal Feed Pellet Machine Price

Product description of feed pellet mill machine:

Ring die feed pellet machine is a large feed pellet machine, used to make corn stalks, bean stalks, flower seedlings, sweet potato wine, clover, rape stalks, etc. into cows, pigs, cows, sheep, rabbits, chickens, ducks, fish, etc. This ring die feed machine is the first choice for large and medium-sized feed mills and various livestock farms to make feed. It is suitable for pelletizing in feed mills, feedlots, Chinese herbal medicine, chemical industry and other industries. The ring die feed grinder can granulate various feed materials, aquatic feed, pet food, grass meal, and organic fertilizer materials.

Working principle of feed pellet mill machine:

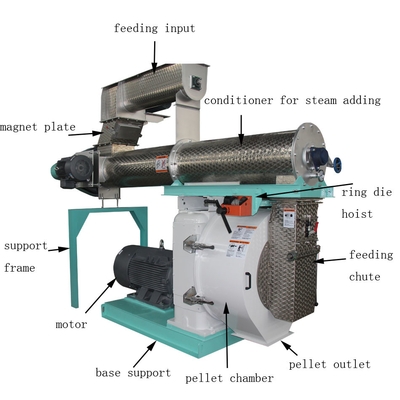

Feed pellet mill machine is mainly composed of feeder, modulator, pelletizer, lubrication system, etc. The operating procedure requires that the mixing degree of the material and the powder does not exceed 15%. The material enters the feeding screw through the silo. The speed can be changed by adjusting the stepless speed regulation motor, so that the material can flow moderately. Then the paddle stirrer is mixed with steam to start temperature adjustment. After tempering, the temperature of the material can reach 64℃～84℃, and the humidity can reach 14%～16%. Finally, the material enters the press box through the chute for granulation.



1. The all-stainless steel modulator, guaranteeing the efficient contact between the steam and the fodder, is configured with access hole with opening door to be cleaned and maintained easily.

2. Double-motor drive. The high strength SPB narrow V-belt drive transmit stably and reliably with low noise.

3. The feed machine is configured with many kinds of ring dies with different aperture diameters in a range of 1.5mm to 12 mm and compression ratio for different requires of different clients.

4. The ring die of feed machine with quick-release coupling can reduce the time of replacing the ring die to improve the production efficiency.

5. The modulator with major diameter is equipped for ripping the material fully to make the material smoother and make the pellet hardness more proper. The briquetting ratio can reach 98%. Also the abrasion to the machine can reduce to the lowest.
