SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine

SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine
SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine

Large Image :  SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 3999-6999
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Animal Feed Pellet Mill Machine Equipment Ring Die Granulator Machine Capacity: 1-3 Tons Per Hour
Raw Material: Animal Feed Powder Material: Stainless Steel Or Carbon Steel
Voltage: 380V/415V Warranty: 12 Month
High Light:

SGS small feed granulator machines 415V

,

SGS small feed granulator machine 415V

,

SGS 415V small feed granulator machine

Animal Feed Pellet Mill Machine Equipment Ring Die Granulator Machine



Product description of feed pellet mill machine



Feed pellet mill machine are also known as animal feed pelletizers or chicken feed pelletizers, which belong to feed processing machinery. Corn, soybean meal, rice straw, rice straw, rice husk, etc. are directly compressed into pellets. As a result, it is widely used in aquaculture, animal feed processing plants and poultry farms. Various animal feed pelletizing machines are classified according to their appearance and production methods. Among them, the flat die feed pelletizer and the ring die feed pelletizer are the most popular. The ring die feed pelletizer flat film feed pelletizer is more wear-resistant and requires less maintenance.



Parameter of feed pellet mill machine



Model No. Main motor power Capacity (t/h) Ring die inner diameter (mm) Feeder power (kw) Conditioner motor power (kw) Size (mm) Weight (kg)
SZLH250 22kw 0.6-1 250 0.75 1.1 1750×650×1750 800
SZLH320 37kw 1-3 320 0.75 2.2 1900×1800×1650 2000
SZLH350 55kw 3-5 350 0.75 2.2 2100×2000×1850 2400
SZLH420 110kw 8-10 400 1.5 4 2200×2000×2150 2900
SZLH508 132/160kw 10-18 450 1.5 4 2300×2350×2150 3500

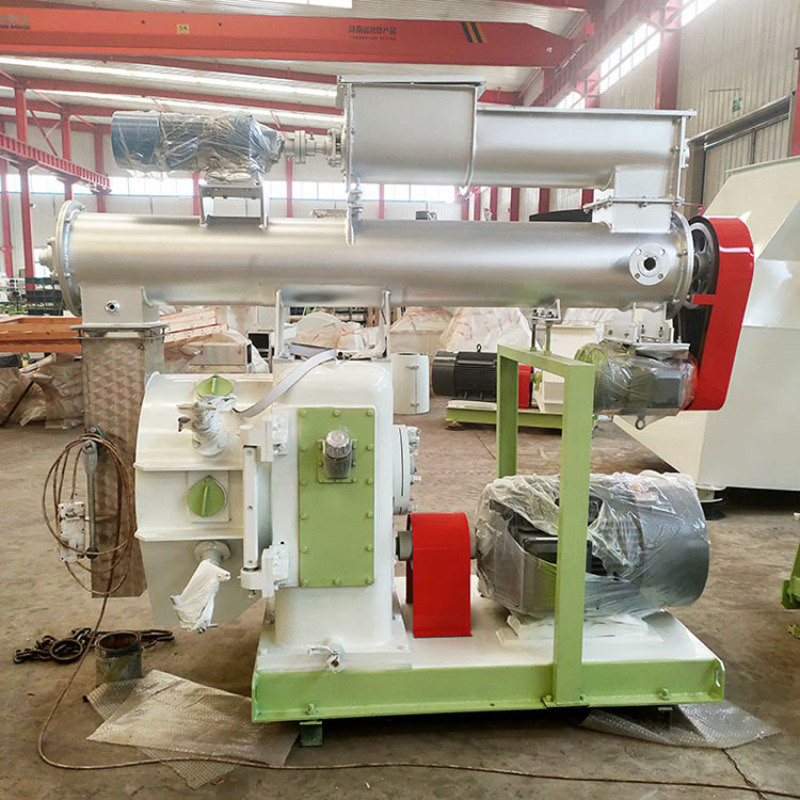

SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine 0

Features of feed pellet mill machine:



1. The part in contact with the material adopts stainless steel structure, which occupies a small area and has low noise;
2. Wide adaptability, can produce chicken feed, duck feed, fish feed, etc., with high economic benefits;
3. Using dry processing technology, the produced feed pellets have high hardness, smooth surface and internal maturity, which is beneficial to the digestion and absorption of nutrients by animals;
4. The forming process of the pellets kills all kinds of parasite eggs and other pathogenic microorganisms, thereby reducing the types of insects and diseases in the digestive system.

Advantages of feed pellet mill machine:

1. The feeder of the company's ring die feed factory adopts imported original frequency conversion controller, feeding evenly and accurately.
2. The conditioner of this feed granulator is all made of stainless steel to ensure that it will not deteriorate in the steam environment for a long time. The access door is also designed to facilitate cleaning and maintenance. In the conditioning process, the feed is fully in contact with steam, and the feed maturity is high, which is beneficial to the production of high-quality animal feed pellets.
3. The feed inlet of the feed factory is designed with a deflector, which can control the flow direction of the material (enter the granulation room or directly discharged from the bottom). It is convenient to avoid the wrong proportion of materials from entering the pelletizing system.
4. The transmission belt adopts high-strength SPB triangle belt, which is stable and reliable in transmission and low in noise.

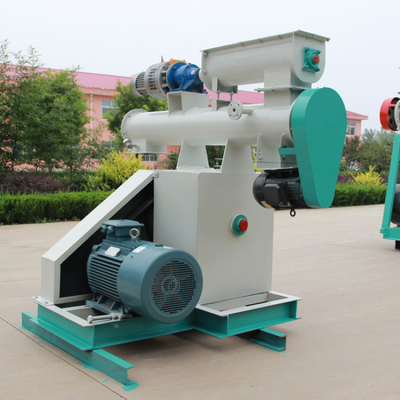

SGS Soybean Meal Ring Die Pellet Machine Small Feed Granulator Machine 1
