Product Details:
Payment & Shipping Terms:
|
| Model: | SZLH | Brand: | SHENGHONG |
|---|---|---|---|
| Purpose: | Feed Machinery | Applicable Objects: | Chicken, Duck, Cattle, Sheep, Etc |
| Capacity: | 8-16t/h | Main Motor Power: | 110/132 |
| High Light: | 16TPH Livestock Feed Mill Equipment,SZLH 16TPH Livestock Feed Mill Equipment,SZLH 16TPH Livestock Feed Mill Equipments |
||

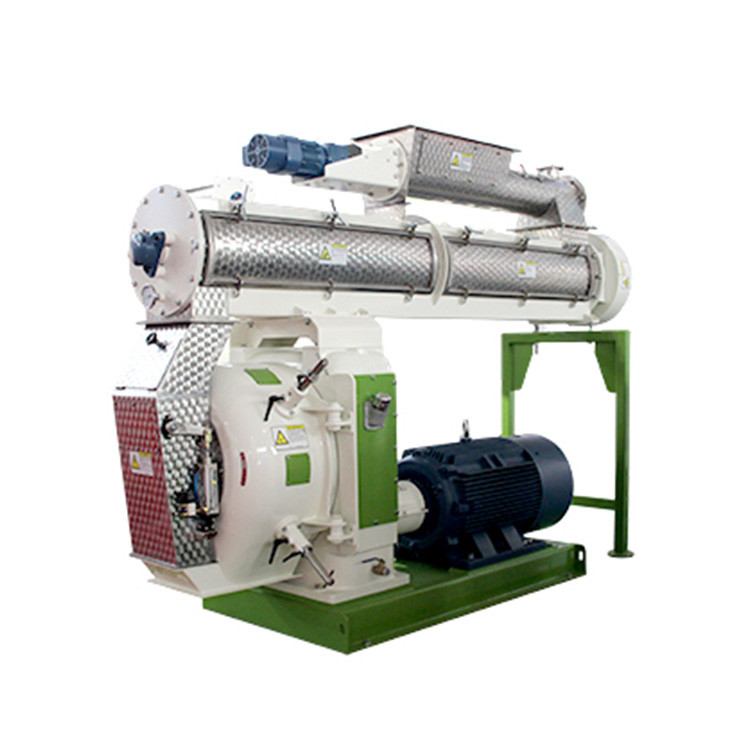

16t/H Poultry Livestock Feed Equipment Feed Pellet Mill With Automatic System
Advantages of livestock feed equipment:
1. Low power consumption of 8-16 tons per hour;
2. imported high-quality bearings, bearing configuration optimization, stable operation of equipment;
3, optimize the parameters of pelleting and conditioning effect, so that the output of pelleting machine increased 20% again;
4, new double head screw die roller gap adjustment structure, easy to operate, fast;
5, the improved feeding scraper makes the material can be evenly distributed to the two pressing areas, the material is more uniform, the equipment runs more smoothly.
Parameter of livestock feed euipment:
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
Open door construction:
Equipped with self-lubricating grease system, it can automatically add grease to roller bearings at regular time and quantitatively, which is more convenient to use and has better lubrication effect.
The application of thin oil cooling and lubrication system outside the machine improves the lubrication and cooling effect of bearings in the transmission system, so that the equipment can run continuously for a long time;
Gear and gear shaft adopts high-quality steel, optimized transmission gear design and advanced processing and heat treatment technology, so that the gear life is longer, transmission effect is higher;

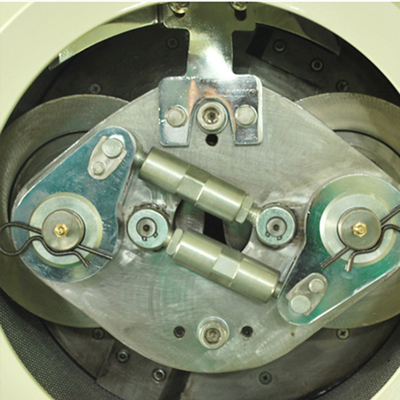

Improved gap adjustment structure
The ring die adopts high quality alloy steel forging billet, imported gun drill and multi-station group to make the die hole forming once, high smoothness; Imported vacuum furnace and continuous quenching furnace combined with heat treatment process, to ensure longer service life of the ring die;
Improved safety pin

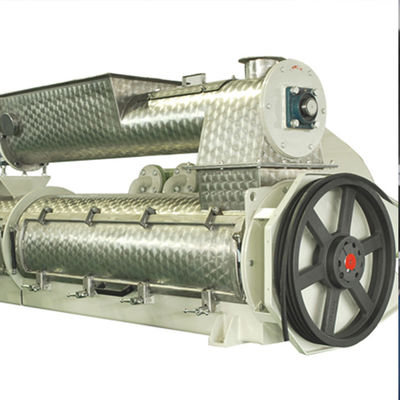

The steam pipeline system selects imported high-quality steam components, and optimizes the pipeline layout and the configuration of steam components to ensure that high-quality steam can be provided for the quenching and tempering system.
