Product Details:
Payment & Shipping Terms:
|
| Type: | Animal Feed Machine | Weight: | According The Model Of The Machine |
|---|---|---|---|
| Certification: | CE SGS COO | Warranty: | 1 Year From Delivery Time |
| Capacity: | 1-10tph | Product Name: | Animal Feed Pellet Machine |
| High Light: | 110KW 10TPH Animal Feed Pellet Machine,110KW 10TPH 10mm Livestock Pellet Machine,110KW 10TPH Livestock Pellet Machine |
||

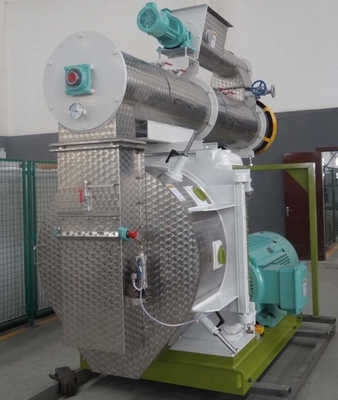

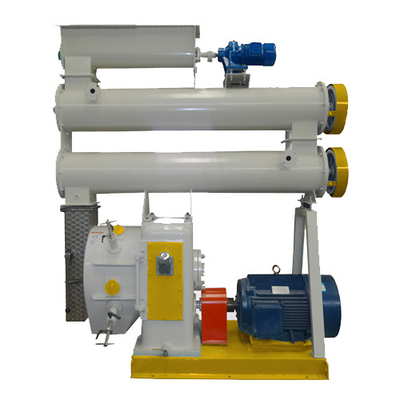

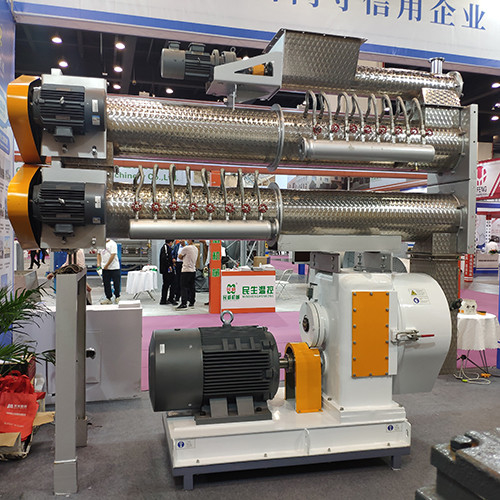

110KW 10TPH Ring Die Animal Feed Pellet Machine for animal feed
| Item | SHPM320 | SHPM350 | SHPM400 | SHPM420 | SHPM508 |
| Capacity | 2-5T/H | 2-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Power of feeding auger | 0.55KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Power of conditioner | 2.2KW | 3KW | 3KW | 5.5KW | 7.5KW |
| Inner diamater of die | 320mm | 350mm | 400mm | 420mm | 508mm |
| Die speed | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM |
| Feeder auger speed | 12-120RPM | ||||
| Conditional speed | 350RPM | ||||
| Pellet size | 2-10mm | ||||
| Roller number | 2 | ||||
| Roller diamater | 140mm | 165mm | 190mm | 206mm | 222mm |
| Pellet ratio of briquetting | ≥95% | ||||
| Percentage of powdered pellets | ≤12% | ||||
| Stability of pellet in the water | ≥20MIN | ||||
| Noise | ≤86db(A) | ≤90db(A) | |||
| Die working temperature | ≤85°C | ||||
| Steam working pressure | 0.1-0.4Mpa | ||||
| Steam consumption t/h | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.5 | ≥1 |
| Steam temperature | 130-150°C |
||||
Product description
1. Frequency conversion feeding to ensure homogeneous material, lengthen and thickening stainless steel materials, dig open door intensity conditioner, more than 2-4 times volume capacity, long curing time, the return rate of feed improve 3-5%, adopt steam injection equipment to prevent the steam reflection.
2. Ring die pellet machine main engine drives, high precision gear, ring die in quick detaching encircling hoop type, output higher 20% than belt drive
3. Equipped with the steam automatic regulatory system to keep refining temperature constant
4. The complete machine transmission parts include electric motor with Switzerland “SKF” high-quality bearing, ensure high-efficiency, stable, and low noise drive
5. Larger type strengthens feeding conditioner in entire stainless steel with frequency speed control, ensuring the high quality of pellet feed.
6. Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
7. International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise, and low machinery failure
8. Adopt an international advanced piping system and import pressure regulating valve.
9. With full stainless steel door, flume, and pull cutter which is convenient, reliable
10. Permanent magnet device with high performance. Customize pellet mill with double layers or three layers.
