Easy Operate Animal Powder Feed Production Line For Making Poultry Feed

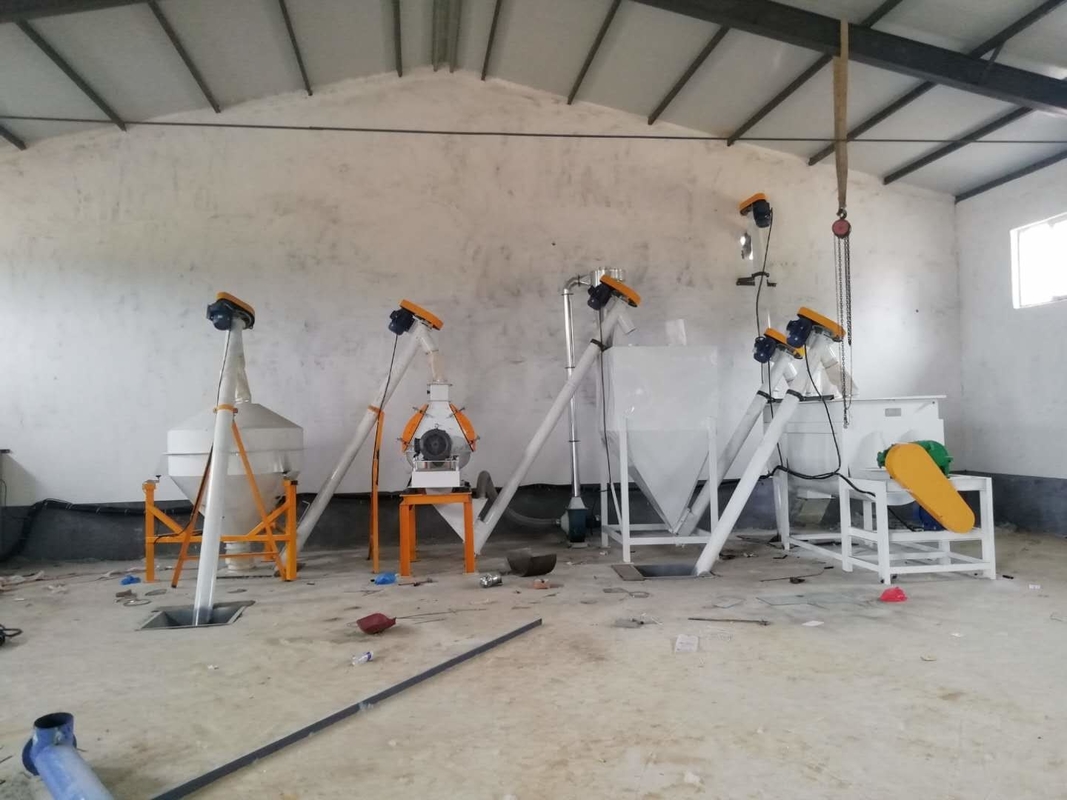

Product description of powder feed production line
The powder feed production line is a complete set of equipment that mainly produces powdered feed. It is composed of crushers, mixers, lifting equipment, dust removal equipment, cleaning equipment, liquid addition and other equipment. The output can be customized to 5-50 tons/hour according to user needs.
Features of powder feed production line
1. Concentrated feed processing equipment is used to process powdered feed required by livestock, aquatic products, cattle, etc., with an hourly output of 1-50 tons.
2. The technological process consists of feeding, lifting, storage, crushing, mixing, packaging and procedures. The technological process is continuous and reasonable, the performance of each single machine is good, and the operation and maintenance are convenient.
3. There are two types of structure: integral steel frame type and floor type. The overall steel frame layout is compact and beautiful in appearance; the floor type is easy to use and maintain.
4. The large and medium-sized complete set of feed equipment adopts computer to automatically measure the ingredients, with good ingredient accuracy, high degree of mechanization and automation.
Parameter of powder feed production line
| Model |
SFSP56*36 |
SFSP56*40 |
SFSP708*40 |
SFSP112*30 |
SFSP112*40 |
SFSP112*60 |
| Power (kw) |
22 |
37 |
55 |
75/90 |
110/132 |
160/200 |
| Capacity (T/H) |
4-5 |
5-7 |
7-10 |
12-15 |
25-35 |
38-50 |
Advantage of powder feed production line
1. The process design is reasonable, flexible, compact in layout, beautiful in appearance, and capable of producing various feed products.
2. The equipment selection is reasonable, the operating cost is low, the investment is small, and the effect is quick.
3. Dust noise meets environmental protection requirements.
Characteristic of powder feed production line
1. Equipped with dual-shaft paddle mixer, all stainless steel material or the part in contact with the material is stainless steel material;
2. It is suitable for the production of premix feed and additives; the mixing uniformity is high. Various micro-components are diluted and mixed by the mixer for many times, and then enter the biaxial paddle mixer to mix with the carrier, so that the various components are dispersed and mixed uniformly.
3. Less cross-contamination and small residual amount. It is guaranteed by two aspects: one is to use as little conveying equipment as possible, and the other is that the mixer adopts the bottom pneumatic door for discharging, which has the function of self-cleaning and discharging.
4. Less dust in the workshop. A special dust removal system is designed specifically, and the dust removal effect is ideal.
Our company has formed large, medium and small feed production lines, chicken feed production lines, fish feed production lines, pig feed production lines and many other complete sets of equipment of different models and specifications.
