Product Details:
Payment & Shipping Terms:
|
| Model: | SZLH678 | Brand: | SHENGHONG |
|---|---|---|---|
| Purpose: | Feed Machinery | Applicable Objects: | Chicken, Duck, Cattle, Sheep, Etc |
| Capacity: | 10-30t/h | Main Motor Power: | 200/220/250 |
| High Light: | ISO Livestock Pellet Mill,livestock pellet mill 10tpH,30tpH Cow Feed Making Machine |
||

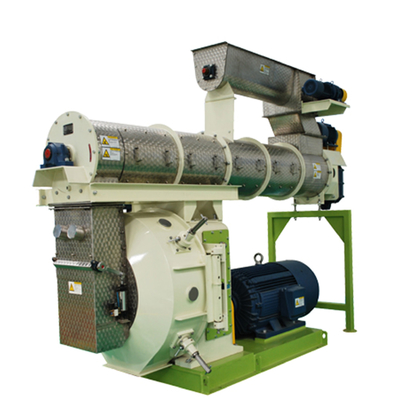

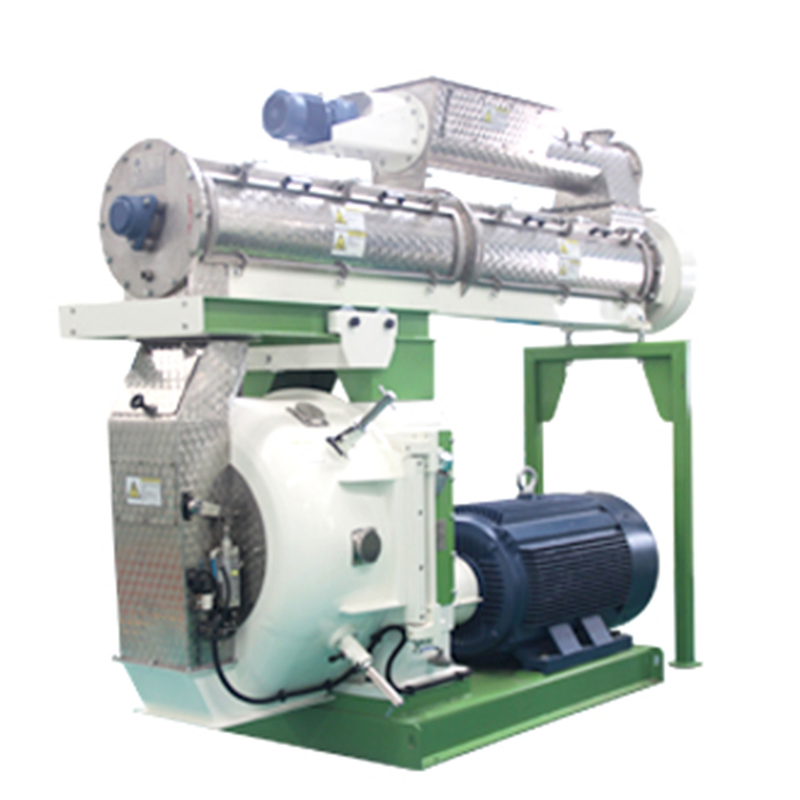

ISO Certified Automatic Livestock Feed Machinery And Equipment
Advantage
High power serpentine spring coupling with strong displacement compensation ability is adopted.
The main bearings are forced to be lubricated by the multi-point cooling lubrication device with thin oil outside the machine.
Can be equipped with die roller clearance non-stop adjustment device;
Use overload protection device and travel switch to ensure safe operation.
All stainless steel with graduated cutter mechanism;
Quick positioning and loading and unloading of ring die, can be equipped with ring die lifting device;
High quality alloy steel ring die produced by international advanced processing technology;
Parameter
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
Suitable for producing all kinds of high quality animal feed and aquatic feed.
Stable continuous operation, low noise;
Stable rotation distance, vibration absorption, vibration isolation.
| Product model | SZLH678 |
| Main motor Power (KW) | 200/220/250 |
| Yield (t/h) | 10-30 |
Maintenance of feed machinery.
1. In the use of feed machinery should always check whether the joints are firm, the use of each part is good, found abnormal conditions to timely inform maintenance personnel for maintenance;
2. Check the rotating parts of the cylinder regularly and keep them clean to ensure flexible movement;
3. The sensor should be checked regularly to ensure that the sensor should be kept in the same plane and the same straight line. The poor accuracy and inflexibility caused by the sensor should be repaired or replaced in time.
4. If it is not used for a long time, the measuring bucket should be removed to protect the sensor;
5. Butter the exposed part of the piston rod of each cylinder to prevent rust stains.
