ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD
Home ProductsLivestock Feed Equipment

Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Muhammad

Best Service , the engineer team very professional , from design to production , delivery and installation, all is best . I felt very satisfied.

—— James Amolo

I'm Online Chat Now

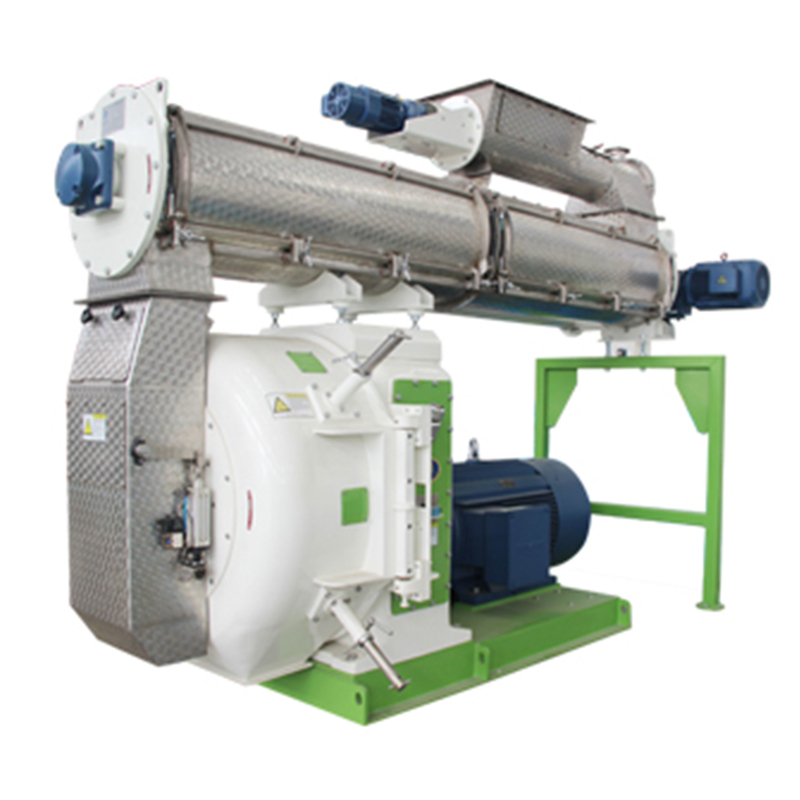

Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine

Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine
Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine

Large Image :  Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine

Product Details:
Place of Origin: Henan, China
Brand Name: SHENGHONG
Certification: CE, ISO9001, BV
Model Number: SZLH
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500-2000 piece
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Model: SZLH768 Brand: SHENGHONG
Purpose: Feed Machinery Applicable Objects: Chicken, Duck, Cattle, Sheep, Etc
Capacity: 10-38t/h Main Motor Power: 250/280/315
High Light:

Stainless Steel Livestock Feed Equipment

,

Livestock Feed Equipment 38TPH

,

10TPH Rabbit Pellet Making Machine

Stainless steel Feed Powder Machine Livestock Feed Equipment output of 10-38t /h



Introduction of livestock feed equipment:



1. Check the tension of each transmission belt to make it fit.



2. Feed pellet machine to prepare a feed machine warehouse for a batch of times. Start the mixing motor first, then start the destruction motor, feed the material without destruction from the secondary hopper, until the end of the processing of all the main and secondary materials and then continue to mix for 5-10 minutes that is the end of a cycle, products bagged, and then the next batch of production.



Parameter of livestock feed equipment:



Model
SZLH250
SZLH320
SZLH350
SZLH420
SZLH508
SZLH678
SZLH768
Main Motor
15/22KW
37/45KW
55KW
110KW
160KW
200/220/250KW
250/280/315KW
Bearing
NSK /SKF
Capacity
1-2T/H
2-3T/H
3-6T/H
8-10T/H
10-15T/H
12-25T/H
15-30T/H
Screw Feeder
1.1KW, 2.2KW, 3KW, 5.5KW, 7.5KW..etc. Frequency control.
Conditioner
Type & Qty is determined by feed type.
Inner diameter of ring die
Φ250mm
Φ320mm
Φ350mm
Φ420mm
Φ508mm
Φ678mm
Φ768mm
Qty. of roller
2pcs
Rate of pellet formation
≥95%
Rate of pellet powdering
≤10%
Noise
≤75 dB(A)



3. The mechanical and electrical wires of feed granules should be firmly insulated and easy to operate. Do not use fuses or fuse wires that do not fit the rated current of the supporting motor of the unit.Stainless Steel Livestock Feed Equipment 10-38TPH Rabbit Pellet Making Machine 0



4. Ensure that the base of the unit is placed horizontally when the unit is installed, otherwise it will simply form unit oscillation.



5. Check the feeding pipe and the connecting parts of the mixing machine to see whether there is any powder leakage appearance, and see whether there is debris in the main material hopper and the booster from the investigation hole, if there is no, it is normal.



6. Check each connection, the bolt is not loose, manual push the shaft, check whether there is a jammed appearance and push is not sensitive, damage machine rotor hammer is not sensitive, reliable.



Suitable for producing all kinds of high quality animal feed and aquatic feed.Stable continuous operation, low noise;Stable rotation distance, vibration absorption, vibration isolation.



Features of feed pellet machine:



Pellet Mill (With 1 Conditioner)

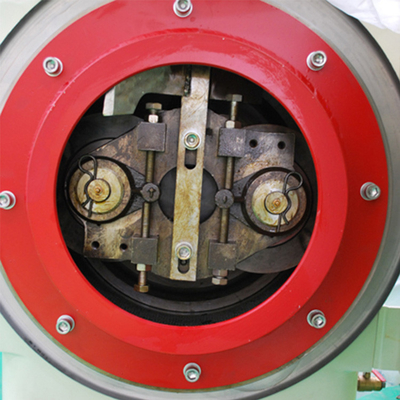

Pellet Machine is used for pressing powder grain material into pellet. It is the core heart of the feed pellet plant. We have different type of pellet machine for choice, like the photo above. This is CPM type pellet machine. Conditioner quantity can be 1pc, 2pcs, 3 pcs...etc, as per need.

Pellet Mill (With 2 Conditioner)
We can supply pellet machine with different quantity conditioner for making different kind of feed. As usual, it demands 1-2 conditioner for livestock & poultry feed. Meanwhile, for aqua shrimp feed, it always request at least 3pcs conditioner, which ensure the material well cooked.
