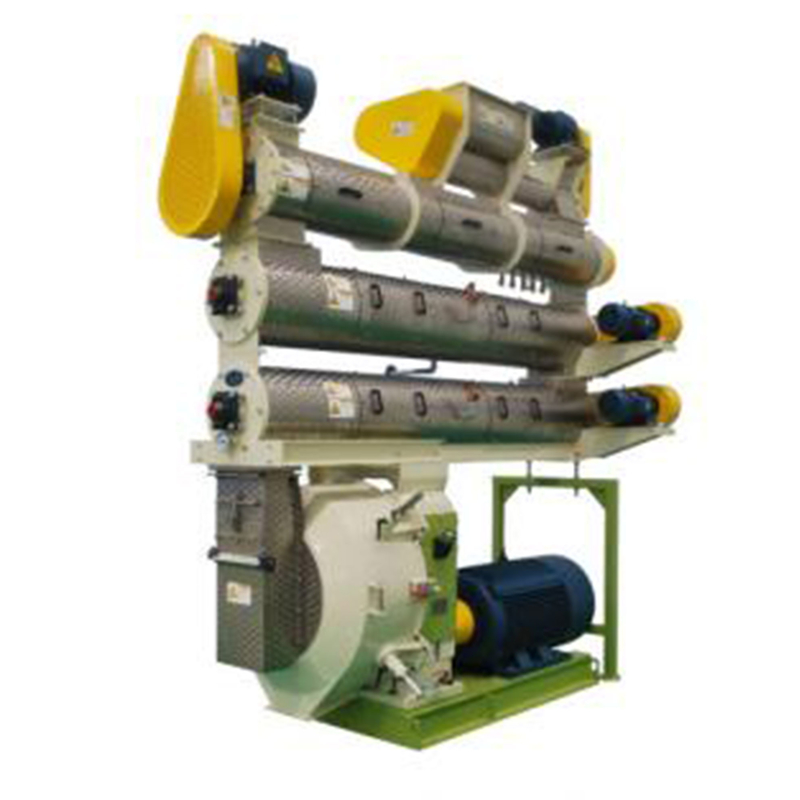

Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery

Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery
Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery

Large Image :  Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery

Product Details:
Place of Origin: Henan, China
Brand Name: SHENGHONG
Certification: CE, ISO9001, BV
Model Number: SZLH
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500-2000 piece
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Model: SZLH660X Brand: SHENGHONG
Purpose: Feed Machinery Applicable Objects: Chicken, Duck, Cattle, Sheep, Etc
Capacity: 1.2-6t/h Main Motor Power: 110/132/160
High Light:

Carbon Steel Feed Production Equipment

,

Widely Used Feed Production Equipment

,

1.2tph livestock feed machinery

Widely used carbon steel livestock feed production equipment manufacturers



Product Description:



Centralized valve control system, reliable steam addition, easy operation;



The main drive and pressing chamber are upgraded and improved, with increased output and better particle quality.



Parameter of livestock feed equipment:



Model
SZLH250
SZLH320
SZLH350
SZLH420
SZLH508
SZLH678
SZLH768
Main Motor
15/22KW
37/45KW
55KW
110KW
160KW
200/220/250KW
250/280/315KW
Bearing
NSK /SKF
Capacity
1-2T/H
2-3T/H
3-6T/H
8-10T/H
10-15T/H
12-25T/H
15-30T/H
Screw Feeder
1.1KW, 2.2KW, 3KW, 5.5KW, 7.5KW..etc. Frequency control.
Conditioner
Type & Qty is determined by feed type.
Inner diameter of ring die
Φ250mm
Φ320mm
Φ350mm
Φ420mm
Φ508mm
Φ678mm
Φ768mm
Qty. of roller
2pcs
Rate of pellet formation
≥95%
Rate of pellet powdering
≤10%
Noise
≤75 dB(A)


Its feeding adopts circular feeding cylinder and frequency conversion feeding, feeder is connected with feeding cylinder arch prevention and ensure uniform feeding;

The mixer uses 3-layer jacket conditioner or biaxial differential conditioner, specially designed blade installation form, rotating speed of the conditioner shaft and steam adding system to ensure that the material can be fully tempered and matured;

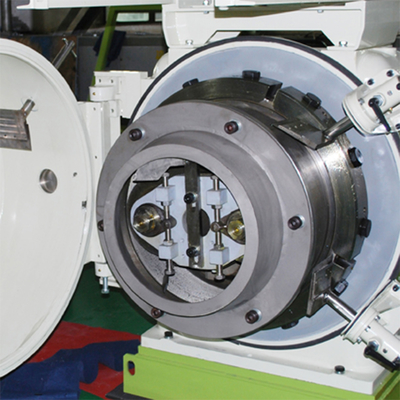

The cutter mechanism is fixed on the box body, no need to exit the cutter when opening the door, the blade material is made of high-speed tool steel or special alloy tip welding, the blade thickness is 2-3 mm, the blade is close to the surface of the ring die, and the blade can be quickly replaced;

Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery 0



Design the special press roller and the surface form of the press roller; The original feeding scraper is improved so that the material is evenly distributed to each pressing area.

Widely Used Carbon Steel Feed Production Equipment Livestock Feed Machinery 1
According to the characteristics of shrimp material design ring mold speed, greatly improve the production capacity of pelletizer and particle appearance quality and internal quality; The chute design conforms to the smooth flow of the material, and adds pneumatic outside haiku material; Automatic control system design and overload protection design of pelletizer.



Our service:



1. Free charge for the production line design.
2. Free charge for your existing plant UPGRADE consult.
3. Trouble shooting service for your existing plant.
4. Free charge for project foundation-preparation drawing.
5. On-Site Professional Installation guide.
6. Free technical service support for after sale.
7. Free procurement service for other goods upon needs.
