Product Details:
Payment & Shipping Terms:
|
| Applicable Industries:: | Breeding Plant, Feed Plant, Food Processing | Key Selling Points: | Long Service Life,Multifunction |
|---|---|---|---|
| Raw Material: | Powder | Key Selling Points:: | Multifunctional |
| Color: | Green Or Blue Or Custom | Condition:: | New |
| High Light: | 200kg/H Broomcorn Small Feed Pellet Machine,200kg/H Broomcorn Feed Pellet Machine,150kg/H Broomcorn Rabbits Feed Pellet Machine |
||
Small Feed Pellet Machine for small feed mills
Introduce:
Small Feed Pellet Machine is frequently driven by electric motor or diesel engine.
It is energy saving pellet machine for making feedstuff for animals such as feed for rabbits, fish, chicken, pigs, sheep, cattle, etc.
A variety of raw materials like all grains such as corn, broomcorn, barley and wheat,etc.can be processed into feed pellets.
Feed pelletizing process is easy in operation and low in cost, with a high survival rate of biomass microorganism bacterium >90%.
Different from electric motor type,diesel pellet mill can be widely used in the regiones which are short of electricity.
Simply turn on the switch, the diesel engine can start up and work independently.
| Model | Capacity(kg/h) | Voltage | Power | Add water(kg) | Dimension |
| 125 | 60-80 | 220V/380V | 4KW | 0-2 | 75*32*70cm |
| 150 | 90-150 | 220V/380V | 4KW | 0-2 | 78*33*77cm |
| 160 | 150-200 | 220V/380V | 4.5KW | 0-2 | 80*34*78cm |
| 210 | 200-300 | 380V | 7.5KW | 0-2 | 100*43*75cm |
| 230 | 300-400 | 380V | 11KW | 0-2 | 118*58*112cm |
| 260 | 400-500 | 380V | 18.5KW | 0-3 | 126*46*115cm |
| 300 | 700-800 | 380V | 22KW | 0-3 | 138*55*125cm |
| 400 | 1000-1200 | 380V | 30KW | 4-6 | 160*80*170cm |
Details and characteristics:

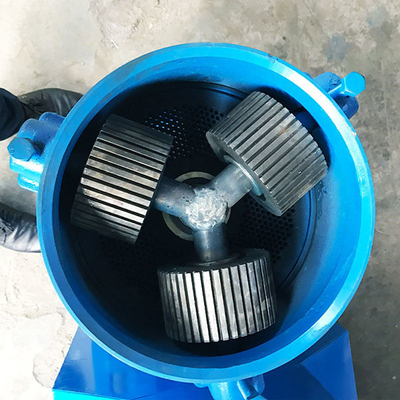

1. Grinding Cavity
Pressure roll and grinding disc made of high quality chromium manganese after high temperature quenching treatment, is ordinary material 10-20 times wear resistance.
2. Adjusting Nut
Adjust the distance between the press roller and the grinding disc. When making particles, be sure to keep the nuts on both sides balanced and adjusted to avoid damage to the press roller and the grinding disc.
3. Fuel Tank Cap
Equipped with oil window and oil ruler can accurately detect the level of oil, it is recommended to add high quality mechanical oil or hyperbolic load gear oil
4. Oil Nipple
Adopt pure copper spillproof nozzle to better protect the spindle bearing (at least once a week is recommended) to regularly add butter maintenance.
Advantage:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.
