Product Details:
Payment & Shipping Terms:
|
| Brand: | Shenghong | Power: | 90-100 - Kw |
|---|---|---|---|
| Product Model: | SZLH400 | Type: | Pellet Machine |
| Customization: | Yes | Output: | 3-12 T/h |
| High Light: | ODM Cattle Pellet Manufacturing Plant,OEM feed mill plant for poultry,100kw poultry feed mill plant |
||

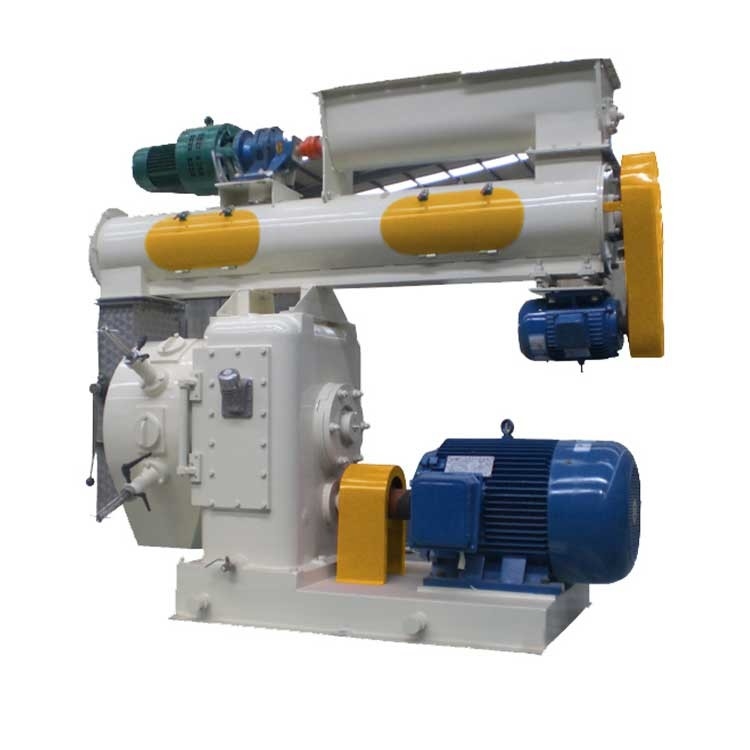

Animal Cattle Feed Pellet Manufacturing Plant Poultry Feed Mill Plant Machine
1, adopt high precision gear direct transmission, high transmission efficiency, stable work.
2, the shaft end of the modulator is specially sealed, using direct steam into the way, the material and steam contact fully.
3. The selection and assembly clearance of main bearings are fully guaranteed from the structural design, and high-quality bearings are selected to fully ensure the long-term stability and efficiency of equipment operation.
4, new type box body, using special casting technology, processed by imported processing center, high precision hole system.
5, the ring mold and the driving wheel adopt three pieces of quick discharge precision casting hoop, easy to disassemble the ring mold.
Parameter:
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
Product features:
1, ring mold feed pellet machine has compact structure, beautiful appearance, convenient installation, operation and maintenance, and reliable work.
2, ring mold feed pellet machine with φ6, φ8, φ10 and other aperture ring mold, users can choose according to different needs, and can be customized for users of different aperture ring mold.
3, the ring mold feed pellet machine adopts frequency conversion speed regulation feeding, the lengthening type conditioner open door cleaning method, and set up organic discharge and overload protection device, holding the hoop type ring mold. Transmission box full imported bearings and oil seals, serpentine spring coupling transmission power.
Ring mould feed pellet machine is suitable for granulation of various raw materials, such as sawn wood, straw, all kinds of grass, sludge and sawn wood mixture, coal and so on
Advantage:
1.1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
1.2.Stainless steel conditioner makes even retention and sufficient cooking effect.
1.3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.
1.4.High quality bearings and motors are adopted to makes operation smoothly.
1.5.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
1.6.The ring die& roller assemblies are quickly assembled and disassembled.
1.7.Applicable for all kinds of high grade animal/livestock/aqua feed. Single, double or three layers of conditioner is optional.
1.8.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
