Product Details:
Payment & Shipping Terms:
|
| Item: | 10 Ton/hr Big Scale Plant Poultry Feed Production Line For Feed Factory | Material: | Carbon Steel |
|---|---|---|---|
| Capacity: | 10 Ton Per Hr | Voltage: | 380V Or Customized |
| Pallet Size: | 3-3.5mm | Application: | Chicken, Goose, Duck, Cow, Sheep, Pig Animal |
| After Sale Service Provides: | 1 Year Wanrranty, Abroad Installation Instruction | Adjustor Material: | Stainless Steel |
| High Light: | 10T/H animal feed production line,animal feed production line 75KW,75KW Goat Feed Making Machine |
||
10 Ton/hr big scale plant Poultry feed production line for feed factory
This pellet feed line are suitable for large and medium-size farms and medium-sized feed mill plant.
The line consists 6 sections
1. Crushing Section
When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.
2. Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc
3. Pelletizing Section
Acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.
4. Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the wood pellets to about 3-4%, thereby making the feed pellets easier to store.
5. Classifying screen
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.
by large and medium feed mills.

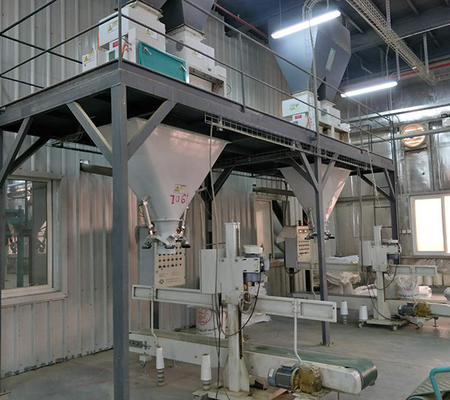

6. Packing Section
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.
Machine Specifications:
| Model No. | Main Power (kw) |
Feeder Power (kw) |
Adjusor power (kw) |
Capacity (Ton/hr) |
| SZLH250 | 22 | 1.5 | 2.2 | 0.6-1.0 |
| SZLH304 | 30/37 | 1.5 | 2.2 | 1-3 |
| SZLH320 | 37 | 1.5 | 2.2 | 2-4 |
| SZLH350 | 55 | 1.5 | 3 | 3-5 |
| SZLH400 | 75 | 2.2 | 3 | 8-10 |
| SZLH420 | 90 | 2.2 | 3 | 10-18 |
Services we provided:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Machine.
Our Advantage:
Loading and shipping:
1. Small machine packed in the wooden box.
2. Production line or large quantity packed in the container.
3. Also could packing according to customers' requests.
4. We accept EXW,FOB,CFR,CIF etc...
5. Accept inspection before shipping or when loading in containers.
