Full Price Chicken Feed Production Line Animal Chicken Feed Making Machine
Product description of chicken feed production line
Our small poultry feed processing plant can make corn, beans, soy milk, straw, grass, chaff and other crushed products into feed pellets for rabbits, pigeons, laying hens, ducks, broilers, pigs, etc.
The animal feed pellet production line is composed of hammer crusher, feed mixer, pellet machine, conveyor, cooler and packaging machine. It is widely used in small and medium-sized farms to produce animal or poultry feed pellets of different sizes.
Parameter of chicken feed production line
|
Model
|
SZLH250
|
SZLH320
|
SZLH350
|
SZLH420
|
SZLH508
|
|
Power(KW)
|
22
|
37
|
55
|
110
|
160
|
|
Capacity(T/H)
|
1
|
2-4
|
5-7
|
8-10
|
15-20
|
|
Inner dia(mm)
|
250
|
320
|
350
|
420
|
508
|
|
Pellet size(mm)
|
2-8
|
2-8
|
2-18
|
2-18
|
2-18
|
Features of chicken feed production line
1. The feed processing production line has large investment in fixed assets and consumption of raw materials, large production scale, high labor productivity, and high value creation of output value. It is a form of feed processing and production organization with high labor efficiency.
2. The feed processing production line is an organic combination of multiple feed conveying equipment, processing equipment, electrical gas control components, etc. according to the needs of advanced feed processing technology. The equipment is highly automated and closely related to each other. The feed production line equipment can run continuously for 24 hours in three shifts. If a piece of equipment or a component fails, it will cause the entire production line or a certain processing and production link to stop production.
3. Although the feed production line is simple to operate and employs fewer people, the management and maintenance of feed machinery and equipment has a high technical content.
Therefore, to ensure that the feed processing production line equipment is always in good working condition, it is necessary to strengthen the management of feed machinery and equipment, and strictly control the occurrence of controller failures, so as to achieve the purpose of reducing equipment maintenance costs. Extend the service life of the feed production line system.
Flowchart of chicken feed production line:
1.Crushing Section
When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.
2.Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc

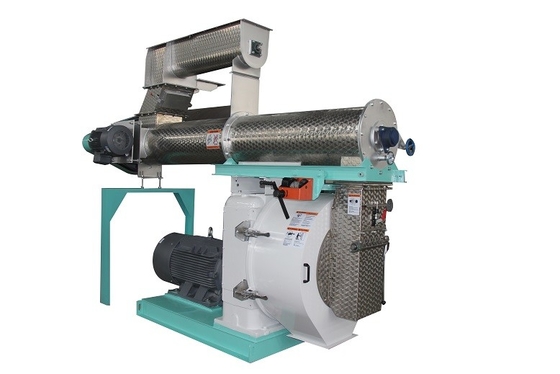

3.Pelletizing Section
Acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.
4.Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the wood pellets to about 3-4%, thereby making the feed pellets easier to store.
5.Classifying screen
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.
by large and medium feed mills.
6.Packing Section
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.
Our after-sales Service:
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5. Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7. Providing technical exchanging.
