Product Details:
Payment & Shipping Terms:
|
| Raw Material: | Corn, Straw, Biomass | Power: | 55kw |
|---|---|---|---|
| Pellets Diameter: | 2-12mm | Feeding Way: | Auotmatic Or Semi Automatic |
| Steam Temperature: | 130-150ºC | Motivation Type: | Belt Or Gear |
| High Light: | SGS 2tph Mechanical Cattle Feed Plant,2tph 55kw maize cattle feed plant,Broiler Animal Feed Mill Plant |
||
Poultry feed broiler food pellet production machine 2tph mechanical automatic animal feed processing plant
Introduce:

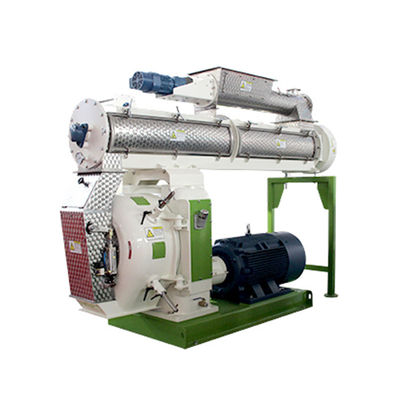

We have five models of automatic animal fodder processing plant designs for your choice. The ring die automatic animal fodder processing plant design is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate, press chamber transmission system, overload protection and electrical control system.This automatic animal fodder processing plant design is the key part of the complete 2tph feed plant machinery.
Parameter of animal feed extruder
|
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH420 |
SZLH508 |
|
Power(KW) |
22 |
37 |
55 |
110 |
160 |
|
Capacity(T/H) |
1 |
2-4 |
5-7 |
8-10 |
15-20 |
|
Inner dia(mm) |
250 |
320 |
350 |
420 |
508 |
|
Pellet size(mm) |
2-8 |
2-8 |
2-18 |
2-18 |
2-18 |
Main machines of feed production line
Mixing machine
Unique design system ensures full airflow balance of feed, suitable for premix, poultry feed, aquatic feed, additives, chemical and pharmaceutical industries.Different types of raw materials are added to the mixer in batches according to different animal formula requirements.Widely used for mixing animal feed and fertilizer powder, granule etc.,various liquid can be added.Mixing time per batch is just 3-6minutes, Now it is widely used in animal feed industry, fertilizer industry, aquatic product breeding, chemical industry, aquatic product breeding, medicine and so on.
Pellet machine
Pellet machine is the key equipment of production the feed pellet, Widely used in feed factory , farm and other.
1.Flat Die Pellet Mill Mainly suitable for medium-and small-scale farming professional households and other processing of various livestock and poultry and aquatic pellet feed can reduce the cost of aquaculture.
2.Feed machine can be used for raising rabbits, chickens, ducks, geese, fish, pigs, cattle, sheep, aquatic products and so on.
Cooling & screening machine
The pellets from the granulator at a temperature of 70 ° C to 90 ° C to a temperature slightly above room temperature of 3 ° C to 5 ° C, and can be reduced to safe moisture (≤ 12.5%), which is convenient for pellets. Transportation, storage and storage.The screening machine can screened out complete granules, and unqualified granular products will be separated for secondary granulation, effectively reducing waste.
The livestock feed pellet production plant is specially designed for small scale pellet production, which can meet the daily requirement of a small pellet production plant or family use. The livestock feed pellet production line is one foundation frame,saving much space and lowering your pellets production costs. Patented pelletizing technology guarantees a flexible applicability, satisfying customers with different requirements. Henan Strongwin can also customize feed pellet plants with other capacities.
Advantage:
Increase the animal feed digestibility for 12%, reduse the material waste 10%
All Stainless steel feeding inlet and adjustor, spiral feeding is even, particle surface is smooth.
Diameter from 1.5mm to 12mm, can be customized.
