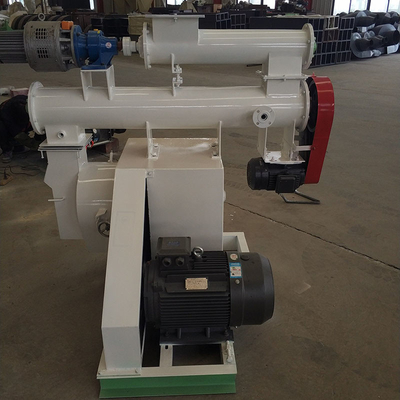

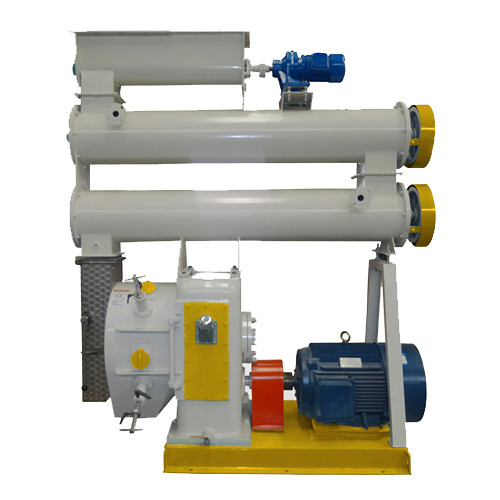

Livestock Animal Feed Pellet Mill Sheep Feed Making Machine

Name: Livestock Animal Feed Pellet Mill Sheep Feed Making Machine
Brand: Shenghong
SKU: SZLH250
Price: 5999 USD
Availability: InStock
Rating: 4.6 (107 reviews)

Large Image : Livestock Animal Feed Pellet Mill Sheep Feed Making Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shenghong
Certification:	BV, SGS, ISO9001, CE
Model Number:	SZLH250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 5999-29999
Packaging Details:	20GP, 40GP, 40HQ
Delivery Time:	within 15 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Chinese Supplier Livestock Animal Feed Pellet Machine Sheep Feed Making Machine	Raw Material:	Carbon Steel
Dimension:	326011002200mm	Voltage:	380V, 50hz, 3 Phase
Screw Diameter:	155mm	Application:	Animal Feed Pellet Machine
High Light:	Livestock Animal Feed Pellet Mill , Sheep Animal Feed Pellet Mill , Livestock Sheep Feed Making Machine

Chinese Supplier Livestock Animal Feed Pellet Machine Sheep Feed Making Machine

Theoretical Foundation of Ring Die Feed Pellet Mill

Pelleting process actually occurs when the feed materials are pressed between the ring die and the rolls. The mash materials under high pressure bring about mechanical interlocking and increased adhesion between the materials to form inter-molecular bonds in the contact area. The binding mechanisms under high pressure can be divided into adhesion and cohesion forces, attractive forces between solid particles, and interlocking bonds. Another important binding mechanism is van der waals’ forces. They are prominent at extremely short distance between the adhesion partners. To obtain this type of bond, compression and shear forces must always act on the system. The strength of the resulting agglomerate depends only the type of interaction e material characteristics.

Parameter

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Output	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Screw Feeder rotational speed	12-120RPM
Conditioner rotational speed	350RPM
Pellets diameter	2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Number of roller	2
Roller outer diameter	140mm	165mm	190mm	206mm	/
Pellets shaping rate	≥95%
Pellets stability in water	≥20Min
Noise	≤90dB(A)
Roller working temperature	≤85℃
Steam working pressure	0.1-0.4Mpa
Steam temperature	130-150℃
Dimension(m)	2.312.1	3.21.11.7	3.21.31.9	3.51.31.9	3.51.52.9

Application

The feed pellet machine can add various additives and drugs to the pelleted feed, and the nutrient loss is extremely small. Dry in and dry out, convenient for sealed storage, and can kill pathogenic microorganisms and parasites, and ensure the quality of feed, which can be used for raising rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc. It is a pellet feed processing equipment specially designed for rural breeding professional households and small farms.
