Carbon Steel Animal Feed Pellet Machine Feed Pellet Making Machine

Name: Carbon Steel Animal Feed Pellet Machine Feed Pellet Making Machine
Brand: Shenghong
SKU: SZLH250
Price: 5999 USD
Availability: InStock
Rating: 4.7 (147 reviews)

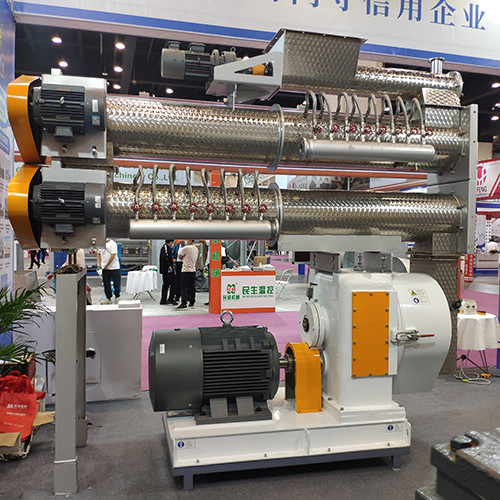

Large Image : Carbon Steel Animal Feed Pellet Machine Feed Pellet Making Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shenghong
Certification:	BV, SGS, ISO9001, CE
Model Number:	SZLH250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 5999-29999
Packaging Details:	20GP, 40GP, 40HQ
Delivery Time:	within 15 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Animal Feed Pellet Machine Manufacturer Feed Pellet Making Machine	Raw Material:	Carbon Steel
Dimension:	326011002200mm	Voltage:	380V, 50hz, 3 Phase
Screw Diameter:	155mm	Application:	Animal Feed Pellet Machine
High Light:	Carbon Steel Animal Feed Pellet Machine , Carbon Steel Feed Pellet Making Machine , 5T/H Animal Feed Pellet Machine

Animal Feed Pellet Machine Manufacturer Feed Pellet Making Machine

Introduction:

Animal feed pellet machine is the main feed machinery product produced by our factory at present. This machine is a feed pellet machine designed by our factory's technicians, who have studied and improved over many years' production experience, carefully manufactured feed pellet machine, selected gears as transmission, avoided slippage of belt drive and abrasion of belt too fast. The feed pellet machine belongs to feed pellet machine equipment.

Parameter

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Output	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Screw Feeder rotational speed	12-120RPM
Conditioner rotational speed	350RPM
Pellets diameter	2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Number of roller	2
Roller outer diameter	140mm	165mm	190mm	206mm	/
Pellets shaping rate	≥95%
Pellets stability in water	≥20Min
Noise	≤90dB(A)
Roller working temperature	≤85℃
Steam working pressure	0.1-0.4Mpa
Steam temperature	130-150℃
Dimension(m)	2.312.1	3.21.11.7	3.21.31.9	3.51.31.9	3.51.52.9

Application

Simple structure, wide applicability, small floor area and low noise.

Powdery feed and grass meal can be granulated without or with a little liquid.

The pellets made by the feed pellet machine have high hardness, smooth surface and full maturity, which can improve the digestion and absorption of nutrients and kill common pathogenic microorganisms and parasites. They are suitable for feeding rabbits, fish, ducks and experimental animals, and can obtain higher economic benefits than mixed powder feed.

The feed pellet machine has a variety of aperture moulds, suitable for granulation of different materials, and achieves the best result.

It can adapt to different materials and ensure the pressing effect. Compression molding of sawdust and corn straw requires a lot of pressure. In the granulating equipment, the roller component is the central part of the whole equipment. The company uses high-quality alloy steel to improve the service life of rollers.
