Chicken Poultry Cattle Livestock Complete Animal Feed Pellet Making Production Line
Product description:
This line is our company popular sales animal pellet feed making plant,it can process all kinds of grain feed into pellet feed,use to meet customer feeding chicken,duck,pig,cattle,rabbit,sheep,etc feed pellet demand. The feed pellet making line production capacity around 1-1.5t/h, 3-5t/h, 8-10t/h, 20t/h,30t/h 50t/h. During pellet line produce pellet feed,it also can also produce mash feed for chicken or pig feed,output 1.5-60t/h.

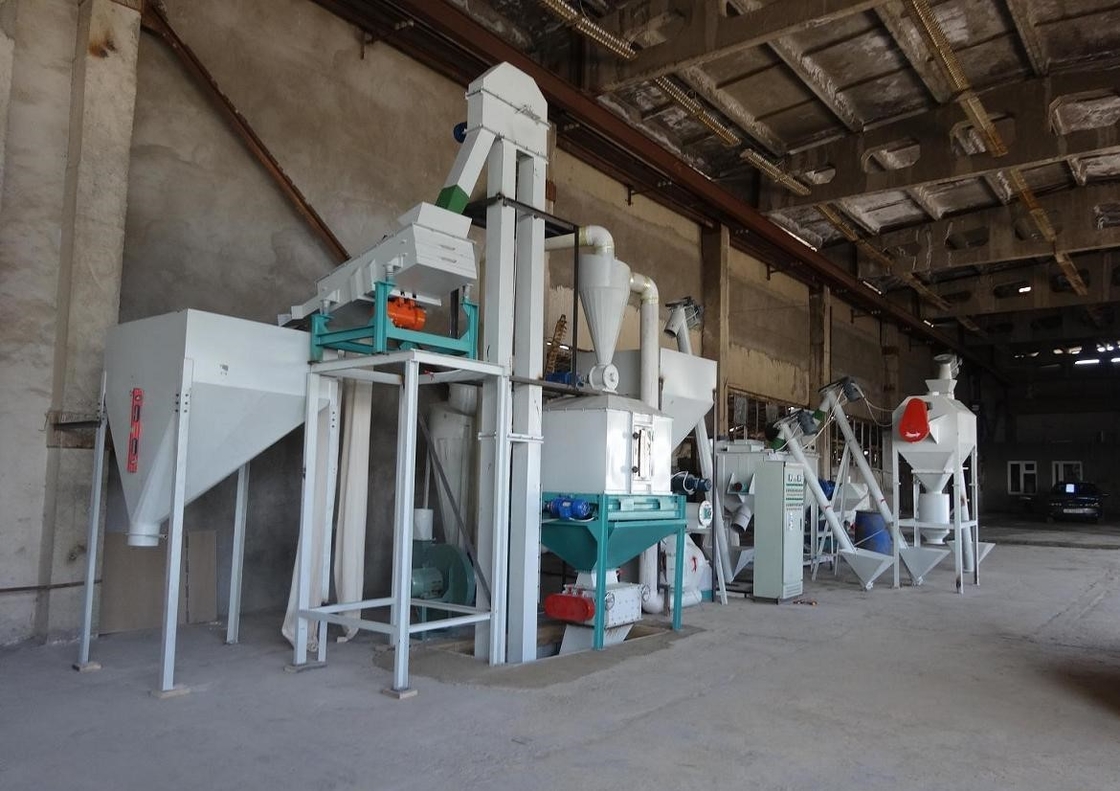

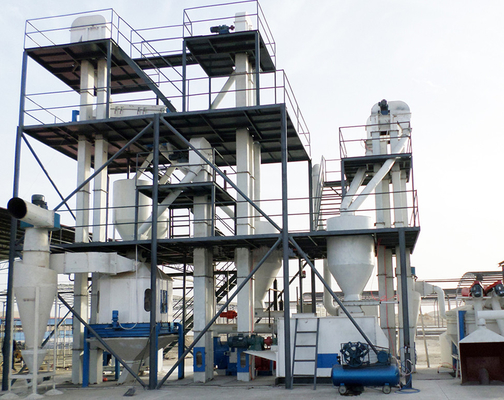

The Machine line is complete line, first the grain storage silo for storing the material, then cleaning the grain ro prepare for next processing, the cleaning material go to the crusher, after crusher, then go to the mixer, the mixing material go to the pellet machine, the pellet go to cooling machine, then through the crumble to get the feed, then go to the sifting to sieve the crumble feed, to get the uniform pellet, then go for packing machine.
Parameter:
|
|
Main power
|
|
Ring die inner Diameter
|
Pellet size mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Process of animal feed production machine:
1. Hammer Mill:
Widely used in feed mills, food factories, livestock farms, etc;
Used for crushing various kinds of pellet raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it's an ideal general type hammer mill;
Rotor has passed high precision balance test; small vibration and long service life;
The hammer, screen and pin axle have gone through special heat treatment; they have a long service life and high crushing effect;
The operating door has a self-locking mechanism, convenient, safe and reliable.
2. Feed Mixer:
HJJ series of horizontal ribbon mixer is suitable for concentrated feed, the full price of powdered feed mixing.
Specially designed nesting institutions open angle, rapid discharge, fast discharge, small residues.
Double helix ribbon hybrid mixed in no dead ends, short cycle.
Designed with liquid oils to add pipe.
Pneumatic or manual door opening mechanism, convenient and reliable.
The novel structure of the rotor gap between the rotor and the casing can be adjusted to near zero.

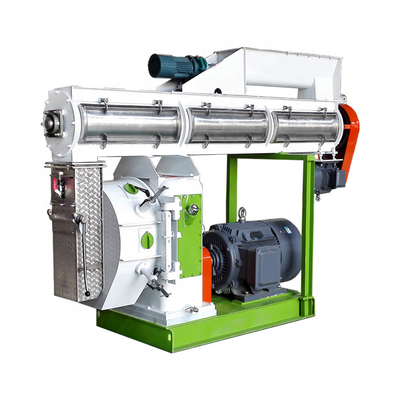

3. Feed Pellet Machine :
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
4). Counter Flow Cooler & Screen
Adopt counter-flow cooling theory, the pellets cooling fully and evenly;
Adopt unique vibrate materials discharging institution, discharging evenly, no residue;
The pellets after cooling, the temperature not higher room temperature 3-5 degree;
Unique arc-shaped cooling bin, no cooling dead corner.
