Chicken Cattle Horse Poultry Animal Feed Production Machine With Feed Pellet Machine
Product description:
This line is our company popular sales animal pellet feed making plant,it can process all kinds of grain feed into pellet feed,use to meet customer feeding chicken,duck,pig,cattle,rabbit,sheep,etc feed pellet demand. The feed pellet making line production capacity around 1-1.5t/h, 3-5t/h, 8-10t/h, 20t/h,30t/h 50t/h. During pellet line produce pellet feed,it also can also produce mash feed for chicken or pig feed,output 1.5-60t/h.

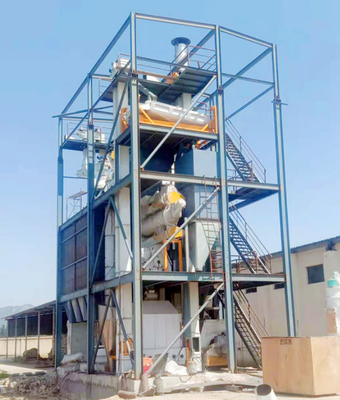

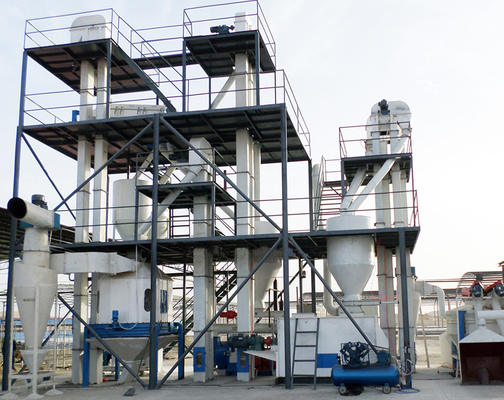

The Machine line is complete line, first the grain storage silo for storing the material, then cleaning the grain ro prepare for next processing, the cleaning material go to the crusher, after crusher, then go to the mixer, the mixing material go to the pellet machine, the pellet go to cooling machine, then through the crumble to get the feed, then go to the sifting to sieve the crumble feed, to get the uniform pellet, then go for packing machine.
Parameter:
|
|
Main power
|
|
Ring die inner Diameter
|
Pellet size mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Process of animal feed production machine:
(1). Raw Material Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.
(2). Feed Material Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.
(3). Feed Pelletizing Process:

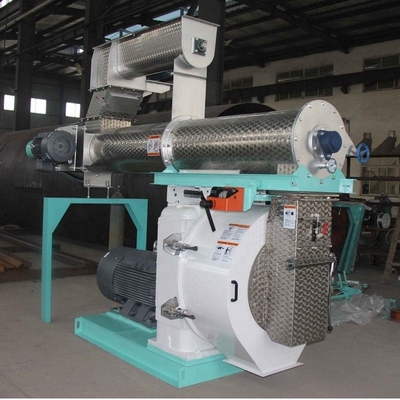

Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.
(4). Feed Pellet Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
(5). Feed Pellet Crushing Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
(6). Feed Pellet Screening and Grading Process:
The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
(7). Feed Pellet Packing Process:
The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.
(8). Automatic PLC Control System:
With the automatic PLC control system, the production line is with high efficiency and convenient operation.
