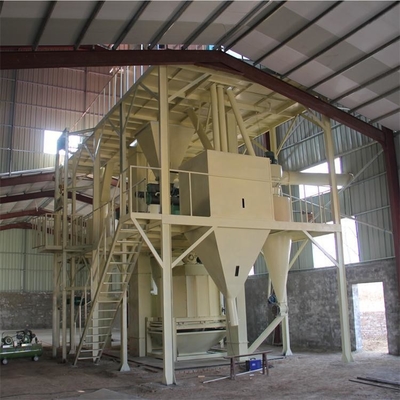

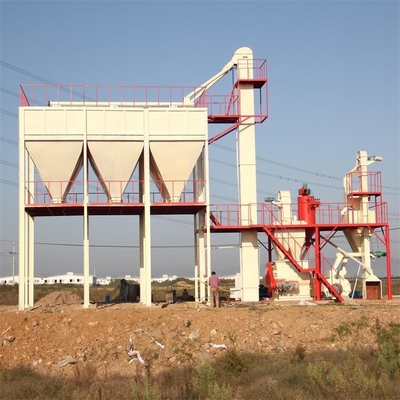

1. Feed Material Auto Batching and Mixing Process
Dosing/Batching designs formulations according to the nutritional needs of different animals, using specific device to accurately weigh the various ingredients. Mixing is an operation in which various feed ingredients are metered and blended under external forces to form a uniform distribution. This process adopts two batching scale and a number of batching bins, of which the micro ingredients are manually added equipped with check weigher. After batching of material ingredients is completed, then enter into the mixer for mixing, and finally the material is output through the conveyor and elevator.
Weigh equipment:batching scale, batching accuracy≤3‰.
Mixing equipment:mixer SHSJ4, 30KW, 2000kg per batch, capacity 20-30T/H.
Mixing speed is short, the mixing cycle is short, 30-120 seconds / batch; mixing uniformity is high, CV ≤ 5%, and does not produce segregation;
machine mixing process is moderate, loading variable range;
Expected to meet the environmental requirements; can be equipped with compressed air cleaning system, the residue to a minimum level;
can be customized for special atomization spray system; add molasses , Grease and so more uniform;
2. Feed Pelletizing Process
Designed from the CPM models, Europe and the United States box.
The main drive uses high precision gear drive, the output is about 20% higher than the belt drive type.
Selection of imported high-quality bearings, oil seals, to ensure that the machine running efficient, stable, low noise.
Feeder made of stainless steel, by using frequency control motor to ensure that the quality of particles discharged.
Single Conditioner or double conditioners can be choosed, made of stainless steel, to precook raw materials before pelletizing.
The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
Ring mold lifting device, gear box gear oil automatic cooling system.
3. Feed Pellet Cooling and Crumbling Process
Feed Pellet Cooling process
The latest octagonal cooling box design, no cooling dead ends. The use of closed feeder feed, into the air area, cooling effect is significant.
Discharging material evenly and evenly stacked in the cabin.
The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, with small residues.
Low energy consumption, easy operation.
After cooling the finished product temperature is not higher than room temperature+3 ºC ~ 5 ºC, suitable for the cooling of granular materials.
Feed Pellet Crumbling Process
Diameter of feed pellet can be customized by the different die mould hole, but length can be also adjusted by the feed pellet crumbler machine. Roller type feed pellet crumbler is the ideal equipment for feed pellet crushing. Double-roller feed pellet crumbler is suitable for crushing feed pellet, such as chicken feed, duck feed and goose feed etc.
4. Feed Pellet Screening and Grading Process
Combination of the circle, oval, straight three kinds of movement, screening effect is good. Screen ship drive with belt drive, emphasis on balance, low noise.
Screen tail support for the improved elastic support, vibration, low noise. Strengthen the base to ensure a more balanced operation of the equipment.
5. Feed Pellet Packing Process
High-precision weighing indicator, import PLC,high-precision analog load cell composed of weighing control system.
Applicable to materials with poor mobility. In the weighing mechanism, the hopper on the system with a suction port, can effectively control the spill of equipment dust to ensure that the dust concentration in the working environment, and can make the scale of the body pressure to maintain balance with the outside world, to avoid the air flow weighing accuracy influences.
Packing accuracy: 0.1% Packing range:5-50kg / bag
