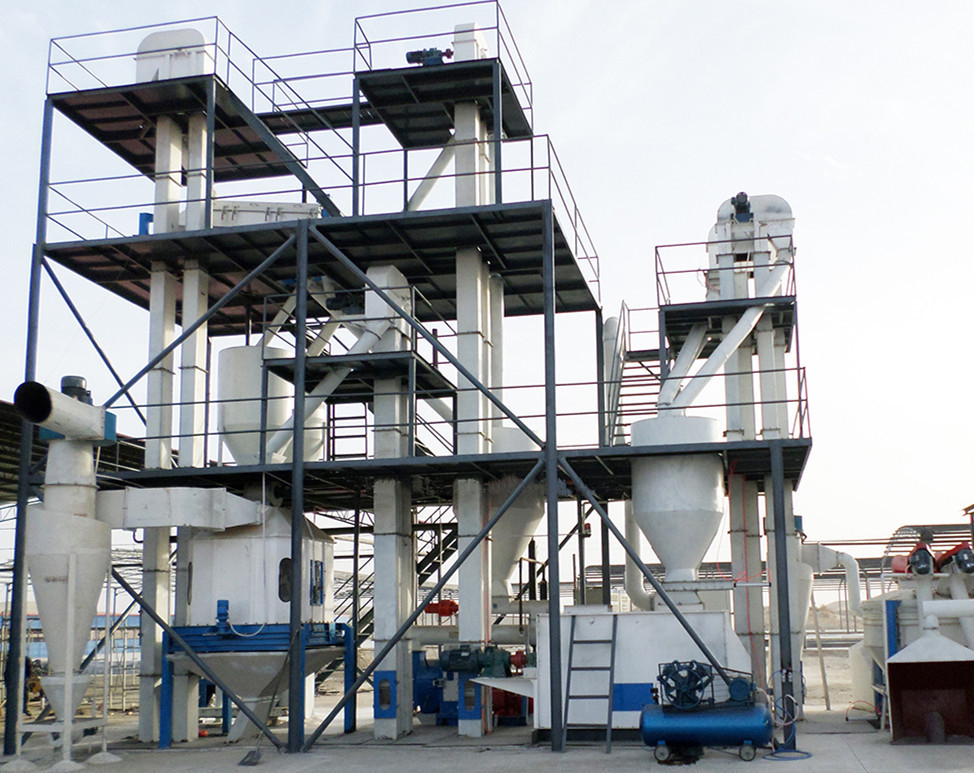

Chinese Supplier Animal Feed Production Machine Feed Production Plant
Introduction:
The feed production line plays for feed industry to produce pellet or powder feed for aqua, livestock and poultry. We are manufacturing animal feed making machine, for example, Chicken feed making machine, pig feed making machine, cattle feed making machine, fish feed making machine, poultry feed making machine for exportation.
Widely used in animal husbandry and aquaculture, medium farms, feed mills, chickens, ducks, fish, rabbit, cow, sheep, pigs, dogs, birds, etc., than the mixed powder feed can obtain higher economic benefits.Can also be used in brewing, sugar, paper making, medicine, cigarette factory in sectors such as organic waste granulation, again is the preferred breeding industry, chemical sector, the ideal equipment.
Features:
1. With reasonable technology, homogeneous grinding particles, high capacity and low energy consumption, it can produce 1000-40000 tons mash and pellet feed per shift annually.
2. Modular Structure: The plant is compact, which occupies less floor space and has low requirement on the mill tower, also needs low investment in civil works. This structure is convenient for assembly and disassembly, facilitates the shipment and installation
3. High accuracy dosing system with centralized control: the analogue panel is adopted. All machines can be interlocked and safety, alarm device is available. The operation is simple and convenient
4. Wide applicable scope: The plant can produce both poultry & livestock feed and fish feed and is applicable for medium and small sized feed mills.
Parameter:
|
|
Main power
|
|
Ring die inner Diameter
|
Pellet size mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Feed production line process:
Step 1. Raw materials receiving and cleaning process ---
Mainly used for the material of corn stalks, stones, rope head, branches, corn cob, sand, dry grains and other sundry cleaning and screening.
Step 2. Crushing process ---
This process is mainly used to crush to raw materials into powder.We have many kinds of hammer mills for your choice: water drop hammer mill, multifunctional hammer mill and 9fq hammer mill etc
Step 3. Mixing process ---
The process is used to mix the crushed materials with higher uniformity.The feed mixer we have are single shaft double screw mixer, double shaft paddle mixer,vertical mixer.

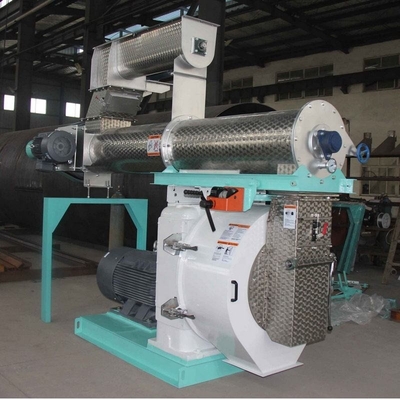

Step 4. Pellet making process ---
We have five models of feed pellet mill for your choice. This process is to press the pellets out.
Step 5. Pellet cooling process ---
The newly pressed pellets are very high in temperature. This process is to cool the pellets to ±3-5℃ of the room temperature.
Step 6. Pellet crumbling process ---
This process is mainly to crush the big pellets into small ones. It is mainly used for chicken feed pellet line.
Step 7. Sifting process ---
vibratory sizing sieve and plenary rotary sizing sieve. This process is mainly to sort out the inappropriate pellets and powder and send the standard pellets to next process.
Step 8. Packing process ---
Packaging machine. This process is to pack the pellets into bags which is convenient for storage and transportation.
