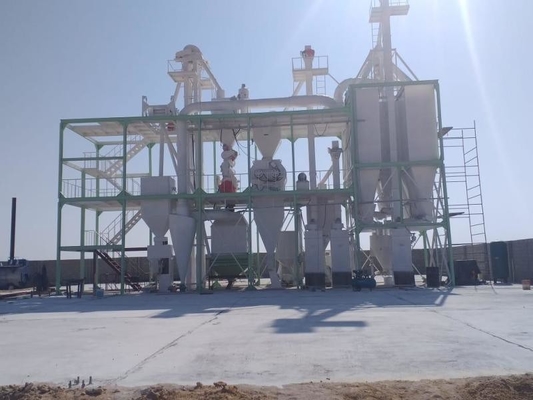

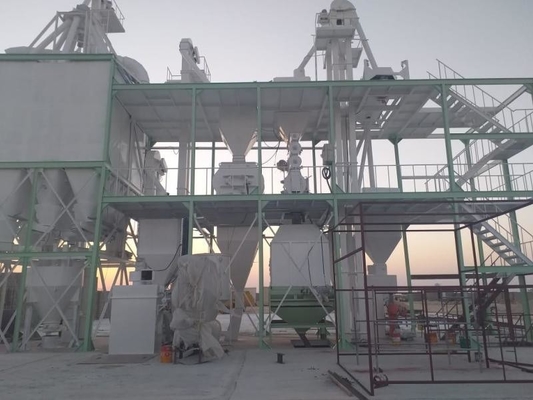

415V Animal Feed Production Machine 10 T/H Chicken Feed Making Line

(1) Raw material crushing section:
Feed pulverizers can pulverize raw ingredients to the desired particle size. Different grinders have different degrees of grinding. We offer four types of feed mills. Hammer mills are suitable for small and medium feed pellet mills. Large and medium-sized feed pellet mills typically use wide-chamber fine mills and drop hammer mills. The superfine feed mill is designed for crushing special aquatic feed raw materials.

(2) Feed mixing section:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing can result in reduced ration uniformity, which can affect feed pellet quality. We offer two types of high-efficiency feed mixers: twin shaft mixers for mixing powdered or granular materials and spiral belt mixers for mixing powdered materials. Both can be equipped with an atomizing spray system to add the required liquid to improve the quality of the feed pellets.

(3) Feed pelletizing section:
Feed pellet machine is the main equipment of the whole feed production line. There are two common types of feed pellet machines: ring die feed pellet machines and flat die feed pellet machines. If you want to produce large batches of feed pellets, a ring die feed pellet mill is ideal. If your needs are smaller, you can choose a flat die feed pellet mill. In addition, we also supply aquafeed pellet machines for pressing fish feed pellets and shrimp feed pellets, etc. If you have more questions about your custom feed pellet production requirements, please feel free to leave a message or email for more support.

(4) Feed pellet cooling part:
The feed pellets extruded by the feed pellet machine are hot and moist. They cannot be immediately crushed, sifted or packaged. Counterflow feed pellet coolers are designed to cool or dry feed pellets. It lowers the temperature and moisture of the feed pellets in preparation for the following parts.

(5) Feed particle crushing section:
Different poultry, livestock or aquafeed pellets have different sizes. Some large ones should be smashed into small ones. Drum type feed pellet mill is the equipment for crushing feed pellets. Double-roller feed pellet mill is suitable for crushing poultry feed, such as chicken feed, duck feed, goose feed, etc. The three-roller feed pellet mill is suitable for crushing fish feed, shrimp feed and other aquatic feed.

(6) Screening and grading part of feed particles:
Crushed feed pellets vary in size and may contain some powder. Rotary classifier screens can be used to screen and classify feed particles. Qualified feed pellets can be obtained after processing without fine powder.

(7) Feed pellet packing section:
Feed pellets should be packaged for transport, storage or sale. Automatic weighing and packaging machine can automatically carry out high-precision weighing and packaging of particles.
