Product Details:
Payment & Shipping Terms:
|
| Product Name: | Animal Feed Production Machine | Voltage: | 400V/380V/415V/600V |
|---|---|---|---|
| Feature: | High Efficiency Low Cost | Usage: | Animal Feed Pellet Machine |
| Color: | Clients' Requirement | Dimension(l*w*h): | Actual |
| Power: | 132/160 Kw | Capacity: | 10-18t/h |
| High Light: | Cow Feed Pellet Production Plant,Animal Feed Production Machine 160Kw,Livestock Feed Pellet Production Machine |
||

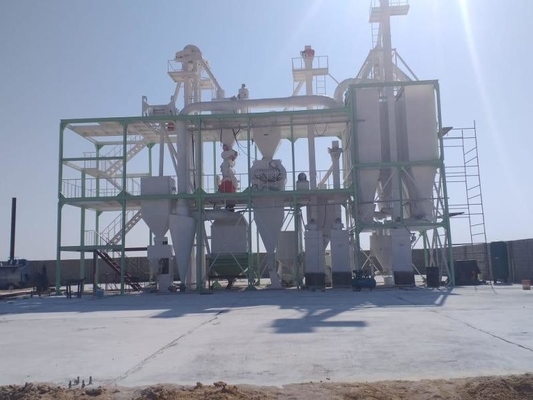

Animal Feed Production Machine Cow Feed Pellet Production Plant
Introduction:
The top grade synthetic pellet feed factory built by our company is a project with an annual production of 10,000-300,000 tons. Its technological processes are as follows: raw material feeding, single-point precipitating, scraper conveying, hoisting, raw material cleaning, impurities removing, preliminary mixing, coarse and fine grinding, computer-controlled batching, effective fine mixing, quality conditioning, granulating with assured quality, pellet curing, cooling and drying, pellet crushing, screening, products packaging etc.. Centralized monitoring, assisted by the segmentation control of main section sites, is conducted by the central control room in electrical control. On the basis of the users' demand, the operator can adopt computerized distributed control system. The start-up and shut down of equipment installed in each segment are controlled by PLC. Meanwhile, the operation and failure warning of equipment in each segment will be dynamically displayed in computer and it also has .the function of database management. The unit is scientific in production process, reasonable in its layout, accurate in batching, complete in functions, convenient in operation and maintenance.
Parameter:
|

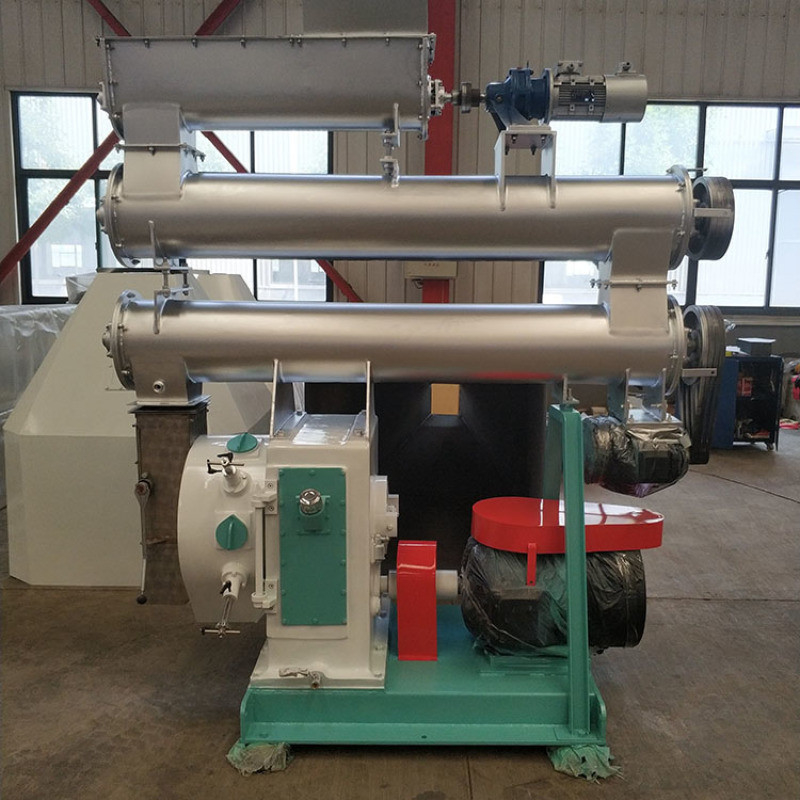

Pellet Mill Model
|
Main power
|
Capacity t/h
|
Ring die inner Diameter
|
Pellet size mm
|
|
SZLH250
|
22KW
|
0.8-1.5
|
250mm
|
2-8
|
|
SZLH320
|
37KW
|
1-4
|
320mm
|
2-8
|
|
SZLH350
|
55KW
|
2-8
|
350mm
|
2-18
|
|
SZLH420
|
110KW
|
3-12
|
420mm
|
2-10
|
|
SZLH508
|
160KW
|
4-20
|
508mm
|
6-12
|
Features:
| 1 | Hammer Mill | Crush raw materials into powder |
| 2 | Feed Mixer | Mixing different kind of powder raw matrial unforly |
| 3 | Feed Pellet Machine | Process powder feed into different size pellets for different animals |
| 3 | Cooling&Screening Machine | Cooling hot feed pellets,screening dust out of pellets, keep pellets cleaning. |
| 4 | Packing Machine | Pack pellets into bags for long times storage and transport, sales. |
| 5 | Control Cabinert | Control all machines of feed pellet production line at production room |
