Factory Livestock Feed Making Machine Production Line For Poultry Animal Cattle
Product description:

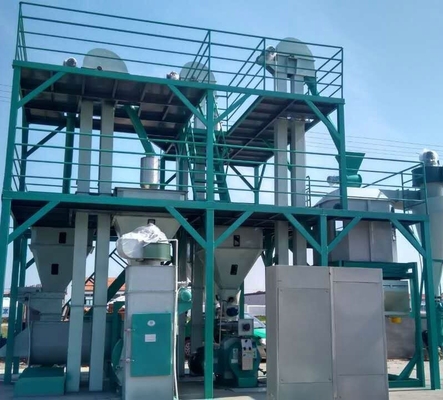

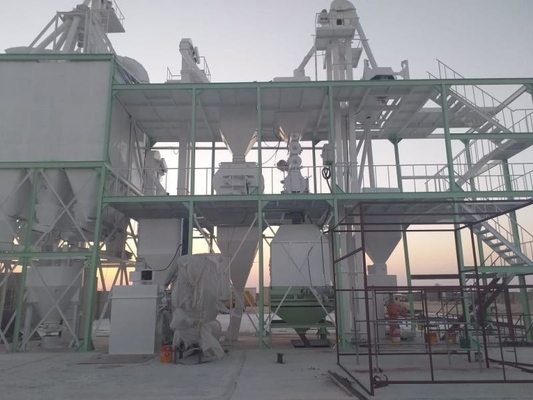

The poultry feed mill machine - For those looking to establish a complete animal feed mill, SHENGHONG produces a comprehensive selection of feed machinery. Special technologies are applied in the manufacture of small poultry feed mill for cattle, pigs, sheep, chickens, ducks, fish, shrimp, and turtles, and even pet food for dogs and cats.
The main equipments in a 3TPH complete poultry feed mill machine include the hammer mill, mixer, extruder, feed pellet mill, dryer, cooler, packing scales as well as other feed mill equipments. Our experienced technical staff are able to provide suitable designs for complete plants of any capacity. From the silo, to pretreatmnet of the raw material, to crushing, mixing, drying, pelletization, cooling, and packing, to solutions for the disposal of wastes, we provide detailed designs to ensure the success of your next feed project.
Parameter:
|
Model
|
SZLH250
|
SZLH320
|
SZLH350
|
SZLH420
|
SZLH508
|
|
Power(KW)
|
22
|
37
|
55
|
110
|
160
|
|
Capacity(T/H)
|
1
|
2-4
|
5-7
|
8-10
|
15-20
|
|
Inner dia(mm)
|
250
|
320
|
350
|
420
|
508
|
|
Pellet size(mm)
|
2-8
|
2-8
|
2-18
|
2-18
|
2-18
|
Process:
Feed materials receiving and cleaning system
Before going into the main equipments,feed raw materials should be cleaned to remove impurities and iron parts in order to ensurethe product quality and normal working of the main equipments.
Feed crushing system
All big size feed raw materials should be grinded to small pieces or powder feed by hammer mill,hammer mill sieve can be2,4,6,8,10mm etc.
Feed mixing system
it is a set of crushing, mixing in one of the feed processing equipment.It is suitable for feed farming in farming and animal husbandry breeding areas,large and medium-sized farms and standard communities.It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
Feed pelletizing system (Including steam conditioning system)
Adopt ring die feed pellet mill produce feed pellet with high production capacity and high grade pellet feed production effect. Ring die feed pellet mill can produce feed pellet,diameter 2-8mm,according to customer demand.
Feed pellet cooling system
Produced feed pellet temperature very high,it can't suitable to pack directly,so need pellet cooler machine cool down pellet feed temperature,The temperature of the pellets can be lowered by a cooler.
Feed pellet crumbling system
Feed pellet crumbler is optional. can use crumbler to broke feed pellet for small chick feed
Feed pellet sieving system
We use rotary screener to sieve the feed pellet. Sieve the qualified pellet feed to sale.
Automatic packing system
Independent packaging system, high precision and package speed,save labor.
