Small Customized Animal Feed Plant For Making Chicken Fish Feed
Product description of animal feed plant
The host is mainly composed of feeding, mixing, granulating, transmission and lubrication systems. The working process is to require a mixed powder with a moisture content of not more than 15%, enter the feed auger from the hopper, adjust the speed of the stepless speed regulation motor to obtain a suitable material flow, and then enter the agitator, stir and steam through the stirring rod Mixing for conditioning, if you need to add molasses or fat, add it from the mixing drum and steam conditioning and conditioning. After conditioning, the temperature of the mixed powder can reach 64-85°C, and the humidity can reach 14-1 6%. Then pass through the chute through the optional iron absorption device to remove the iron impurities mixed in the powder, and then enter the pressing chamber for granulation.
Features of animal feed plant
1. It can avoid being picky eaters. The compound feed formula has a variety of raw materials with comprehensive nutrition, which can prevent animals from picking their favorite food from the powder and refusing to take in other ingredients. Since pellet feed can maintain uniformity during storage, transportation and feeding, feeding loss can be reduced by 8% to 10%.
2. High feed rate of return. During the pelleting process, due to the comprehensive effects of moisture, temperature and pressure, the feed will undergo some physical and chemical reactions, which will gelatinize starch and enhance the activity of enzymes, which can enable the fed animals to digest the feed more effectively, which translates into weight gain. . Feeding poultry and pigs with pellet feed can increase the feed conversion rate (that is, the rate of return) by 10%-12% compared with powdered feed. Feeding fattening pigs with pellet feed has an average daily gain of 4%, and the feed-to-meat ratio is reduced by 6%; feeding broilers, the feed-to-meat ratio can be reduced by 3%-10%.
3. Storage and transportation are more economical. After pelleting, the bulk density of the feed will generally increase by 40%-100%, which can reduce the storage capacity and save transportation costs.
4. Good liquidity and easy management. Many powders, especially fluffy feeds with a small specific gravity, often stick to feed silos with molasses or high fat and urea-added feeds. Because the pellet feed has good fluidity and seldom produces adhesion, pellet feed is very popular for those farms that use automatic feeders to raise dairy cows or poultry on a large scale.
5. Avoid automatic grading of feed ingredients and reduce environmental pollution. In the process of powder storage and transportation, due to the different volume and mass of various powders, it is easy to produce classification. After the pellets are made, there is no classification of feed ingredients, and the pellets are not easy to dust. During the feeding process, the pellets have much less pollution to air and moisture than powders.
6. Kill Salmonella in animal feed. Salmonella will remain in animal tissues after being ingested by animals. People who eat animals infected with this bacteria will suffer from Salmonella gastrointestinal problems. The method of steam high-temperature tempering and re-granulation can kill Salmonella in animal feed.
Application of animal feed plant
1. Reasonable technology, high output and low energy consumption. It can realize the production of 10,000-20000 tons of powder or pellet feed per shift per year;

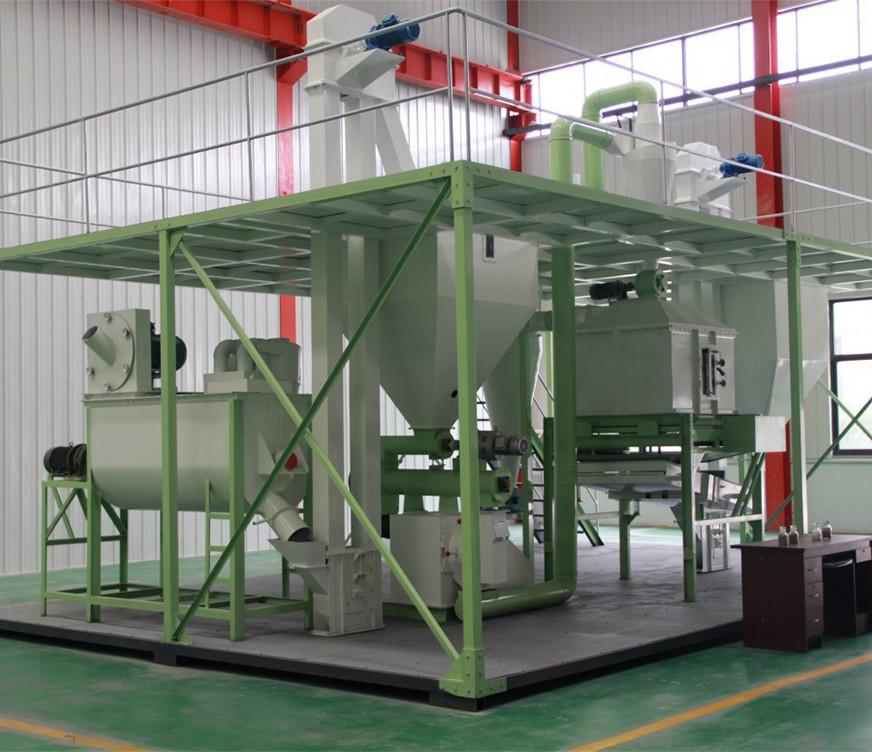

2. Building block structure: the unit has a compact structure, a small footprint, low requirements for workshops, and low investment in civil construction. Container building block structure, convenient disassembly and assembly, convenient transportation and installation, and convenient unit installation;
3. Centralized control: the centralized control on the analog screen is adopted, and each device can be interlocked and controlled, and is equipped with safety and alarm devices, which is simple and convenient to operate;
4. Wide range of application: the unit can produce both livestock and poultry feed and fish feed, and is suitable for use in small and medium-sized feed factories and farms.
Parameter of animal feed plant
| Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH420 |
SZLH508 |
| Power(KW) |
22 |
37 |
55 |
110 |
160 |
| Capacity(T/H) |
1 |
2-4 |
5-7 |
8-10 |
15-20 |
| Inner dia(mm) |
250 |
320 |
350 |
420 |
508 |
| Pellet size(mm) |
2-8 |
2-8 |
2-18 |
2-18 |
2-18 |
