Pig Chicken Poultry Feed Production Line Animal Feed Plant Machine
Production description of poultry feed production line:

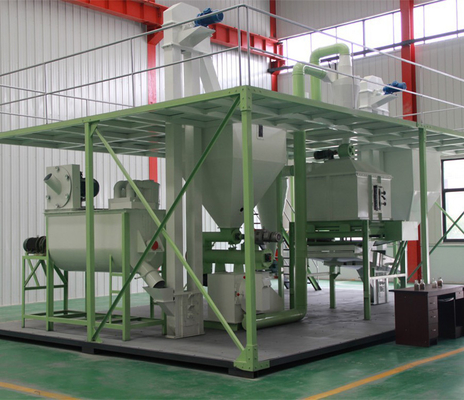

The features of poultry & livestock feed are moderate grinding fineness(screen hole diameter 2-4mm),moderate curing and conditioning requirements(pellet mill adopts two layers conditioners),finished products with big pellet diameter(pellet diameter is around 2.5-4mm). Four lines of SZLH420 poultry & livestock feed process is with 40tph capacity, it adopts three grinding lines, two batching & mixing lines, four pelleting lines and four packing lines. The total equipment power is around 1400kw. The construction area of the production area is about 24.5×22.5×35m, it equipped with 3T boiler. The whole line is compact in design, reasonable in structure, meeting the requirement of environmental protection, and can be customized designed according to the requirements of customers.
Advantages of poultry feed production line:
1. Making feed raw materials into pellets can prevent animals from being picky eaters, which makes sure all animals have comprehensive nutrition;
2. Feed can have a higher rate of return;
3. Volume of feed is greatly decreased, which makes feed storage and transport more economical;
4. Can also kill the salmonella in feeds,
5. Can prevent feed components from grading automatically to decrease environmental pollution.
Features of poultry feed production line:

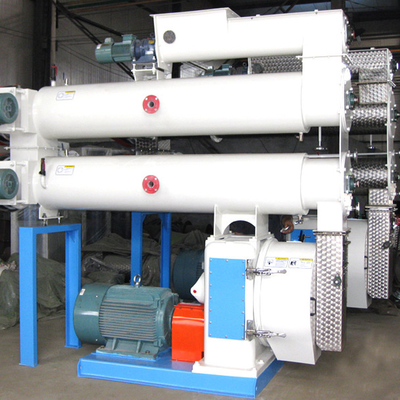

1. The feed pellet mill is equipped with stainless steel feeder and Denmark original imported Danfoss inverter contorl to guarantee accurate and reliable material feeding.
2. It adopts fully stainless steel conditioner and large open access door for convenient maintenance. Inside the conditioner, there are Food Grade 304 Stainless Steel paddles and paddle shaft, which can guarantee the safety of livestock and poultry feed pellets. There are single-conditioner feed pellet mill and double-conditioner feed pellet mill. Single conditioner type is usually for making poultry feed pellets, while double-conditioner type can make better pellets
3. Stainless steel feeding pipe, door cover and scaleboard, which are beautiful and anti-corrosion.
4. Ring die feed pellet mills adopt dual-motor V-belt drive system to achieve ideal transmission ratio, high driving torque, steady transimmison, main shaft long service life, brief structure, easy maintenance and low maintenance cost.
5. The support sleeve of main shaft and main case is lined with brass bush to prevent occlusion and is easy to dissassembly.
6. Ring die feed pellet mill adopts automatic grease adding system.
Parameter of poultry feed production line
|
Model
|
SZLH250
|
SZLH320
|
SZLH350
|
SZLH420
|
SZLH508
|
|
Power(KW)
|
22
|
37
|
55
|
110
|
160
|
|
Capacity(T/H)
|
1
|
2-4
|
5-7
|
8-10
|
15-20
|
|
Inner dia(mm)
|
250
|
320
|
350
|
420
|
508
|
|
Pellet size(mm)
|
2-8
|
2-8
|
2-18
|
2-18
|
2-18
|
Pre-sale service:
1. Provide our client with investment guide for free.
2. Provide our client with evaluation investment scheme for free
3. Free visit to our factory.
4. Design of production line scheme is provided for free.
In-sale service:
1. Experienced workers are sent to provide track service when equipment is transported.
2. Experienced technicians or engineers will be sent for on-site installation, adjustment and technical devices according to clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
