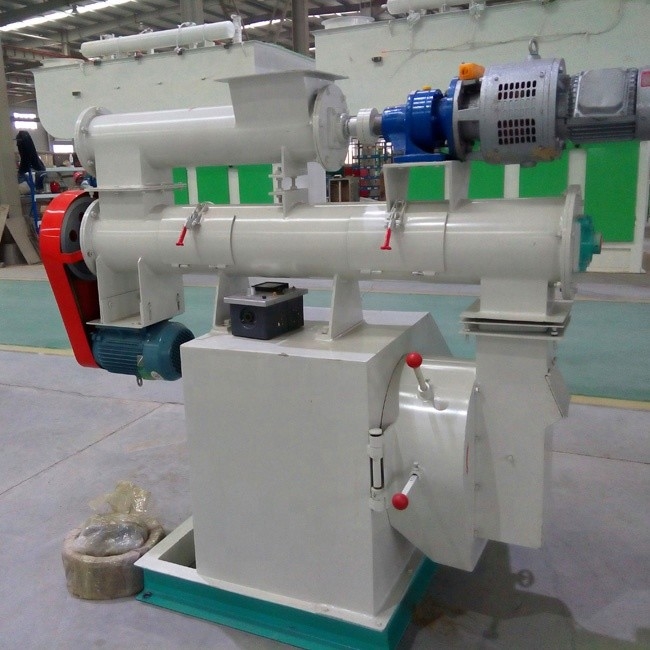

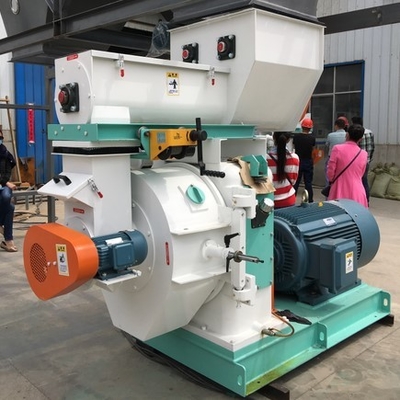

Professional Animal Feed Pellet Mill Machine Ring Die Pellet Making Machine
Product description of feed pellet mill machine
1. Animal feed pellet machine can produce dog, cat, fish, bird, horse and other pet dry food and floating fish feed.
2. For animal feed pellet machine, before pressing pellets, the raw material should be powder with 15%-20% moisture.
So if you only need a critical pellet machine, your raw materials should reach this situation. Otherwise, you have different requirements and we need to customize the pellet production line for you.
3. We have many years of experience in animal feed pellet processing, so we can meet most of your requirements.
4. The complete animal feed processing machine production line can be crushed, mixed, granulated and other processing.
However, the same configuration line can also have different prices. Because of the same crushing process, at least 3-5 types of crushers can be used, so the budget in the entire line is also very important.
5. According to your different types of animals, the final particles can be 2-14mm in diameter. If you need a different particle diameter, just change a different flat die or ring die.
6. The common power supply of animal feed pellet machine is 380v, 50hz, 3-phase, but if you have a different power supply, please contact us before quotation.
Parameter of feed pellet mill machine
| Model No. |
Main motor power |
Capacity (t/h) |
Ring die inner diameter (mm) |
Feeder power (kw) |
Conditioner motor power (kw) |
Size (mm) |
Weight (kg) |
| SZLH250 |
22kw |
0.6-1 |
250 |
0.75 |
1.1 |
1750×650×1750 |
800 |
| SZLH320 |
37kw |
1-3 |
320 |
0.75 |
2.2 |
1900×1800×1650 |
2000 |
| SZLH350 |
55kw |
3-5 |
350 |
0.75 |
2.2 |
2100×2000×1850 |
2400 |
| SZLH420 |
110kw |
8-10 |
400 |
1.5 |
4 |
2200×2000×2150 |
2900 |
| SZLH508 |
132/160kw |
10-18 |
450 |
1.5 |
4 |
2300×2350×2150 |
3500 |
Features of feed pellet mill machine:
1. Adopt frequency conversion speed regulation, high degree of automation.
2. The screws are made of alloy steel and special technology, with longer life.
It adopts building block structure and can be combined at will.
3. Forced lubrication system to ensure longer transmission life.
4. The automatic temperature control system makes the temperature control more intuitive and the parameters more accurate.
5. Self-cleaning, it can be cleaned without disassembly.
6. Different screw design rates meet different process requirements.
7. Wide range of materials, many products, and flexible collocation.
Working principle of feed pellet mill machine:
Based on the principle of circular motion, the template and pressure wheel are made of high-quality alloy steel after special treatment. The main shaft and flat mold drive the pressure wheel to rotate under the action of friction. The pressure wheel is squeezed and discharged from the die hole, and the pellets made are sent out of the machine through the spoiler, and the length of the pellets can be adjusted through the incision.
