Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic 5t/H Chicken Feed Pellet Production Plant With New Technology | Weight: | 5000kg |
|---|---|---|---|
| Warranty: | 1 Year | Model: | SZLH |
| Usage: | Pig Feed Pellet Macking Machine | Advantage: | High Quality |
| High Light: | 5TPH Animal Feed Production Plant,Animal Feed Production Plant CE ISO,ISO Pig Feed Pellet Making Machine |
||

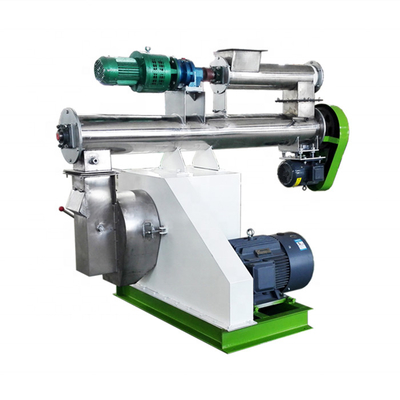

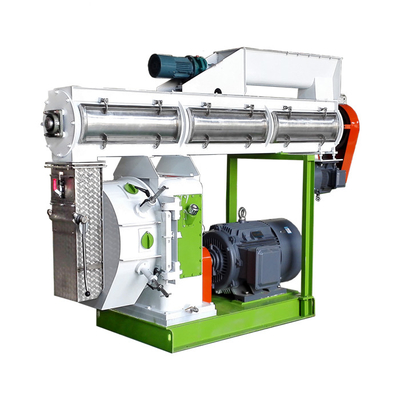

Automatic 5t/H Chicken Feed Pellet Production Plant With New Technology
Product Description:
1. The usual process flow of the feed pellet production line: including crushing, mixing, granulating, screening, cooling, crushing, screening and packaging pellets. Such as crushers, mixers, granulators, coolers, crushers, coolers and all bins, screening machines, packaging machine conveyors, etc. We will design a complete particle line flow chart according to your raw material size and specific requirements.
2. The feed pellet production line produces animal feed pellets with a diameter of 2-8 mm. Such as 2-4mm diameter chicken feed and pig feed. 1.5-3mm fish feed, 2-5mm rabbit feed, 4-8mm cattle or sheep feed. The length of the last particle can be adjusted.
3. Capacity, we will design a flow chart according to your raw materials and requirements. Different capacities are available for you to choose: such as 1-2 tons/hour, 3-5 tons/hour, 5-10 tons/hour, 6-15 tons/ Hour.
Features
1. The main drive adopts high-precision gear drive, the output is about 20% higher than that of belt drive, and the mold adopts quick-release fixture.
2. The driving part of the machine includes the optimized use of high-quality bearings made in Switzerland and Japan to ensure high efficiency, stability and low noise.
3. The all-stainless steel strengthened feed conditioner adopts frequency conversion speed control to ensure the quality of pellet feed.
4. The alloy steel molds are made of internationally advanced German gun drills and American vacuum furnaces, with long service life, ensuring smooth granulation and high quality.
5. The internationally advanced compensating flexible coupling has a novel and compact structure, safety, low noise and few failures.
6. High-performance permanent magnet device.
7. Adopt international advanced piping system and imported pressure regulator.
| Model | Capacity(t/h) | Main motor(kw) | Pellet size(mm) |
| SH250 | 0.6-1.0 | 22 | 2-10 |
| SH320 | 1.0-3.0 | 37 | 2-10 |
| SH350 | 3.0-5.0 | 55 | 2-10 |
| SH400 | 5.0-8.0 | 75 | 2-10 |
| SH420 | 8.0-10.0 | 110 | 2-10 |
| SH508 | 10.0-18.0 | 132/160 | 2-10 |
