Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220/380V | Capacity: | 1-10tph |
|---|---|---|---|
| Usage: | Making Animal Feed | Color: | According Customer's Requirements |
| Product Name: | Animal Feed Pellet Machine | Motor: | Chinese Famous Brand |
| Raw Material: | Kinds Of Animal Feed Materials | Warranty: | 1 Year From The Delivery Time |
| High Light: | 20TPH small ring die pellet mill,Belt Driven ring die pellet machine,2TPH rice husk pellet machine |
||

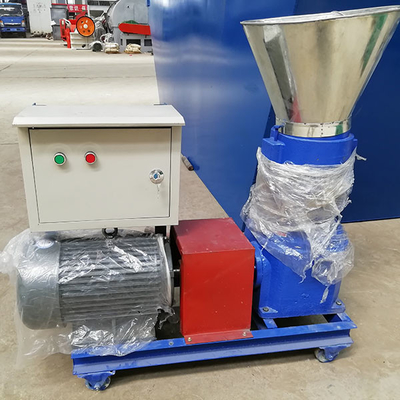

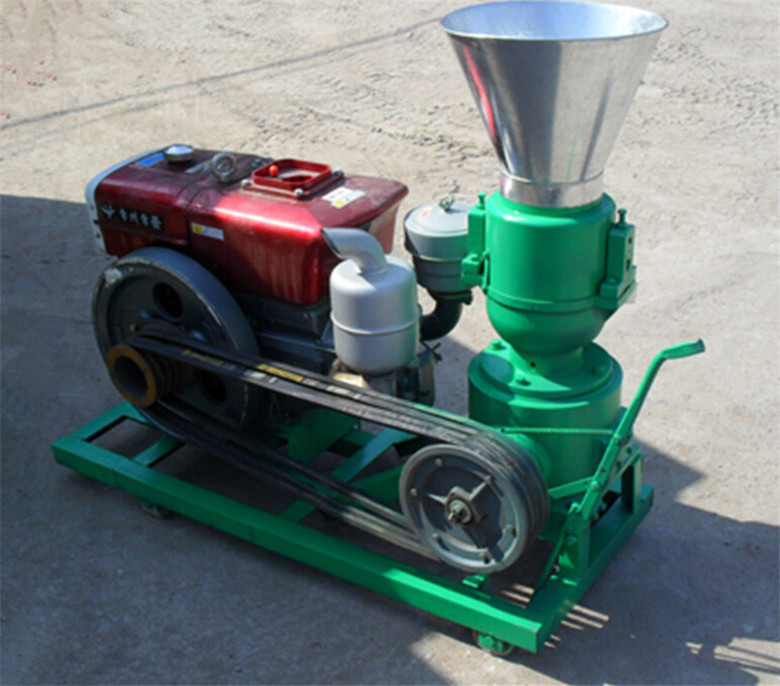

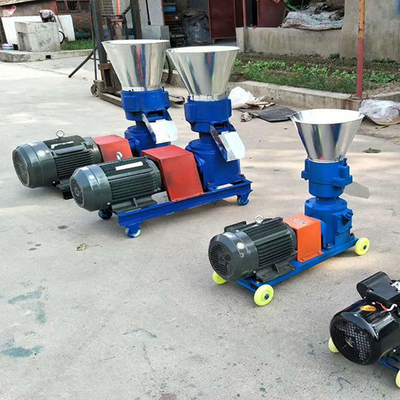

2 To 20 Th Belt Driven Ring Die Pellet Mill Fish Animal Feed Pellet Machine Turkey
| Model |
Inner diameter of die |
Pellets size | Capacity | Main motor power | Feeder motor power |
Conditioner Motor power |
| Kp-125 | ￠ 320mm | ￠1.5-￠8mm | 2-3t/H | 4kw | 1.1KW | 1.1KW |
| Kp-150 | ￠ 350mm | ￠1.5-￠8mm | 3-5t/H | 4kw | 1.1KW | 1.5KW |
| Kp-160 | ￠ 400mm | ￠1.5-￠8mm | 5-8t/H | 4kw | 1.1KW | 1.5KW |
| Kp-210 | ￠ 450mm | ￠1.5-￠8mm | 5-12t/H | 7.5kw | 1.5KW | 2.2KW |
| Kp-230 | ￠ 480mm | ￠1.5-￠8mm | 5-20t/H | 11kw | 1.5KW | 3KW |
Power drive system for optimal energy efficiency
The robust two-motor belt-drive system allows for smooth operation, low noise, and optimal energy utilization. The improved drive system simplifies maintenance.
Cost-efficiency alternative thanks to small footprint, excellent performance
Superior compact design extremely slashes investment cost, enabling further line capacity expansion.
Low operation cost thanks to easy maintenance, resulting in increased uptime.
Customer-oriented design
The optionally available die lift for the installation of ring die allows quick die change to the specific needs of the customer.
◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by a frequency inverter.
◎It is used to produce high-quality poultry, livestock, fish, shrimp feedstuff pellets.
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with almost 30 years' experience in this industry. Our products are sold to more than 100 countries.
Q: I know little about feed machines and production lines. How can I get started?
A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use, and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.
Q: We do not have experience in the operation and maintenance of the production line. How can I install and run a feed factory?
A: Our technician will get to your place and provide on-site installation instructions and operation training.
Q: What is your payment term?
A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
Small Feed Pellet Machine for Chicken Farming Plant application:
It is widely used in the re-granulation of organic waste gas in animal husbandry, large, medium and small farms, feed factories and other units. It is the ideal equipment of choice for animal husbandry.
