Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220/380v | Warranty: | 1 Year From Delivery Time |
|---|---|---|---|
| After-sales Service Provided: | Online Technical Support | Capacity: | 1-10tph |
| Color: | According Customer's Requirements | Product Name: | Animal Feed Pellet Machine |
| High Light: | Flat Die Animal Feed Pellet Machine,1100kg/h Animal Feed Pellet Machine,60kg/h goat feed making machine |
||

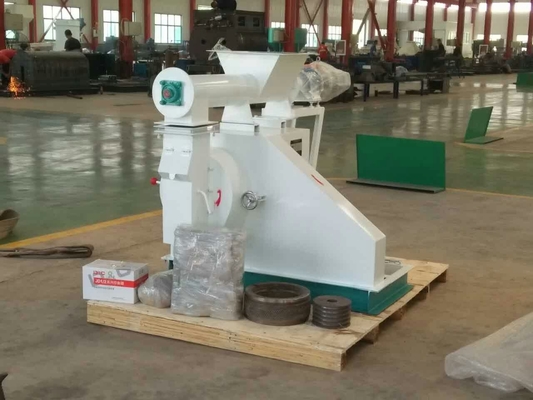

Flat Die Chicken Animal Feed Pellet Machine For Small Farm / Home Use
This series Flat die chicken feed pellet machine are the simplest design of animal feed pelletizer, this kind of chicken feed pellet machine had been originally applied mainly in the animal feed market. Flat die feed pellet equipment works on a vertical design, using gravity as the main force for feeding the material through the machine. Flat die cow feed pellet mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Features of Flat Die Chicken Feed Pellet Machine:
1. Flat die feed pellet making machine are easier to clean than the ring die pellet mill.
2. Able to change die and roller faster and easily.
3. Small and lightweight, making small-scale production possible.
4. Visibility. It is possible to view into the chamber when pelletizing, you can solve any problem timely.
5. The main features of the feed pellet mill: high energy efficiency, reasonable structure, work reliable, wide adaptability, elegant, easy to clean, easy to operate.
Main Parameters of Flat Die Chicken Feed Pellet Machine:
| Model | Motor Power(kw) | Capacity(kg/h) | Weight(kg) |
| SJHS0.5 | 2.2/3 | 60-100 | 60 |
| SJHS1 | 4 | 90-120 | 180 |
| SJHS2 | 7.5 | 200-300 | 250 |
| SJHS4 | 11 | 300-400 | 270 |
| SJHS6 | 15 | 400-600 | 300 |
| SZLHM-320 | 15/18.5 | 600-800 | 310 |
| SZLHM-350 | 22 | 700-900 | 400 |
| SZLHM-420 | 30 | 900-1100 | 450 |
Our Advantage:
