15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine

15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine
15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine 15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine 15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine

Large Image :  15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine

Product Details:
Place of Origin: China
Brand Name: Shenghong
Certification: ISO
Model Number: ZLH420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-USD200000 per line
Packaging Details: Loading in container or packed in export carton
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Item: 15-18 Ton/hr Big Scale Animal Industrial Poultry Feed Production Line Material: Carbon Steel
Capacity: 15-18 Ton Per Hr Voltage: 380V Or Customized
Pallet Size: 3-3.5mm Application: Chicken, Goose, Duck, Cow, Sheep, Pig Animal
After Sale Service Provides: 1 Year Wanrranty, Abroad Installation Instruction Adjustor Material: Stainless Steel
High Light:

18TPH Poultry Feed Production Line

,

15TPH Poultry Feed Production Line

,

90KW grain crushing machine

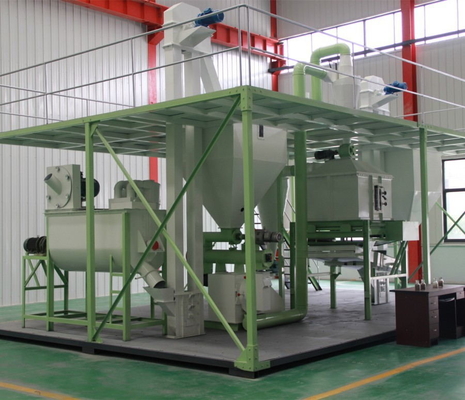

15-18 Ton/hr big scale animal industrial Poultry feed production line



For big scale factory plant setting up. It has raw material auto batching system and control system.



Machine Specifications:

Model No. Main Power
(kw)
Feeder Power
(kw)
Adjusor power
(kw)
Capacity
(Ton/hr)
SZLH250 22 1.5 2.2 0.6-1.0
SZLH304 30/37 1.5 2.2 1-3
SZLH320 37 1.5 2.2 2-4
SZLH350 55 1.5 3 3-5
SZLH400 75 2.2 3 8-10
SZLH420 90 2.2 3 10-18



Grain Crushing and Mixing Machine

Crusher
Adopts regrinding crushing technology, widen the screen in 360°,the materials can be crushed averagely. When the size of the materials is smaller than the holes in the screen, the materials can be discharged quickly.
Mixer
Coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged form one side. There is no dead corner when mixing, and this machine is easy to maintenance.

Cooling Machine

Counter Flow Cooler
Adopts counter-flow cooling technology, the pellets can be cooled averagely and no crack. The cooling time and volume can be adjusted, and there are no residues by discharging.

Roller Crumbier

Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones.

Roll type feed pellet crumbler is the equipment for feed pellet crushing.

Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.

15TPH To 18TPH Poultry Feed Production Line Grain Crushing Mixing Machine 0

Service we provided:

1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Machine.



Our Advantage:

  • 20 year machinery production experience
  • Full technical support
  • Aftersale installation service
  • Quality insurance and competitive price
