Customized Sheep Animal Feed Pelleting Machine 2mm To 8mm

Poultry Feed Production Line Animal Feed Pelleting Machine For Animal

The palleting machine is acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.

Proceedures:

Feeding pit →Feed Grinder →Feed Mixer → Feed Pellet Mill → Counter flow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

This pellet feed line are suitable for large and medium-size farms and medium-sized feed mill plant.

The line consists 6 sections

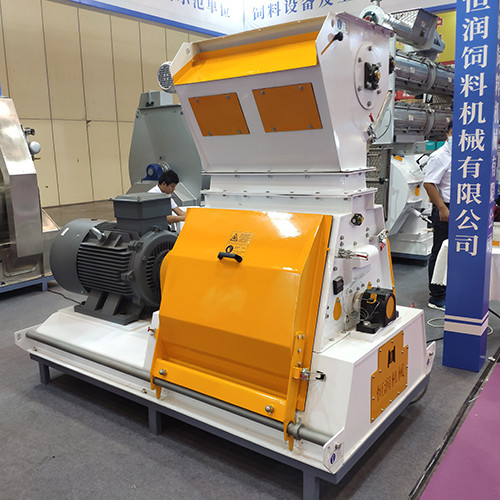

1. Crushing Section

When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.

2. Mixing Section

Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc

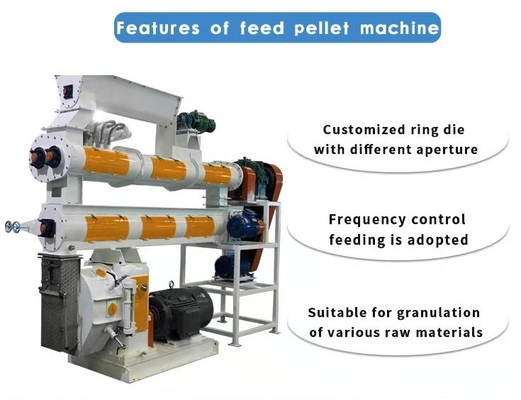

3. Pelletizing Section

Acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.

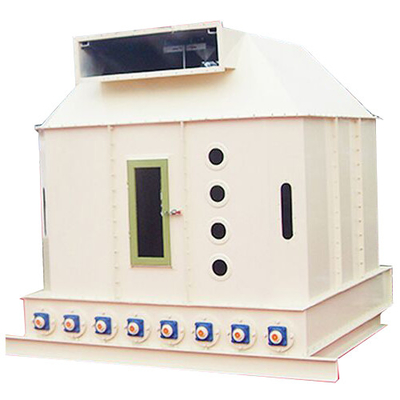

4. Cooling Section

After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the wood pellets to about 3-4%, thereby making the feed pellets easier to store.

5. Classifying screen

It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.

by large and medium feed mills.

6. Packing Section

After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.



Parameters:

Model	SZLH250	SZLH320	SZLH350	SZLH420	SZLH508
Power(KW)	22	37	55	110	160
Capacity(T/H)	1	2-4	5-7	8-10	15-20
Inner dia(mm)	250	320	350	420	508
Pellet size(mm)	2-8	2-8	2-18	2-18	2-18







Technical support and pre-sale service:

1. Offering comprehensive technical and business consultation services;

2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
