Product Details:
Payment & Shipping Terms:
|
| Applicable Industries:: | Manufacturing Plant, Farms, Feed Factory | Power: | 55kw |
|---|---|---|---|
| Pellets Diameter: | 2-12mm | Key Selling Points: | High Productivity |
| Steam Temperature: | 130-150ºC | Condition: | New |
| High Light: | 150C Steam Animal Feed Extruder Machine,Animal Feed Extruder Machine ODM,Soy Corn Feed Extruder Machine |
||

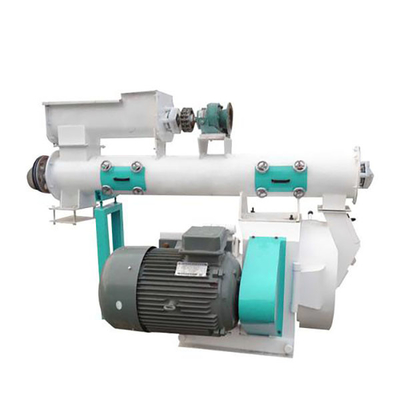

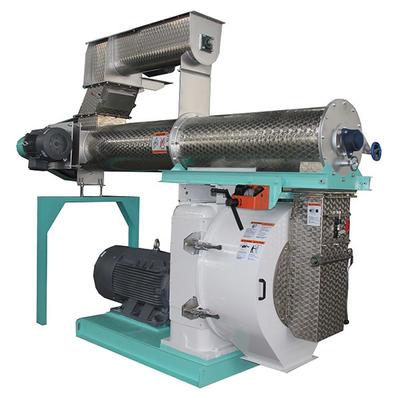

Steam Soy Corn Animal Feed Extruder Machine
Introduce:
1. High performance conditioner with stainless steel jacket and inverter control.
2. Inverter controlled feeder features accurate feeding, steady flowing and anti-block.
3. High efficiency with the productivity of 15%- 20% higher than that of other similar types;
4. Combined main shaft can adapt a variety of materials. It's particularly used in extruding of soybean, corn, animal feeds; As well as bran for fresh-keeping, cottonseed and castor cake for de-toxication.
Parameter of animal feed extruder
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 |
2-18 |
How to Work:
SZLH Feed Pellet Machine Equipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.
It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .
Product Feature:
Die and Roller of poultry feed mill have long service life. Main drive adopts high accurate gear drive with higher efficiency, steady running and low noise.
Ring die pellet mill is fitted with deironing and overload protection device and protection on the machine is fully considered during the operation. High precision gear dribing is adopted, resulting in high driving efficiency and stable working.
The imported bearing and oil seal are used for key positions of drive of the machine so that the machine has long service life and low noise.
Ring die pellet mill can be fitted with single-layer, multiple -layer jacket conditioners or double-shaft differential conditioner so as to meet the different requrements of producing high grade livestock and poultry feed and aquafeed.
