5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel

5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel
5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel 5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel 5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel

Large Image :  5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001, CE
Model Number: SZLH420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3299-29999
Packaging Details: 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per month
Detailed Product Description
Product Name: Automatic Goat Broiler Cattle Chicken Feed Production Line To Make Feed Pellet Capacity: 5-7t/h
Type: Feed Pellet Machine Motor: Electric Motor
Power(w): 110kw Material: Material Stainless Steel
Pellet Size: 1-8mm Voltage: 380V,Customer's Requirement
High Light:

Goat Homemade Chicken Feed Machine

,

7tph Homemade Chicken Feed Machine

,

Stainless Steel Goat Feed Machine

Automatic Goat Broiler Cattle Chicken Feed Production Line To Make Feed Pellet





Product description of chicken feed production line



Nowadays, the intensive management of the chicken breeding industry can save costs and improve efficiency. How to produce high-quality feed and how to make animals digest the feed effectively is a problem that chicken farmers have been paying attention to. We have developed a complete chicken feed production line with the goal of providing chickens with a healthy, nutritionally balanced and easy-to-digest diet.

Compared with feed mash or traditional feed, the pellets produced by the chicken feed production line are cleaner, healthier and easier to transport. Feed pellets can provide concentrated nutrition for livestock. Due to these advantages, chicken feed production lines have become more and more popular in recent years. Zhengzhou Shenghong Heavy Industry Technology Co., Ltd. can make durable chicken feed production lines with glossy surface for you.

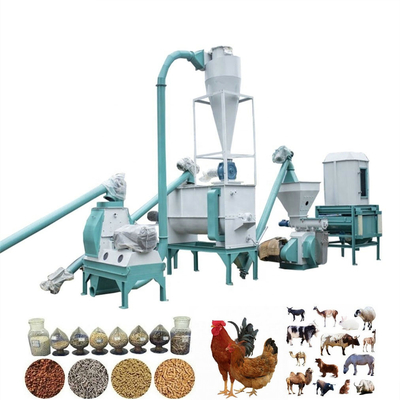

The chicken feed production line is mainly composed of: crusher, mixer, ring mold chicken feed pelletizer, feed pellet crusher, feed pellet cooler.


Features of chicken feed production line



Compact, modular and containerized small feed mill with advantages of low investment, compact structure and flexible operation:

1. With reasonable technology, homogeneous grinding particles, high capacity and low energy consumption, it can produce 1000-40000 tons mash and pellet feed per shift annually.

2. Modular Structure: The plant is compact, which occupies less floor space and has low requirement on the mill tower, also needs low investment in civil works. This structure is convenient for assembly and disassembly, facilitates the shipment and installation

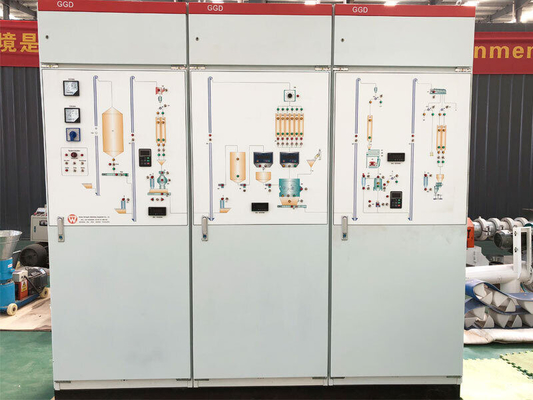

3. High accuracy dosing system with centralized control: the analogue panel is adopted. All machines can be interlocked and safety, alarm device is available. The operation is simple and convenient

4. Wide applicable scope: The plant can produce both poultry & livestock feed and fish feed and is applicable for medium and small sized feed mills.



Parameter of chicken feed production line



Model
SZLH250
SZLH320
SZLH350
SZLH420
SZLH508
Power(KW)
22
37
55
110
160
Capacity(T/H)
1
2-4
5-7
8-10
15-20
Inner dia(mm)
250
320
350
420
508
Pellet size(mm)
2-8
2-8
2-18
2-18
2-18


5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel 0
Flowchart of chicken feed production line:



1.Raw material cleaning


Receive bulk raw material corn and soybean meal; the cleaning process is to pass the corn and soybean meal that passed the inspection by the raw material inspector into all the operation units of the silo. In this process, the impurity removal equipment is first used to remove the impurities in the raw materials, and then the receiving equipment and demagnetization equipment are transported to the silo as planned. The production line equipment includes receiving devices (such as unloading pits, platforms, etc.), conveying equipment, primary cleaning screens, and magnetic separation devices (such as permanent magnet drums, permanent magnet drums, etc.). For the receipt of bagged raw materials, it means that the loading and unloading personnel unload the raw materials that have passed the inspection by the raw material inspector and store them neatly in the warehouse. Four points must be taken in the receiving process: 1. Accurately count the quantity; 2. The raw materials have no quality problems; 3. The receiving route is correct; 4. The receiving environment is clean.



2. Batching process


The batching process is to weigh the raw materials in the batching bin from the feeder under each batching bin to the batching according to the formula requirements. After each raw material is weighed by the batching scale, the raw material is transported to the powder storage bin. The ingredients are weighed out from the silo, these weighed raw materials enter the powder silo, and a small amount of materials and premix are directly added to the silo for manual weighing and mixed. The quality of the batching process directly affects the accuracy of product batching.



3. Crushing process


The crushing process refers to sending the raw materials to be crushed in the silo to the crusher to be pulverized into powder, and then sent to the silo to be mixed by a conveyor for use. The purpose of this process is to control the particle size of the material. The design efficiency of the crusher in this process determines the capacity of the process equipment, and it is also the process with the largest energy consumption in the production of powdered materials. Monitor and confirm the hammer, sieve, current, noise and crushing path at any time.



4. Mixing process


In the mixing process, the crushed various raw materials are discharged from the mixing bin into the mixer, and grease is added to the feed in the mixer through the liquid adding system as needed to make the components mix uniformly to achieve the desired mixing effect. Uniformity. The material discharged from the mixer is the finished product, which is directly sent to the packaging process of the finished product for packaging and leaving the factory. In the production of pellet feed, the mixed powder is sent to the silo for pelleting. In order to ensure the efficiency of the mixer, maintenance personnel must regularly check and repair the equipment, and regularly test the efficiency of the mixer.

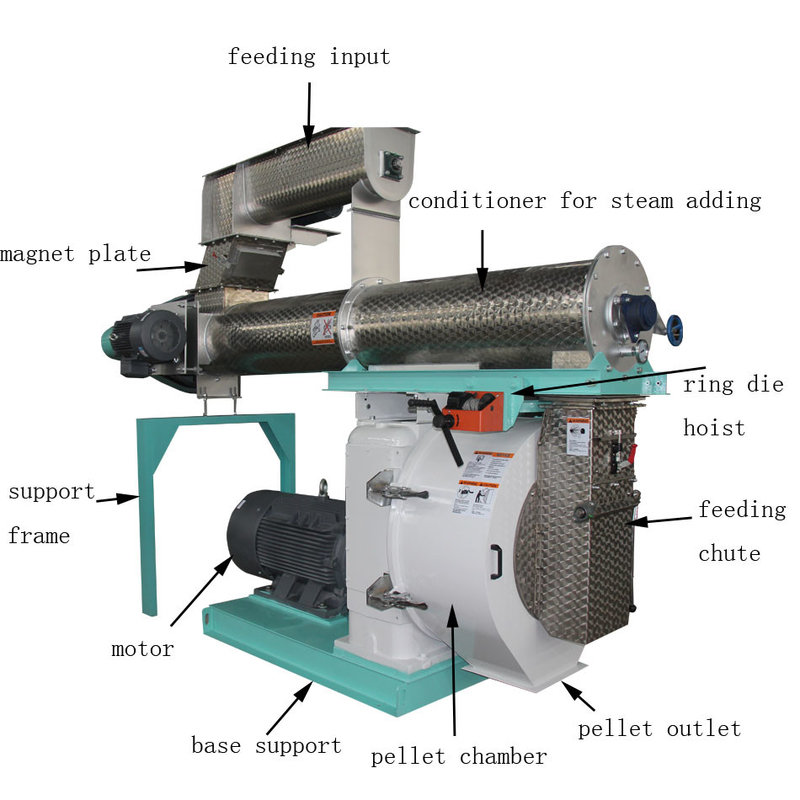

5. Granulation process


The mixed materials are transferred from the granulation bin to the compression chamber of the granulator after magnetic separation and conditioning, and compressed into granular feed, cooled by the cooling tower, and sieved by the screening equipment to obtain standard granules. The magnetic separation equipment must be cleaned regularly to prevent iron impurities from damaging the granulator. During quenching and tempering, the amount of steam should be adjusted according to the requirements of the particle type, and the ring die (aperture, compression ratio, material, etc.) should be selected according to the requirements of the particle process quality. The cooling tower should be adjusted according to the variety, indoor temperature and humidity, season and other factors during cooling, so as to reach the qualified level. Particle temperature and humidity. Adjust the cooling tower to reach the qualified particle temperature and humidity according to the variety, indoor temperature and humidity, season and other factors.



6. Finished product packaging process


The feed is weighed from the finished product warehouse by a packaging scale, put into the packaging bag, and then the label is inserted and sealed by the packer, and then transported to the warehouse by the transport truck for stacking.

5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel 1




Our after-sales Service:

1). We can provide you the one year warranty of pellet machine animal feed animal feed production machine but without the spare parts.

2). The professional and timely 24 hours after-sale service for animal feed machinery

3). The relative video of the animal feed production machine installation and instruction will be provided for you.

4). We can provide you the different mould of animal feed mixer machine to meet your different requirements.

5). We can also meet the special voltage demand of animal feed pallet machine about poultry feeding machine price,

6). The engineer is available to service feed pellet machine animal oversea for straw crusher/animal feed machinery.

5-7t/H Auto Goat Homemade Chicken Feed Machine Stainless Steel 2
