Product Name: | Aniaml Chicken Feed Production Line Chicken Feed Pellet Machine For Sale | Capacity: | 2-4t/h |
---|---|---|---|
Type: | Feed Pellet Machine | Motor: | Electric Motor |
Power(w): | 37kw | Material: | Material Stainless Steel |
Pellet Size: | 2-8mm | Voltage: | 380V,Customer's Requirement |
High Light: | PLC Chicken Feed Production Line,4TPH Chicken Feed Production Line,8mm Livestock Feed Pellet Machine |

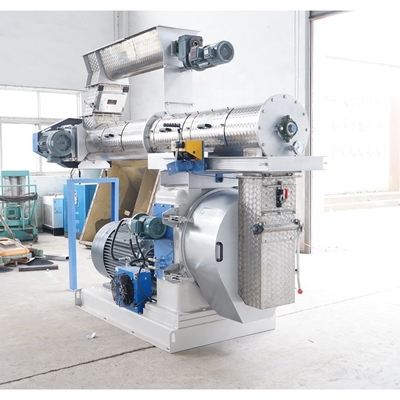

Aniaml Chicken Feed Production Line Chicken Feed Pellet Machine For Sale
Product description of full price pellet feed production line
1. Capacity 1-20t/h cattle feed mill/poultry feedstuff pellet machine production of animal feed pellets is of urgent need due to the prosperous breeding industry. Dedicated to providing animal feed pelletizing solutions . The feed pellet production line can be used to make various poultry feed and aquatic feed for rabbits, ducks, cattle, chickens, sheep, pigs, pigeons, fishes and shrimp etc. The whole production line can be control by the automatic PLC control system.
2. Advantages of Feed Pellets:
Decreased ingredient segregation
Decreased feed wastage
Easy storage and transportation
Improved palatability
Reduced selective feeding
Destruction of pathogenic organisms
3. Feed Pellets Processing Technology:
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
4. Equipment Related to Chicken Poultry Cattle Livestock Complete Animal Feed Line:
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

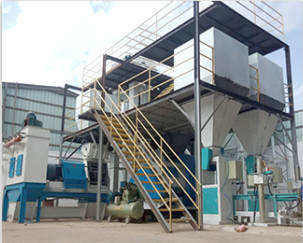

Compact, modular and containerized small feed mill with advantages of low investment, compact structure and flexible operation:
1. With reasonable technology, homogeneous grinding particles, high capacity and low energy consumption, it can produce 1000-40000 tons mash and pellet feed per shift annually.
2. Modular Structure: The plant is compact, which occupies less floor space and has low requirement on the mill tower, also needs low investment in civil works. This structure is convenient for assembly and disassembly, facilitates the shipment and installation
3. High accuracy dosing system with centralized control: the analogue panel is adopted. All machines can be interlocked and safety, alarm device is available. The operation is simple and convenient
4. Wide applicable scope: The plant can produce both poultry & livestock feed and fish feed and is applicable for medium and small sized feed mills.
1.Raw material cleaning
Receive bulk raw material corn and soybean meal; the cleaning process is to pass the corn and soybean meal that passed the inspection by the raw material inspector into all the operation units of the silo. In this process, the impurity removal equipment is first used to remove the impurities in the raw materials, and then the receiving equipment and demagnetization equipment are transported to the silo as planned. The production line equipment includes receiving devices (such as unloading pits, platforms, etc.), conveying equipment, primary cleaning screens, and magnetic separation devices (such as permanent magnet drums, permanent magnet drums, etc.). For the receipt of bagged raw materials, it means that the loading and unloading personnel unload the raw materials that have passed the inspection by the raw material inspector and store them neatly in the warehouse. Four points must be taken in the receiving process: 1. Accurately count the quantity; 2. The raw materials have no quality problems; 3. The receiving route is correct; 4. The receiving environment is clean.
2.Batching process
The batching process is to weigh the raw materials in the batching bin from the feeder under each batching bin to the batching according to the formula requirements. After each raw material is weighed by the batching scale, the raw material is transported to the powder storage bin. The ingredients are weighed out from the silo, these weighed raw materials enter the powder silo, and a small amount of materials and premix are directly added to the silo for manual weighing and mixed. The quality of the batching process directly affects the accuracy of product batching.
3.Crushing process
The crushing process refers to sending the raw materials to be crushed in the silo to the crusher to be pulverized into powder, and then sent to the silo to be mixed by a conveyor for use. The purpose of this process is to control the particle size of the material. The design efficiency of the crusher in this process determines the capacity of the process equipment, and it is also the process with the largest energy consumption in the production of powdered materials. Monitor and confirm the hammer, sieve, current, noise and crushing path at any time.
4.Mixing process
In the mixing process, the crushed various raw materials are discharged from the mixing bin into the mixer, and grease is added to the feed in the mixer through the liquid adding system as needed to make the components mix uniformly to achieve the desired mixing effect. Uniformity. The material discharged from the mixer is the finished product, which is directly sent to the packaging process of the finished product for packaging and leaving the factory. In the production of pellet feed, the mixed powder is sent to the silo for pelleting. In order to ensure the efficiency of the mixer, maintenance personnel must regularly check and repair the equipment, and regularly test the efficiency of the mixer.
5.Granulation process
The mixed materials are transferred from the granulation bin to the compression chamber of the granulator after magnetic separation and conditioning, and compressed into granular feed, cooled by the cooling tower, and sieved by the screening equipment to obtain standard granules. The magnetic separation equipment must be cleaned regularly to prevent iron impurities from damaging the granulator. During quenching and tempering, the amount of steam should be adjusted according to the requirements of the particle type, and the ring die (aperture, compression ratio, material, etc.) should be selected according to the requirements of the particle process quality. The cooling tower should be adjusted according to the variety, indoor temperature and humidity, season and other factors during cooling, so as to reach the qualified level. Particle temperature and humidity. Adjust the cooling tower to reach the qualified particle temperature and humidity according to the variety, indoor temperature and humidity, season and other factors.
6.Finished product packaging process
The feed is weighed from the finished product warehouse by a packaging scale, put into the packaging bag, and then the label is inserted and sealed by the packer, and then transported to the warehouse by the transport truck for stacking.
Parameter of chicken feed production line
Our after-sales Service:
1) We can provide you the one year warranty of pellet machine animal feed animal feed production machine but without the spare parts.
2) The professional and timely 24 hours after-sale service for animal feed machinery
3) The relative video of the animal feed production machine installation and instruction will be provided for you.
4) We can provide you the different mould of animal feed mixer machine to meet your different requirements.
5) We can also meet the special voltage demand of animal feed pallet machine about poultry feeding machine price,
6) The engineer is available to service feed pellet machine animal oversea for straw crusher/animal feed machinery.
