Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken

Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken
Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken

Large Image :  Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001, CE
Model Number: SZLH250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 5999-29999
Packaging Details: 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Small Animal Feed Pellet Machine Animal Feed Processing Machinery For Chicken Raw Material: Carbon Steel
Dimension: 3260*1100*2200mm Voltage: 380V, 50hz, 3 Phase
Screw Diameter: 155mm Application: Animal Feed Pellet Machine
High Light:

Animal Feed Processing Machinery

,

Animal Feed mill For Chicken

,

Small Carbon steel Pellet Machine

Small Animal Feed Pellet Machine Animal Feed Processing Machinery For Chicken



Product description of feed pellet machine



On the basis of digesting and absorbing the successful models of advanced technologies at home and abroad, this model adopts an inlaid rotating roller plate, and the pressure roller can be adjusted arbitrarily during work. Each function has reached the international advanced level.

It adopts forced feeding and is equipped with overload protection device, which is uniform and unimpeded, with low noise, making it safer and more reliable to operate.
The large-diameter conditioner is used to make the material mature more fully, the particles are smoother, the hardness is more moderate, the forming rate reaches 98%, and the equipment wear rate is reduced to the bottom.
It adopts speed-regulating feeding and accurately controlling the feeding amount to meet the production needs of different materials and different particle diameters.

Parameter of feed pellet machine
Model Power(kw) Capacity(t/h) Directions Application
SZLH250 22 0.6-1.0 According to the customer's different materials and the relative output of different particle sizes, the output of large particles is high, and the output of small particles is small. Granular processing of various livestock and poultry feeds, aquatic feeds, grass meal and organic fertilizers, and processing of aquaculture feeds such as complete sets of units.
SZLH320 37 1.0-3.0
SZLH350 55 3.0-5.0
SZLH420 110 8.0-10.0
SZLH508 132 10.0-18.0


Features of feed pellet machine

1) Feeder: feeding the feed raw material into the conditioner.
the feeder is made of stainless steel.
2) Conditioner: the feed raw material are ripened and sterilized due to the vapour steam. which can improve the digestibility of the feed, promote the absorption, increase the feed meat ratio and reduce the production cost.
the conditioner is made of stainless steel.
3) Vapour steam inlet: connection with steam boiler.
4) Pellet making: the ring die and press roller inside work together to make the raw material into pellet pellet.
5) Main motor: driving the pellet making system.
We adopt the super quality brand Siemens motor in our feed pellet machine.

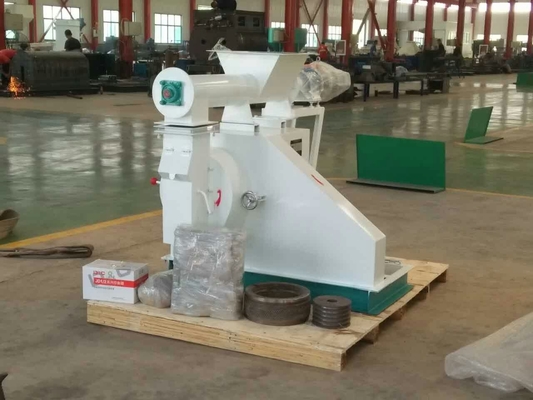

Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken 0
Working principle of feed pellet machine

The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and feed powder raw material.
The feed material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.



Our company



Zhengzhou Shenghong Heavy Industry Technology Machinery co.,ltd. (short for “Shenghong Machinery”)is recognized globally as an expert in process design and equipment manufacturer on fertilizer industry, including animal feed production line with 5000 to 100000 tons per year and fertilizer production line with 5000 to 200000 tons per year.
Shenghong consistently helps you turn ideas into realized processes, work out material and process problems, and create value.



Our Pre-sale Service:


1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.



Our after-sales Service:


1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

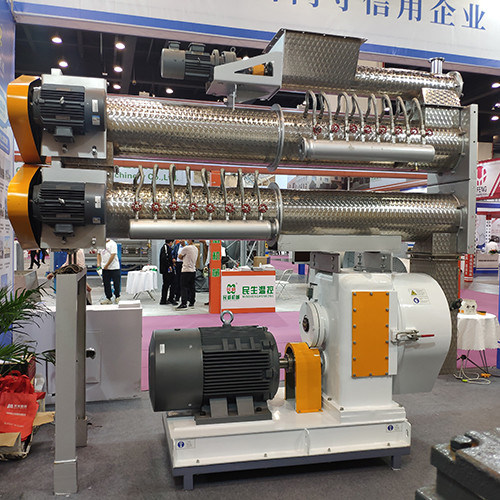

Small Carbon Steel Pellet Machine Animal Feed Processing Machinery For Chicken 1



Our service

1) We are the professional manufacturer, which has abundant experience of the machine, also we own research and development team.
2) The professional and timely 24 hours after-sale service.
3) The relative manual and video of the machine installation and instruction will be provided for you.
4) ODM&OEM Provided.
5) The engineer is available to install and training for oversea projects.
