Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill

Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill
Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill

Large Image :  Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 3999-6999
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Farm Use Feed Pellet Mill Machine Ring Die Poultry Animal Feed Pellet Machine Capacity: 1-3 Tons Per Hour
Raw Material: Animal Feed Powder Material: Stainless Steel Or Carbon Steel
Voltage: 380V/415V Warranty: 12 Month
High Light:

Ring Die Feed Pellet Mill

,

Poultry Animal Pellet mill

,

Stainless steel Pellet Mill Machine

Farm Use Feed Pellet Mill Machine Ring Die Poultry Animal Feed Pellet Machine



Product description of feed pellet mill machine



On the basis of the A type ring die pelleter, the feeding of the raw material added steam quenching and tempering deviceis and it is controlled by the variable speed motor, the feeding is uniform and convenient.
With large stainless steel steam modulator, conditioning, curing time is long.
Can be equipped with single, double, multi-layer jacket modulator or dual-axis differential modulator, to meet the production of high-grade livestock and poultry materials and aquatic products of different needs.
Transmission parts using high-strength belt drive, smooth operation, low noise.
Rotary parts of the selection of high-quality bearings, to ensure high-speed rotation stability.
The addition of a permanent magnet to the cutting part of the device, increasing the service life of the main components while reducing the same type of auxiliary equipment.
Easy operation, reliable sealing, high production efficiency, low energy consumption, low labor intensity.



Parameter of feed pellet mill machine



Model No. Main motor power Capacity (t/h) Ring die inner diameter (mm) Feeder power (kw) Conditioner motor power (kw) Size (mm) Weight (kg)
SZLH250 22kw 0.6-1 250 0.75 1.1 1750×650×1750 800
SZLH320 37kw 1-3 320 0.75 2.2 1900×1800×1650 2000
SZLH350 55kw 3-5 350 0.75 2.2 2100×2000×1850 2400
SZLH420 110kw 8-10 400 1.5 4 2200×2000×2150 2900
SZLH508 132/160kw 10-18 450 1.5 4 2300×2350×2150 3500

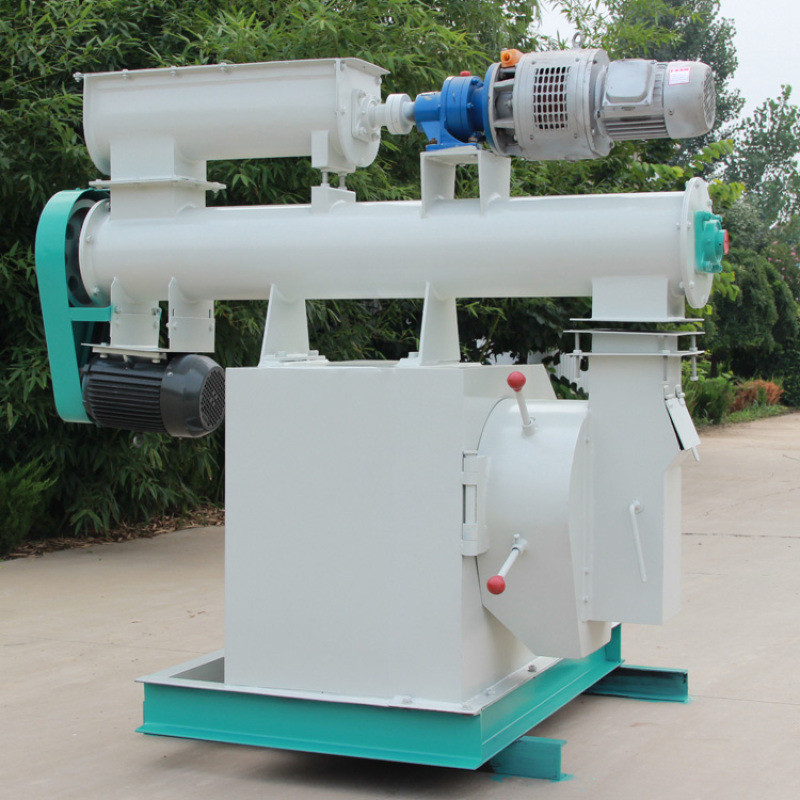

Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill 0

Features of feed pellet mill machine:



1. The part in contact with the material is made of stainless steel, which occupies a small area and has low noise;
2. Wide adaptability, can produce chicken feed, duck feed, fish feed, etc., high economic benefits;
3. Using dry processing technology, the produced feed particles have high hardness, smooth surface and mature interior, which is beneficial to the digestion and absorption of nutrients by animals;
4. The granule forming process kills pathogenic microorganisms such as various parasite eggs, thereby reducing the types of insect pests in the digestive system.

Advantages of feed pellet mill machine:

1. The feeder of our company's ring die feed factory adopts imported original frequency conversion controller, and the feeding is even and accurate.
2. The conditioners of this feed granulator are all made of stainless steel to ensure that they will not deteriorate in a steam environment for a long time. The access door is also designed to facilitate cleaning and maintenance. During the conditioning process, the feed is fully contacted with steam, and the feed has a high maturity, which is beneficial to the production of high-quality animal feed pellets.
3. The feed inlet of the feed factory is designed with a deflector, which can control the flow direction of the material (into the pelletizing chamber or directly discharged from the bottom). It is convenient to avoid the wrong material ratio entering the granulation system.
4. The transmission belt adopts high-strength SPB V-belt, with stable and reliable transmission and low noise.

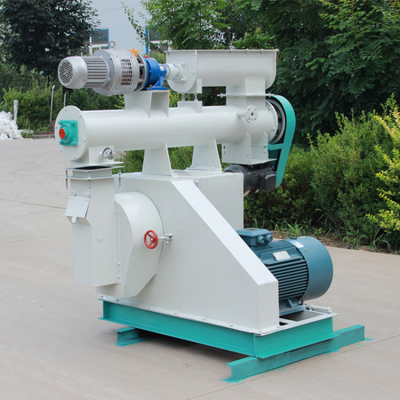

Stainless Steel Feed Pellet Mill Machine Ring Die Poultry Animal Pellet Mill 1
