Poultry Farm Animal Feed Mill Extruder Pellet Machine

Poultry Farm Animal Feed Mill Extruder Pellet Machine
Poultry Farm Animal Feed Mill Extruder Pellet Machine Poultry Farm Animal Feed Mill Extruder Pellet Machine

Large Image :  Poultry Farm Animal Feed Mill Extruder Pellet Machine

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH508
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3999-5999
Packaging Details: 20GP, 40GP, 40HQ, plywood packing
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Poultry Farm Machinery Animal Feed Mill Extruder Animal Pellet Machine Capacity: 10-18t/h
Power: 132kw Voltage: 380V, 50hz, 3 Phase
Condition: New Type: Making Animal Feed Pellet
High Light:

Animal Feed Mill machine


Extruder Pellet Machine


Poultry Farm Feed Pellet Mill

Poultry Farm Machinery Animal Feed Mill Extruder Animal Pellet Machine


Product description of feed pellet mill machine:


Poultry feed mills are also known as animal feed mills or animal feed machines, which are feed processing machinery. Corn, soybean meal, rice straw, straw, rice husk, etc. are directly pressed into pellet feed. As a result, it is widely used in aquaculture, animal feed processing plants and poultry farms. Various animal feed plants are classified according to different appearances and production methods. Among them, flat mold animal feed plants and ring mold animal feed plants are most popular.
1). Feeder: feeding raw material into the conditioner.
2). Conditioner: the feed raw material are ripened and sterilized due to the vapour steam. which can improve the digestibility of the feed, promote the absorption, increase the feed meat ratio and reduce the production cost.
3). Vapour steam inlet: connection with steam boiler.
4). Pellet making: ring die and press roller inside work together to make the raw material into pellet pellet.
5). Main motor: driving the pellet making system.

Working process of feed pellet mill machine:


The main components of the press chamber of the feed pelletizer are composed of a ring die, two press rollers, a feeding scraper, a cutter and a die roller gap adjusting screw.
The structure and working principle of the press room: Feed powder feed is sent to two pressing areas through the ring die cover and the feed scraper. The empty shaft drive wheel drives the press mold to rotate, and the feed material is drawn between the press mold and the press roller. , The two relatively rotating parts gradually squeeze the feed, the feed is squeezed into the ring die hole, formed in the die hole, and continuously squeezed to the outer end of the die hole, and then the formed pellets are cut into the required length by the tool . The formation of the particle stream enters the next step.
Technology parameter of feed pellet mill machine:
Model SZLH320 SZLH350 SZLH400 SZLH420 SZLH508
Capacity 2-5T/H 1.5-8T/H 2-10T/H 3-12T/H 4-20T/H
Main Motor Power 37KW 55KW 75/90KW 110KW 132/160KW
Screw Feeder Power 0.55KW 0.75KW 0.75KW 1.5KW 1.5KW
Conditioner Power 2.2KW 2.2KW 2.2KW 5.5KW 7.5KW
Ring die inner diameter 320mm 350mm 400mm 420mm 508mm
Ring die rotational speed 305PRM 336PRM 307PRM 287PRM 287PRM
Roller outer diameter 140mm 165mm 190mm 206mm /
Dimension 2300*1000*2100 3200*1100*1700 3200*1300*1900 3500*1300*2800 3500*1500*2900

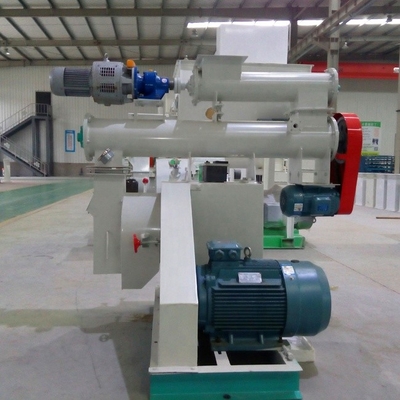

Poultry Farm Animal Feed Mill Extruder Pellet Machine 0

Advantages of feed pellet mill machine:
1. High precision gear direct-connecting driving is adopted for high efficiency and running stabilization;
2. Bearing and oil seals in key part of main drive system for high grade type pellet mill are imported
3. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control and Electromagnetic speed regulation control are optional;
4. Full stainless steel conditioner with different kind of poultry type, aquatic type, enlarge type, single-layer type or multi-layer type. Control conditioning and cooking tiem, increase the quality of feed.
5. Conditioner end is special sealed, axial steam spraying make material connect with steam more enough
6. Model selection and assembly gap of main shaft is ensured enough from structure design, don't make gap of main shaft move because safety pin is broken and replaced, prolong the lifetime of main shaft, ensure the machine running efficiency and stabilization long time
7. New box is made by special foundry technology in imported machining center, high precision.
8. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
9.3 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
10. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
11. Heavy welded base structure for whole machine, set deironing and overload protection device for protecting the machine in use

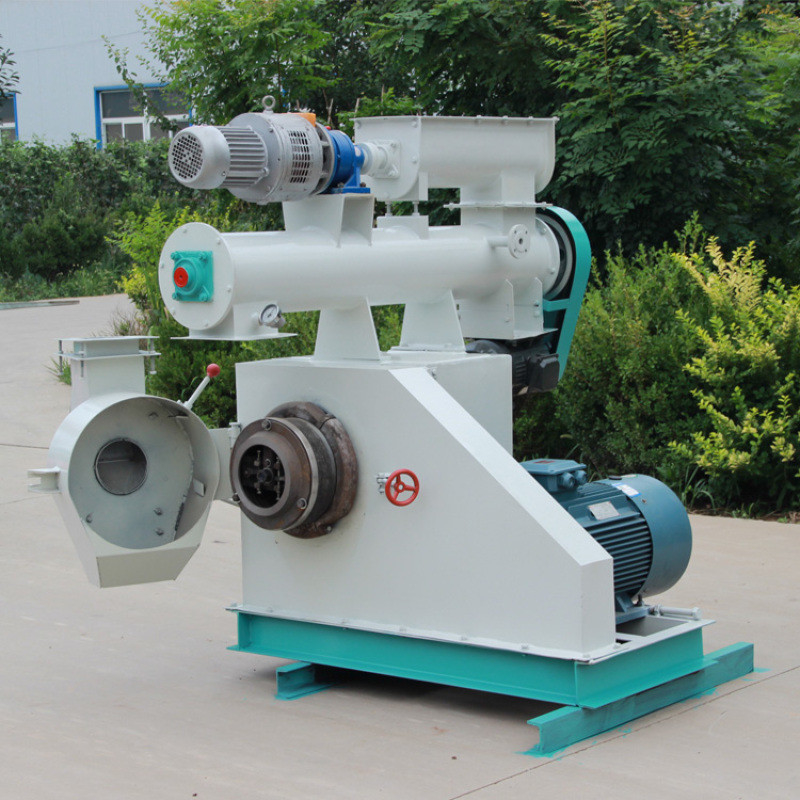

Poultry Farm Animal Feed Mill Extruder Pellet Machine 1

Our Pre-sale Service:
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.

Our after-sales Service:
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5. Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7. Providing technical exchanging.
