Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ring Die Feed Pellet Mill Machine Animal Feed Pellet Machinery | Capacity: | 1-3 Tons Per Hour |
|---|---|---|---|
| Raw Material: | Animal Feed Powder | Material: | Stainless Steel Or Carbon Steel |
| Voltage: | 380V/415V | Warranty: | 12 Month |
| High Light: | Aquatic Ring Die Feed Pellet Mill,Animal Ring Die Feed Pellet Mill,Ring Die Animal Feed Pellet Machinery |
||

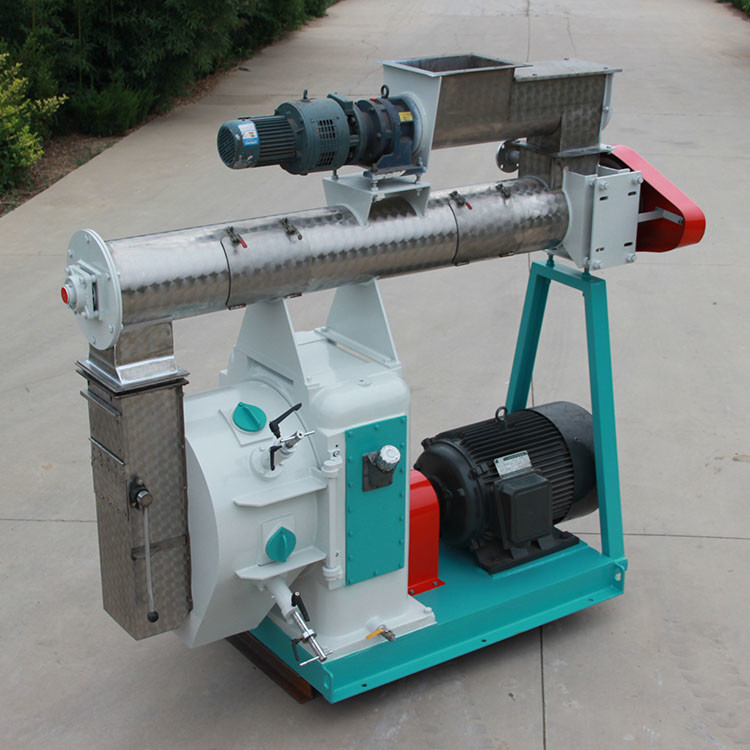

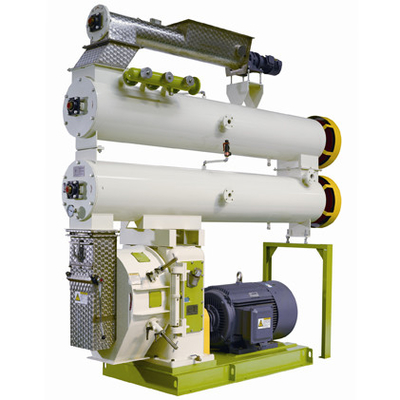

Ring Die Feed Pellet Mill Machine Animal Feed Pellet Machinery
Product description:
Parameter of feed pellet mill machine
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| SZLH250 | 22kw | 0.6-1 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| SZLH320 | 37kw | 1-3 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| SZLH350 | 55kw | 3-5 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| SZLH420 | 110kw | 8-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| SZLH508 | 132/160kw | 10-18 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
Features
1. The rotation speed of the drive shaft of the reducer and the structure of the paddle will cause the material to lose weight instantly. During the mixing process, the differences in particle size and specific gravity of each material are ignored in the mixing process;
2. The intense stirring motion shortens the mixing time, making it faster and more efficient;
3. Intense mixing makes the materials easy to stick together to form a mass or block material for destruction.
