ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD
Home ProductsAnimal Feed Pellet Machine

0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Muhammad

Best Service , the engineer team very professional , from design to production , delivery and installation, all is best . I felt very satisfied.

—— James Amolo

I'm Online Chat Now

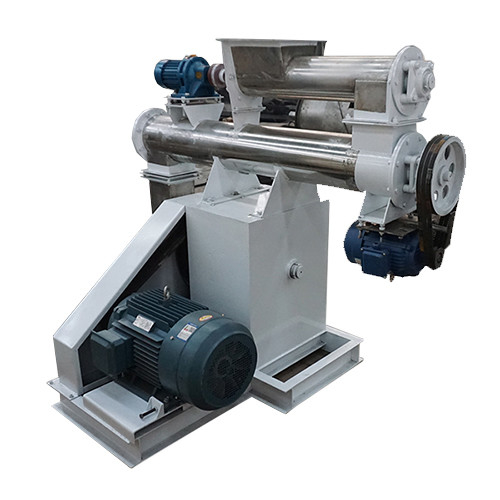

0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine

0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine
0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine 0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine

Large Image :  0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001, CE
Model Number: SZLH250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 5999-29999
Packaging Details: 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Livestock Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine Raw Material: Carbon Steel
Dimension: 3260*1100*2200mm Voltage: 380V, 50hz, 3 Phase
Screw Diameter: 155mm Application: Animal Feed Pellet Machine
High Light:

1tph Animal Feed Pellet Machine

,

0.6tph Animal Feed Pellet Machine

,

1tph Animal Feed Extruder

Livestock Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine



Product description

The ring die feed pellet machine is to extrude the mixed powdery feed into cylindrical pellet feed at one time. Left and right, can make starch gelatinized, deep inside ripening, not easy to rot and deteriorate, can be stored for a long time, at the same time improve the palatability and digestion and absorption function of livestock and poultry, shorten the fattening period of livestock and poultry, and greatly reduce the production of farmers. cost. The ring die pellet machine is suitable for the processing of pellet feed in large and medium-sized feed factories.


Parameter
Model Power(kw) Capacity(t/h) Directions Application
SZLH250 22 0.6-1.0 According to the customer's different materials and the relative output of different particle sizes, the output of large particles is high, and the output of small particles is small. Granular processing of various livestock and poultry feeds, aquatic feeds, grass meal and organic fertilizers, and processing of aquaculture feeds such as complete sets of units.
SZLH320 37 1.0-3.0
SZLH350 55 3.0-5.0
SZLH420 110 8.0-10.0
SZLH508 132 10.0-18.0


Application
The feed pellet machine can add various additives and drugs to the pelleted feed, and the nutrient loss is extremely small. Dry in and dry out, convenient for sealed storage, and can kill pathogenic microorganisms and parasites, and ensure the quality of feed, which can be used for raising rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc. It is a pellet feed processing equipment specially designed for rural breeding professional households and small farms.

0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine 0
Working principle of feed pellet machine

The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and feed powder raw material.
The feed material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.



Our company



Zhengzhou Shenghong Heavy Industry Technology Machinery co.,ltd. (short for “Shenghong Machinery”)is recognized globally as an expert in process design and equipment manufacturer on fertilizer industry, including animal feed production line with 5000 to 100000 tons per year and fertilizer production line with 5000 to 200000 tons per year.
Shenghong consistently helps you turn ideas into realized processes, work out material and process problems, and create value.



0.6tph-1tph Animal Feed Pellet Machine Animal Feed Extruder Pellet Machine 1



Our service

1) We are the professional manufacturer, which has abundant experience of the machine, also we own research and development team.
2) The professional and timely 24 hours after-sale service.
3) The relative manual and video of the machine installation and instruction will be provided for you.
4) ODM&OEM Provided.
5) The engineer is available to install and training for oversea projects.
