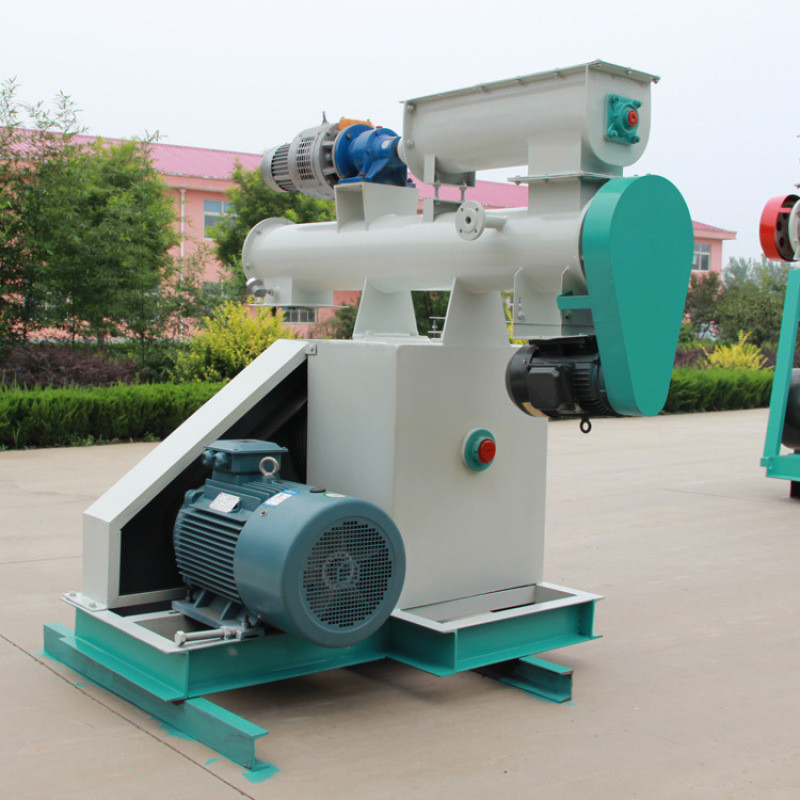

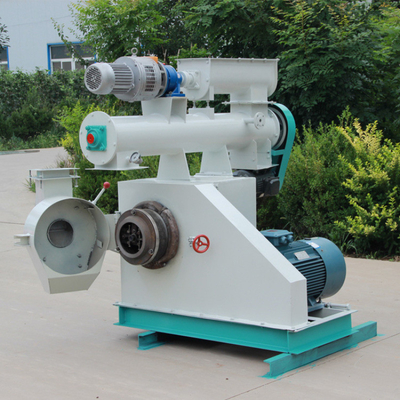

Livestock Feed Pellet Mill Machine Chicken Feed Pellet Machinery
Product description of feed pellet mill machine
Ring die pellet machine (also known as: ring die pellet feed machine, ring die pellet feed forming machine) belongs to feed pelleting equipment. It is a feed processing machine that directly presses particles from crushed materials such as corn, soybean meal, straw, grass, rice husk, etc. Ring die pellet mill is the main feed machinery and equipment for the production of pellet feed. Its performance determines the output of feed processing to a large extent, and occupies a very important position in the process of feed processing.
Parameter of feed pellet mill machine
| Model No. |
Main motor power |
Capacity (t/h) |
Ring die inner diameter (mm) |
Feeder power (kw) |
Conditioner motor power (kw) |
Size (mm) |
Weight (kg) |
| SZLH250 |
22kw |
0.6-1 |
250 |
0.75 |
1.1 |
1750×650×1750 |
800 |
| SZLH320 |
37kw |
1-3 |
320 |
0.75 |
2.2 |
1900×1800×1650 |
2000 |
| SZLH350 |
55kw |
3-5 |
350 |
0.75 |
2.2 |
2100×2000×1850 |
2400 |
| SZLH420 |
110kw |
8-10 |
400 |
1.5 |
4 |
2200×2000×2150 |
2900 |
| SZLH508 |
132/160kw |
10-18 |
450 |
1.5 |
4 |
2300×2350×2150 |
3500 |
Features:
1. Simple structure, wide adaptability, small footprint and low noise.
2. Powdered feed and grass powder can be pelletized without adding a little liquid, so the moisture content of pelleted feed is basically the moisture content of the material before pelleting, which is more convenient for storage.
3. Chicken, duck, fish, etc. can obtain higher economic benefits than mixed powder feed.
4. Dry material processing produces feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.
5. The granule formation process can denature the pancreatic enzyme resistance factor in grains and beans, reduce the adverse effect on digestion, kill various parasite eggs and other pathogenic microorganisms, and reduce various worms and digestive system diseases.
Feeding method
The ring die granulator adopts mechanical forced feeding, high-speed rotation and centrifugal distribution into the granulation chamber, and the material is distributed by the scraper, and the feeding is uneven; .
Pressure
In a mold with the same diameter, the diameter of the ring die pressing wheel is limited by the diameter of the ring die, so the pressure is limited; the diameter of the flat die pressing wheel is not limited by the diameter of the die, and the space for the built-in bearing can be increased. The No. 1 bearing enhances the bearing capacity of the pressure roller, which not only improves the pressing force of the pressure roller, but also prolongs the service life.
Outlet method
The ring die belongs to high speed, and the breakage rate is high when the material is discharged; while the flat die belongs to low speed, and the breakage rate is low.
Pressure wheel adjustment method
The ring die granulator uses two screws on the eccentric wheel in the middle of the pressure wheel to adjust the pressure; the flat die granulator uses a threaded screw rod m100 center adjustment mechanism, with a jacking force of 100 tons, stable falling, soft touch, and pressure. evenly. There are two ways of rotating manual and hydraulic automatic adjustment.
From the comparison between the flat die and the ring die, we can see that the pressure of the flat die is larger than that of the ring die, so it is better to use the flat die for the coarse fibers that are light and difficult to form, such as wood chips and straw.
