Introduction

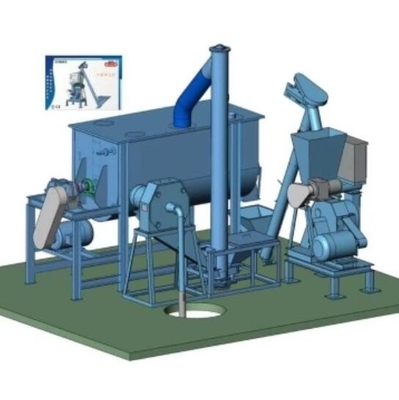

1. The product capacity SH350 production line is 5-6t/h,
2. SH-350 12 silo automatic batching feed pellet production line is a large feed pellet plant,through computer control automatic batching system,it easy to adjust feed formulation and feed material mix proportion.it have 12 batching silo can matching 12 kinds of feed material,thus can meet customer different animal feed production demand.it not only can produce feed pellet for poultry feed (chicken feed, duck feed, etc), but also can produce livestock feed (cattle feed, sheep feed, rabbit feed, etc).
3. This type feed pellet production line can process all kinds of animal feed material,such as corn,soybean,wheat bran, sorghum, bone, fish, straw power, crushed grass, etc. it is very suitable to produce pellet feed and premix/ powder/ mash feed for chicken,duck,rabbit,pig,fish, shrimp,cattle,cow,sheep feed,etc.

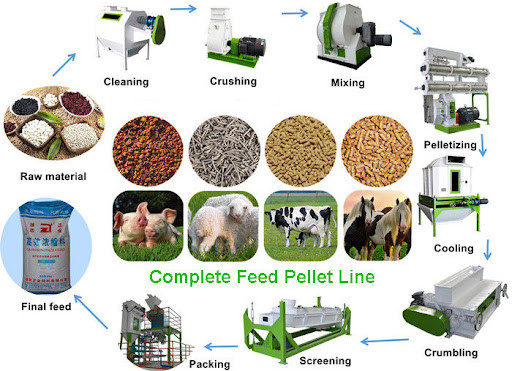

1. Feed materials receiving and cleaning system:
Before going into the main equipments,feed raw materials should be cleaned to remove impurities and iron parts in order to ensure the product quality and normal working of the main equipments.
2. Feed crushing system:
All big size feed raw materials should be grinded to small pieces or powder feed by hammer mill,hammer mill sieve can be 2,4,6,8,10mm..
3. Feed automatic batching and mixing system:
Bucket elevator transport each crushed feed into 12 pcs of batching silo,by computer accoriding to feed formulation to match different feed into paddle mixer,mixer blend feed evenly.
4. Feed pelletizing system (Including steam conditioning system):
Adopt ring die feed pellet mill produce feed pellet with high production capacity and high grade pellet feed production effect. Ring die feed pellet mill can produce feed pellet,diameter 2-8mm,according to customer demand.
Steam boiler system supply steam to conditioner device,it can cooking and modulating feed improve feed moisture and temperature, steam conditioning equipment can improve the material granulating, increase production capacity, save the energy consumption of the granulating, improve the use life time of pelletizer ring die and roller.
5. Feed pellet cooling system:
Produced feed pellet temperature vey high,it can't suitable to pack directly,so need pellet cooler machine cool down pellet feed temperature,by cooler machine can make pellet temperature room temperature+3 degree.
6. Feed pellet crumbling system:
Feed pellet crumbler is optional. can use crumbler to broke feed pellet for small chick feed.
7. Feed pellet sieving system:
We use rotary screener to sieve the feed pellet. Sieve the qualified pellet feed to sale.
8. Automatic packing system:
Independent packaging system, high precision and package speed,save labor.
