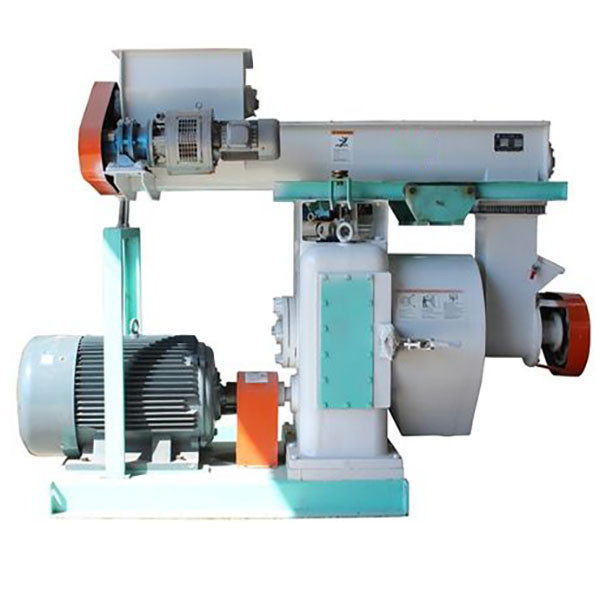

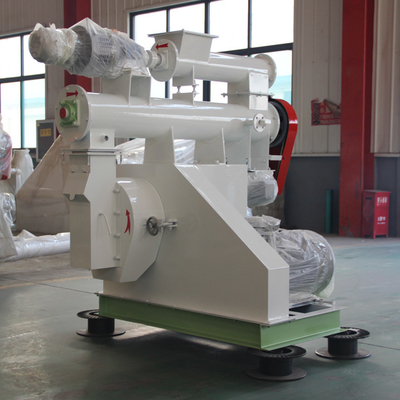

CE Approved Feed Processing Machine Animal Cattle Chicken Feed Pellet Machine

Name: CE Approved Feed Processing Machine Animal Cattle Chicken Feed Pellet Machine
Brand: Shenghong
SKU: SZLH250
Price: 5999 USD
Availability: InStock
Rating: 4.9 (102 reviews)

Large Image : CE Approved Feed Processing Machine Animal Cattle Chicken Feed Pellet Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shenghong
Certification:	BV, SGS, ISO9001, CE
Model Number:	SZLH250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 5999-29999
Packaging Details:	20GP, 40GP, 40HQ
Delivery Time:	within 15 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Animal Feed Pellet Machine	Raw Material:	Carbon Steel
Dimension:	326011002200mm	Voltage:	380V, 50hz, 3 Phase
Screw Diameter:	155mm	Application:	Animal Feed Pellet Machine
High Light:	CE Approved Feed Processing Machine , Animal Cattle Feed Processing Machine , CE Approved Chicken Feed Pellet Machine

CE Approved Feed Processing Machine Animal Cattle Chicken Feed Pellet Machine for Sale

Product description

Its technological processes are as follows: raw material feeding, single-point precipitating, scraper conveying, hoisting, raw material cleaning, impurities removing, preliminary mixing, coarse and fine grinding, computer-controlled batching, effective fine mixing, quality conditioning, granulating with assured quality, pellet curing, cooling and drying, pellet crushing, screening, products packaging etc.. Centralized monitoring, assisted by the segmentation control of main section sites, is conducted by the central control room in electrical control. On the basis of the users' demand, the operator can adopt computerized distributed control system. The start-up and shut down of equipment installed in each segment are controlled by PLC. Meanwhile, the operation and failure warning of equipment in each segment will be dynamically displayed in computer and it also has .the function of database management. The unit is scientific in production process, reasonable in its layout, accurate in batching, complete in functions, convenient in operation and maintenance.

Parameter

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH250	22	0.5-1.5	2.2	0.55	250
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Feature:

1.Advanced, perfect and flexible process design.

2.equipment selection for domestic advanced products, to ensure the advancement of technical equipment.

3. Reasonable equipment layout, compact structure, low civil construction cost and short construction period.

4. The control system adopts centralized control system to facilitate operation and management.

5, dust removal system design is perfect, not only to ensure the dust removal effect, but also to achieve economic and reasonable investment.

Working principle:

1.Wide applicable scope:It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials

2.Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy

3.Full stainless steel feeder;Variable-pitch anti-arch structure;Imported frequency converter control

4.Stainless steel conditioner extends the conditioning and cooking time.Axial steam spraying port, improving feed cooking efficiency

5.High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life
