Product Details:
Payment & Shipping Terms:
|
| Product Name: | Animal Feed Pellet Making Machine Factory Price Chicken Sheep Cattle Fish Pelletizer | Raw Material: | Carbon Steel |
|---|---|---|---|
| Dimension: | 3260*1100*2200mm | Voltage: | 380V, 50hz, 3 Phase |
| Screw Diameter: | 155mm | Application: | Animal Feed Pellet Machine |
| High Light: | Animal Chicken Feed Pellet Machine,3 Phase Animal Pelletizer,Sheep Cattle Feed Pelletizer |
||

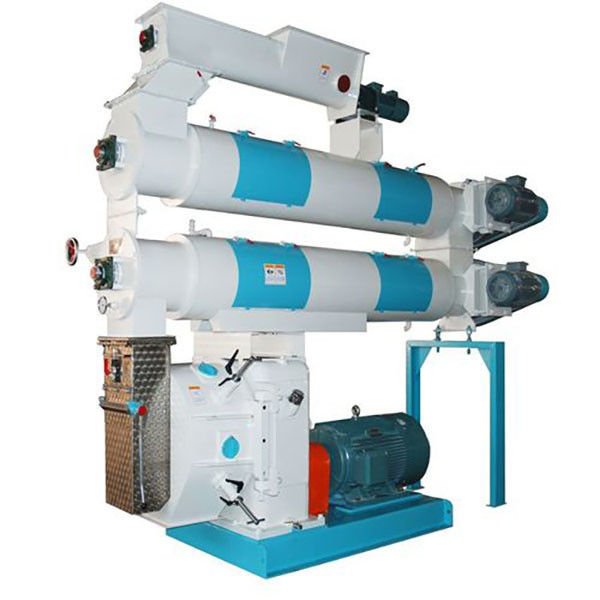

Animal Feed Pellet Making Machine Factory Price Chicken Sheep Cattle Fish Pelletizer
Product description
1. Feeder and conditioner device of the Small Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use;
2. Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
3. Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
4. Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
5. Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2/2.5/3/3.5/4/6/8/10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | 1-3T/H,also can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) |
| Certication | CE |
| Motor | Siemens Brand Motor |
| Bearing | Brand |
| Service after sales | Engineer can provide technical support |
| Model | Main power(kw) | Out-put(t/h) | Power of Conditioner(kw) | Power of screw feeder(kw) | In-side of rind die(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
