Animal Poultry Feed Pellet Production Line 6mm Processing Plant

Animal Poultry Feed Pellet Production Line 6mm Processing Plant
Animal Poultry Feed Pellet Production Line 6mm Processing Plant Animal Poultry Feed Pellet Production Line 6mm Processing Plant

Large Image :  Animal Poultry Feed Pellet Production Line 6mm Processing Plant

Product Details:
Place of Origin: China
Brand Name: Shenghong
Certification: ISO,CE
Model Number: ZLH420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000-USD80000 per line
Packaging Details: Loading in container or packed in export carton
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Item: Poultry Feed Pellet Production Line Animal Feed Processing Plant For Sale Material: Carbon Steel
Capacity: 1-10 Ton Per Hr Voltage: 380V Or Customized
Pallet Size: 1-6mm Application: Chicken, Goose, Duck, Cow, Sheep, Pig Animal
After Sale Service Provides: Spareparts Wanrranty, Abroad Installation Instruction Adjustor Material: Stainless Steel
High Light:

Poultry Feed Pellet Production Line

,

6mm Feed Pellet Production Line

,

Animal Feed Pellet Processing Plant

Animal Livestock Cattle Pig Chicken Poultry Feed Pellet Production Line



Introduction

This animal feed pellet production line can be used for processing livestock, poultry and aquatic feed pellets, which is specially suitable for big feed factory, breed farm. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials . And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits. We provide free charge of installation, and training, factory designing, and timely after-sale service.



Models:



Model
Main Motor(kw)
Capacity(t/h)
Dimension(mm
SZLH250
22
1-2
2000*1400*1550
SZLH320
30/37
2-4
2300*1700*2000
SZLH350
37
3-6
2600*1000*2050
SZLH400
55
4-11
2880*1140*2220
SZLH420
75
5-12
3000*1300*2350
SZLH450
90
6-20
3400*1300*2550

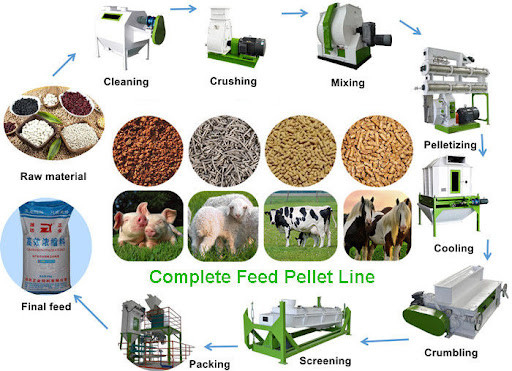

Processing:
(1) Raw Material Grinding Process
The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.
(2) Feed Material Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.
(3) Feed Pelletizing Process:
Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.
(4) Feed Pellet Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
(5) Feed Pellet Crumbler Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
(6) Feed Pellet Screening and Grading Process:
The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
(7) Feed Pellet Packing Process:
The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.

Animal Poultry Feed Pellet Production Line 6mm Processing Plant 0

Application

Section
Main Machine
Application
1. Raw material cleaning section
Cleaner and Magnetic Tube
cleaning dust in the materials
2. Crushing section
Hammer mill, dust colletcor
crushing materials into powder
3. Mixing section
Mixer, conveyor
mixing different kinds of materials
4. Pelletizing section
Pellet machine, conveyor
Pelletizing pellets
5. cooling section
Cooler, crumbler, screens
Cooling pellets
6. Packing section
Packing machine, conveyor
Packing pellets into 10-50kg/bag
7. Electric control system
Electric carbinets, cables
control the whole plant

Animal Poultry Feed Pellet Production Line 6mm Processing Plant 1
