Product Details:
Payment & Shipping Terms:
|
| Product Name: | 3-5 TPH Animal Feed Pellet Machine Livestock Feed Pellet Mill Machine | Raw Material: | Carbon Steel |
|---|---|---|---|
| Dimension: | 3260*1100*2200mm | Voltage: | 380V, 50hz, 3 Phase |
| Screw Diameter: | 155mm | Application: | Animal Feed Pellet Machine |
| High Light: | Animal 5 TPH Feed Pellet Machine,Carbon steel Feed Pellet Mill,Livestock Feed Pellet Mill Machine |
||

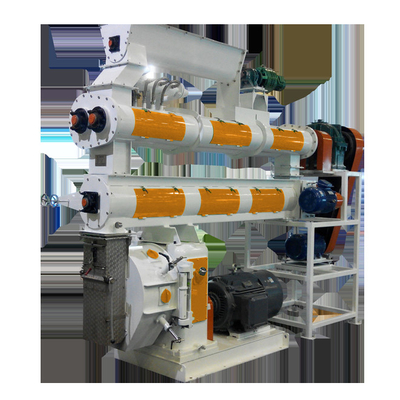

3-5 TPH Animal Feed Pellet Machine Livestock Feed Pellet Mill Machine
Product description
1. High efficiency
Gear-driven transmission system and S Shape coupling make the efficiency be above 97%. Compared with belt-driven
system, the output can increase 15-20%.
2. Long service time
Siemens motor, imported bearing, Germany oil seal, etc these top quality parts make our machine has long service time. Also,gear-box body is made by HT250, which is highly abrasive. Many other manufacturers adopt HT180/HT200.
3. Easy operation and maintenance
Quickly assembled and disassembled ring die is easy to change. It only takes 0.5hour for one worker to change ring die. Compared with vertical ring die machine in China, it saves much more time.
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2/2.5/3/3.5/4/6/8/10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | 1-3T/H,also can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) |
| Certication | CE |
| Motor | Siemens Brand Motor |
| Bearing | Brand |
| Service after sales | Engineer can provide technical support |
| Model | Main power(kw) | Out-put(t/h) | Power of Conditioner(kw) | Power of screw feeder(kw) | In-side of rind die(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
2.Stainless steel conditioner makes even retention and sufficient cooking effect.
3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.
4.High quality bearings and motors are adopted to makes operation smoothly.
5.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
6.The ring die& roller assemblies are quickly assembled and disassembled.
7.Applicable for all kinds of high grade animal/livestock/aqua feed. Single, double or three layers of conditioner is optional.
8.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
