Product Details:
Payment & Shipping Terms:
|
| Product Name: | Poultry Feed Pellet Making Machine Animal Feed Processing Machines | Raw Material: | Carbon Steel |
|---|---|---|---|
| Dimension: | 3260*1100*2200mm | Voltage: | 380V, 50hz, 3 Phase |
| Screw Diameter: | 155mm | Application: | Animal Feed Pellet Machine |
| High Light: | Poultry Feed Pellet Machine,155mm Animal Feed Pellet Machine,50hz Feed Pellet Making Machine |
||

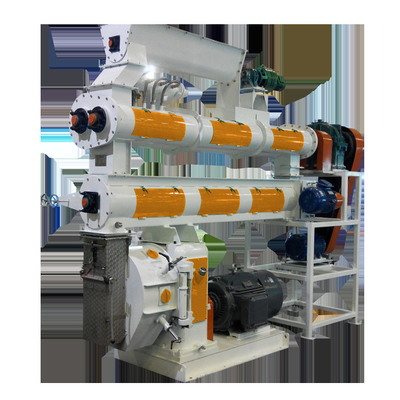

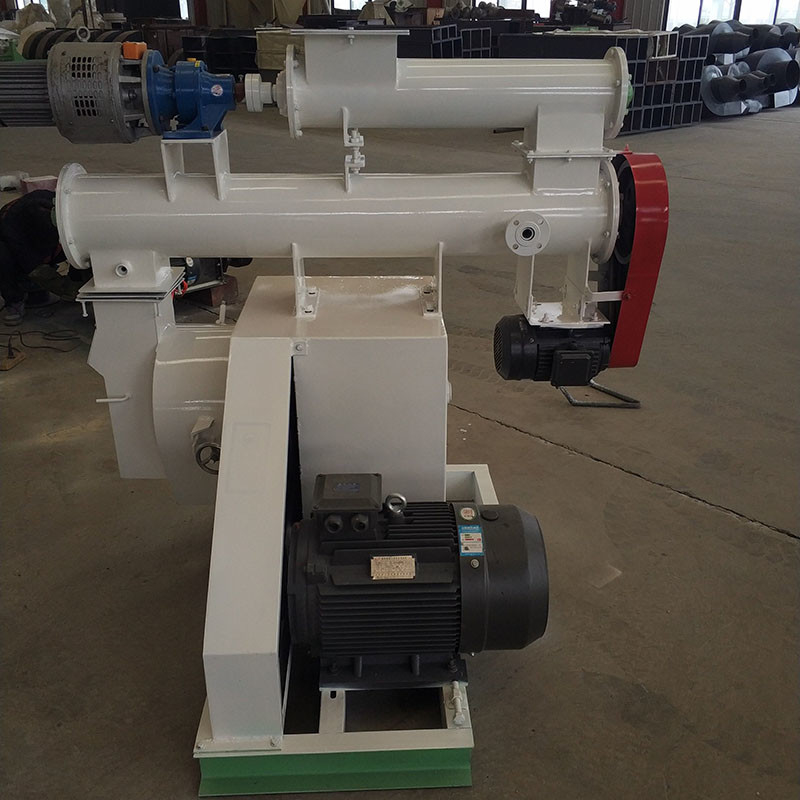

3-5 TPH Animal Feed Pellet Machine Livestock Feed Pellet Mill Machine
Product description
Pelletizing is the key process of making raw materials into animal feed pellets. And this top grade pellet mill is a selling well machine in our production line. There are two types of our pellet mills, one is for producing animal feed pellets, and the other is for making wood pellets.
ring die pellet mill is the ideal choice to produce pellets with large quantity. We are specialized in manufacturing livestock pellet mill, poultry pellet mill, double conditioner pellet mill, animal feed maker, feed pellet mill machine, livestock feed machine and also biomass ring die pellet mill, etc.
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2/2.5/3/3.5/4/6/8/10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | 1-3T/H,also can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) |
| Certication | CE |
| Motor | Siemens Brand Motor |
| Bearing | Brand |
| Service after sales | Engineer can provide technical support |
| Model | Main power(kw) | Out-put(t/h) | Power of Conditioner(kw) | Power of screw feeder(kw) | In-side of rind die(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
1. Feeder uses frequency conversion motor, it can be adjusted within a certain scope according to the need of production.
2. The safe protection device is consist of interlock device, outer machine discharging device and over-load protection device, to ensure the safe and reliable.
3. Install magnetic separation and removal iron equipment, to prevent the iron impurities that mixed in fodder from entering into
the suppression of granulation chamber.
4. Extended stainless steel conditioner, with long conditioning and cooking time.
5. The special designed lubrication oil return system, to ensure the bearing lubrication.
6. The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner can be chosed according to user’s requirement.
7.Applied range: Feed plants and all kinds of animal farms and for making granular fodder, can be used to make various roughage and refined fodder in livestock farm and feed mill, also used for chemical industry, fertilizer industry and sugar industry.
