| Product Name: | Ring Die Poultry Animal Feed Pellet Machine For Manufacture Plant | Raw Material: | Carbon Steel |
|---|---|---|---|
| Dimension: | 3260*1100*2200mm | Voltage: | 380V, 50hz, 3 Phase |
| Screw Diameter: | 155mm | Application: | Animal Feed Pellet Machine |
| High Light: | Poultry Animal Feed Pellet Machine,Ring Die Feed Pellet Machine,Animal 380V Feed Pellet Machine |
||

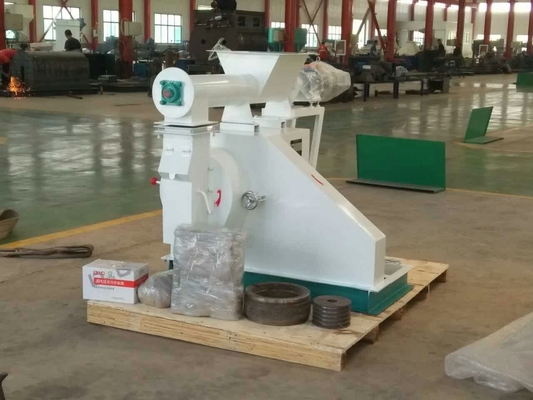

Ring Die Poultry Animal Feed Pellet Machine For Manufacture Plant
Product description
SZLH ring die type animal feed pellet machine mainly using for poultry feed pellets making, this machine with constant speed feeder, and connecting with a conditioner, the conditioner can connecting with steam for softens and ripens materials, make the final pellets good for animal health.
This ring die livestock pelletizer, with big ring die and big roller structure, high capacity and easy operating. The pelleting chamber cover easy opening, it is good for normallly maintanence and change the ring die and rollers.
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2/2.5/3/3.5/4/6/8/10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | 1-3T/H,also can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) |
| Certication | CE |
| Motor | Siemens Brand Motor |
| Bearing | Brand |
| Service after sales | Engineer can provide technical support |
| Model | Main power(kw) | Out-put(t/h) | Power of Conditioner(kw) | Power of screw feeder(kw) | In-side of rind die(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
Ring die pellet mill is specially designed for mass industrial production of animal feed pellets . The raw materials are easy to obtain, like corn/wheat/soybean . The final pellets can be used for feed pellets and Cat litter particles.
Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed. You can make 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets.
The ring die type animal feed pellet machine mainly using for poultry feed pellets making, this machine with constant speed feeder, and connecting with a conditioner, the conditioner can connecting with steam for softens and ripens materials, make the final pellets good for animal health.
Function of each part:
1) Feeder: feeding raw material into the conditioner.
2) Conditioner: the feed raw material are ripened and sterilized due to the vapour steam. which can improve the digestibility of the feed, promote the absorption, increase the feed meat ratio and reduce the production cost.
3) Vapour steam inlet: connection with steam boiler.
4) Pellet making: ring die and press roller inside work together to make the raw material into pellet pellet.
5) Main motor: driving the pellet making system.
