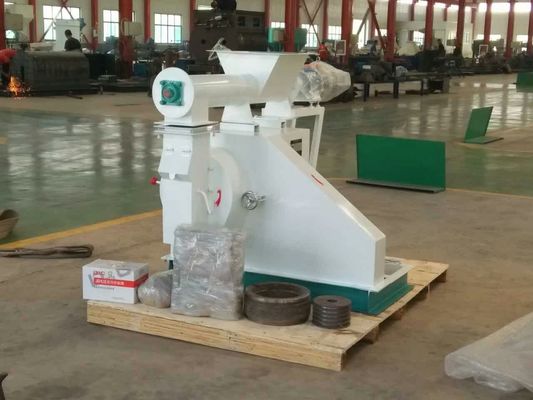

3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment

3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment
3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment 3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment

Large Image :  3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001, CE
Model Number: SZLH250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 5999-29999
Packaging Details: 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Animal Feed Pellet Machine Raw Material: Carbon Steel
Dimension: 3260*1100*2200mm Voltage: 380V, 50hz, 3 Phase
Screw Diameter: 155mm Application: Animal Feed Pellet Machine
High Light:

3TPH Animal Feed Pellet Machine

,

3 phase Poultry Feed Pellet Machine

,

Poultry Feed Manufacturing Equipment

3-5TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment



Product description

The process is reasonable, the output is high, and the energy consumption is low. It can achieve an annual output of 4000-12000 tons of powder or pellet feed in a single shift; building block structure: the unit has a compact structure, small footprint, low plant requirements, and low civil construction investment. Container building block structure, easy to disassemble, easy to transport and install, easy to install the unit; centralized control: centralized control on the analog screen, interlocking control between each equipment, and equipped with safety and alarm devices, easy to operate; use Wide range: the unit can produce both livestock and poultry feed and fish feed, which is suitable for small and medium-sized feed factories and farms.


Parameter
Raw materials corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet 2/2.5/3/3.5/4/6/8/10mm
Application feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity 1-3T/H,also can customized according to your demand
Process Step crushing-mixing-pelletizing--cooler&screener--packing
Warranty 1Year(except spare parts)
Certication CE
Motor Siemens Brand Motor
Bearing Brand
Service after sales Engineer can provide technical support
Model Main power(kw) Out-put(t/h) Power of Conditioner(kw) Power of screw feeder(kw) In-side of rind die(mm)
SZLH250 22 0.5-1.5 2.2 0.55 250
SZLH320 37 2-3 2.2 0.75 320
SZLH350 55 3-5 3 0.75 350
SZLH400 75/90 3-10 5.5 1.5 400
SZLH420 90/110 3-14 5.5 1.5 420
SZLH508 110/132/160 6-15 7.5 2.2 508
SZLH558 180/200 10-20 11 2.2 558
SZLH678 220/250 25-30 18.5 3 678

Feature:
1. Adopt precision involute cylindrical helical gears for direct transmission, with good transmission efficiency.
2. The transmission gear tooth blank is subjected to normalizing heat treatment after the water chain, which improves the hardness of the tooth surface. The tooth surface is carburized, and the carburized surface is as deep as 2.4mm, which enhances the wear resistance and prolongs the service life of the parts. The surface is processed by the silent fine grinding practice process, so that the operation is quiet and stable.
3. The main shaft and the conjoined hollow shaft are made of alloy structural steel bar water section, rough turning, heat treatment, fine turning and fine grinding. The structure is reasonable and the hardness is uniform, which improves the fatigue resistance and wear resistance of the parts.
4. The main box is made of carbon steel precision casting, with uniform thickness and precise structure to ensure normal operation.
5. The bearings and oil seals used in the transmission part are all made of precision bearings and wear-resistant and temperature-resistant fluororubber oil seals, and a lubricating oil return system is added, the oil circuit is circulated and cooled, and the oil is lubricated automatically and regularly. Ensure that the bearings are fully lubricated and operate reliably.
6. The bearings used in the particle forming system are all silent bearings, and a thin oil circulation cooling and lubrication system is added, the bearing has a long service life and ensures operation.
7. The ring die is made of stainless steel, and the compression ratio design is reasonable, so that the product quality is good, the use time of the ring die is long, and the production cost is reduced.

3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment 0
Application:
1. Efficient first-stage gear transmission to ensure the maximum transfer of energy;
2. All stainless steel feeder, variable pitch anti-arching mechanism, and imported variable frequency speed control;
3. Enlarge the stainless steel conditioner and use axial steam inlet, which greatly improves the time and effect of conditioning and curing;
4. The high-precision transmission gears and gear shafts are carburized and quenched, and the hardened tooth surface is ground. The transmission is stable, the noise is low, and the service life is long;
5. The material of the gearbox and the high precision of the transmission hole are guaranteed by the casting technology of the professional foundry and the CNC machining equipment;
6. The main drive system bearings and oil seals are imported high quality. And a special lubrication oil return system is set up to ensure reliable bearing lubrication;
7. The connection between the ring die and the drive wheel adopts three-piece quick-release precision casting hoop, which is convenient and quick to disassemble the ring die;
8. The door cover and chute are all made of stainless steel, with strong anti-corrosion ability and long service life;
9. The motor and gear shaft adopt a new type of serpentine spring coupling, which is easy to disassemble and assemble, reliable in transmission and high in efficiency.


3TPH Animal Feed Pellet Making Machine Poultry Feed Manufacturing Equipment 1
