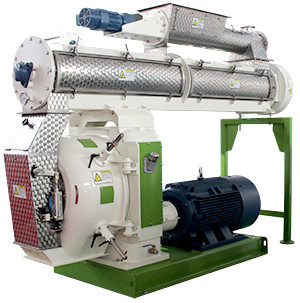

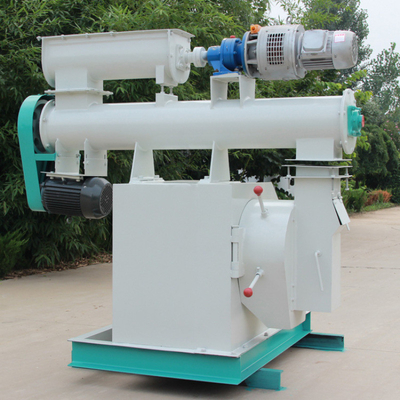

Ring Die Poultry Animal Feed Pellet Mill Machine Animal Food Making Machine
Product description:
SZLH Feed Pellet Machine Stable and classical gear driving,non-slipping,can really ensure the production output. Low noise,optimized ring die,maximum output. SZLH poultry feed pellet making machine adopt high-precision gear drive,advanced flexible coupling,for high productive efficiency;Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed.
SZLH Feed Pellet Machine Euipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.
It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .
Parameter:
| Model No. |
Main motor power |
Capacity (t/h) |
Ring die inner diameter (mm) |
Feeder power (kw) |
Conditioner motor power (kw) |
Size (mm) |
Weight (kg) |
| SZLH250 |
22kw |
0.6-1 |
250 |
0.75 |
1.1 |
1750×650×1750 |
800 |
| SZLH320 |
37kw |
1-3 |
320 |
0.75 |
2.2 |
1900×1800×1650 |
2000 |
| SZLH350 |
55kw |
3-5 |
350 |
0.75 |
2.2 |
2100×2000×1850 |
2400 |
| SZLH420 |
110kw |
8-10 |
400 |
1.5 |
4 |
2200×2000×2150 |
2900 |
| SZLH508 |
132/160kw |
10-18 |
450 |
1.5 |
4 |
2300×2350×2150 |
3500 |
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
Feature:
1.this production line including crushing, mixing, conveying, pelleting multi-function in one, advanced design, simple structure, wide applicability, small area, low noise.
2. Powder feed and grass meal can be granulated without (or a little) liquid addition. Therefore, the moisture content of pellet feed is basically the moisture content of materials before granulation, which is more conducive to storage.
3. The particles made by this machine are of high hardness, smooth surface and full degree of internal maturation, which can improve the digestion and absorption of nutrients, and can kill the common pathogenic microorganisms and parasites. They are suitable for feeding rabbits, fish, ducks and experimental animals, and can achieve higher economic benefits than mixed powder feed.
4. The machine is equipped with 2.5mm--12 kinds of aperture molds, which can be used to granulate different materials to achieve the best effect.
5. Adapt to different materials to ensure the pressing effect. Corn bran, soybean meal and other grain concentrate and corn stalk, peanut stalk, clover and other raw materials of coarse fiber can be formed at one time or mixed in different roportions. In similar granulating equipment, the roller part is the central part of the whole equipment, and high-quality
