CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill

All Products
Animal Feed Production Machine (56)
Animal Feed Pellet Machine (45)
Feed Pellet Mill Machine (37)
Feed Pellet Production Line (23)
Poultry Feed Production Line (23)
Animal Feed Production Plant (18)
Chicken Feed Production Line (13)
Livestock Feed Equipment (17)
Cattle Feed Manufacturing Plant (17)
Small Feed Pellet Machine (21)
Animal Feed Extruder Machine (17)
Powder Feed Production Line (17)
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD certification
Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Muhammad

Best Service , the engineer team very professional , from design to production , delivery and installation, all is best . I felt very satisfied.

—— James Amolo

I'm Online Chat Now

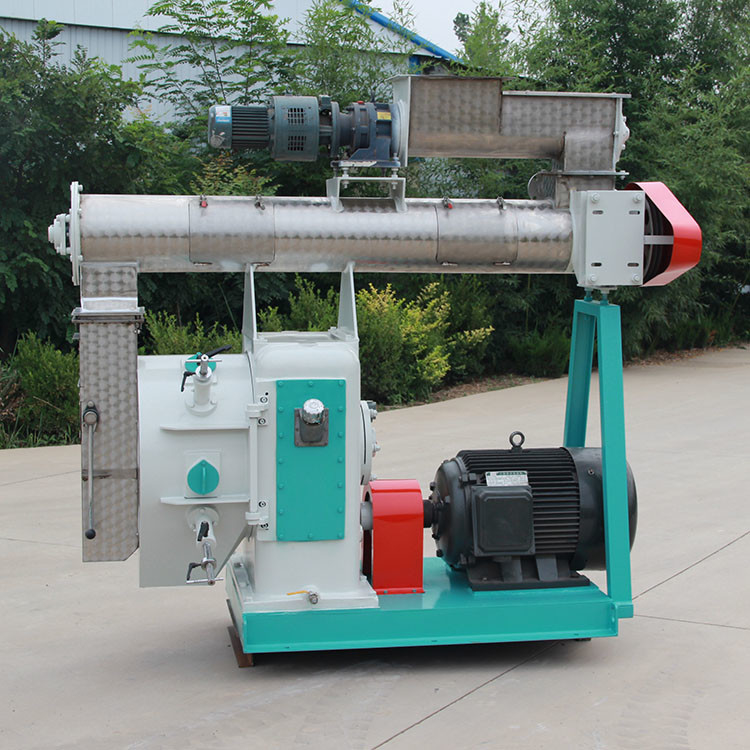

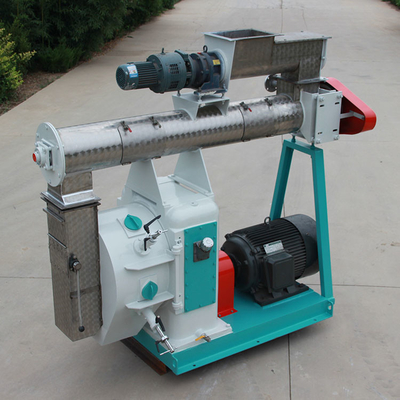

CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill

CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill
CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill

Large Image :  CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 3999-6999
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Feed Pellet Mill Machine Capacity: 1-3 Tons Per Hour
Raw Material: Animal Feed Powder Material: Stainless Steel Or Carbon Steel
Voltage: 380V/415V Warranty: 12 Month
High Light:

Poultry Feed Making Mill

,

415V Poultry Feeding Pellet Mill

,

carbon steel Poultry Feed Pellet Mill

CE Approved Widely Used Poultry Feed Making Mill Animal Feeding Pellet Machine



Product description:

1. For the machine, the raw material is corn, wheat and other grains, grass is also ok
2. If the raw material is powder, it can be directly made into granules
3. If the raw materials are particle size, firstly, we need to crush them into powder less than 3mm
4. There are also some requirements for raw material moisture, if it is less than 30%, it is better
5. If you want to make pellets of different sizes, you can buy several ring dies of different sizes



Parameter:



Model No. Main motor power Capacity (t/h) Ring die inner diameter (mm) Feeder power (kw) Conditioner motor power (kw) Size (mm) Weight (kg)
SZLH250 22kw 0.6-1 250 0.75 1.1 1750×650×1750 800
SZLH320 37kw 1-3 320 0.75 2.2 1900×1800×1650 2000
SZLH350 55kw 3-5 350 0.75 2.2 2100×2000×1850 2400
SZLH420 110kw 8-10 400 1.5 4 2200×2000×2150 2900
SZLH508 132/160kw 10-18 450 1.5 4 2300×2350×2150 3500

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC



Feature:

1. It is key equipment for production of pellet feed and adapts to produce small feed mill with capacity under 1500TPY;
2 The pellet mill is built with the best materials and design features from companies both domestic and abroad, all of that technology combined with our experience makes our machines cutting edge ;
3. The feeder is controlled by variable speed drive, which is easy for adjustment. The main driving system is a gearbox;
4. It gives you the advantages of high output, low noise, low power consumption, long service life, ease of maintenance. And it is with magnet and overload protection system which makes it safe and reliable.

Main application:
1. Feeder and conditioning device, the feeding chute adopt stainless steel material, durable;
2. Feeding system adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
3. Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
4. Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
5. Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.

Working method:
1. The feed material enters the conditioner through the feeder, is conditioned and mixed with steam in the conditioner, and then enters the pelletizing chamber through the feeding cone.
2. The powder is sent to the second granulation zone of the ring die through the scraper. The material is then passed through a ring die and rolled into pellets.
3. The pellets are discharged from the die hole and cut to the required size by the cutter.

CE Approved Animal Feeding Pellet Machine 415V Poultry Making Mill 0



Tag:

110kw chicken feed pellet machine,

400mm chicken feed pellet machine,

feed pellet making machine 10TPH
