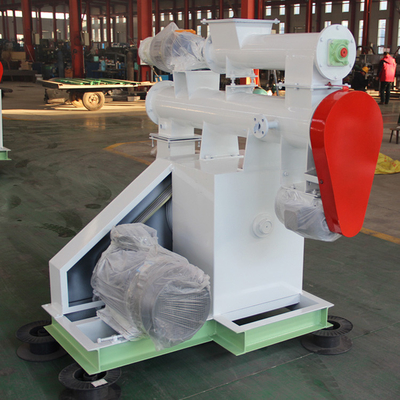

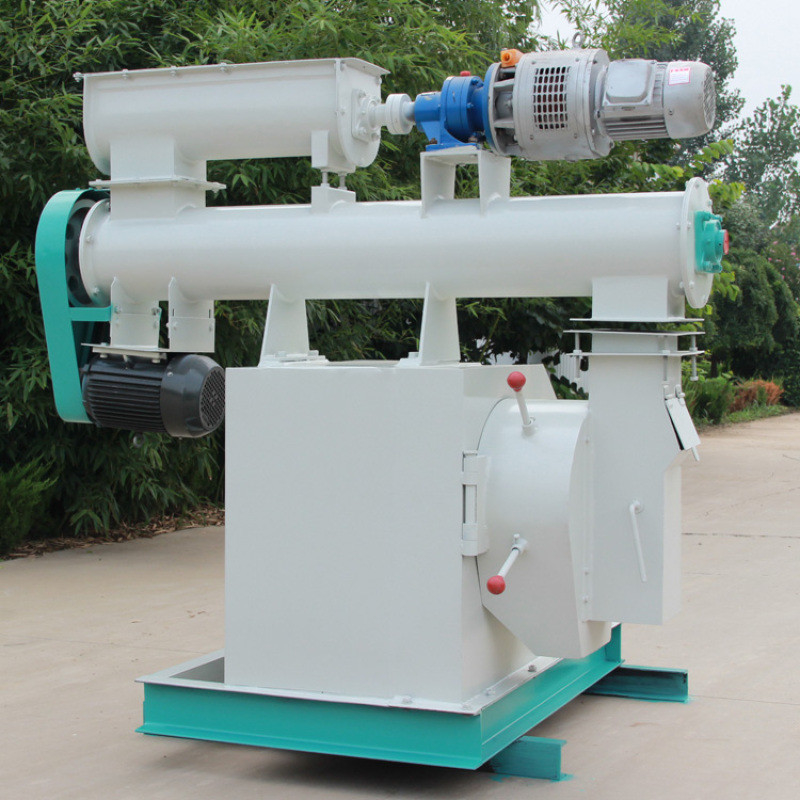

Broiler Pig Chicken Cattle Livestock Poultry Animal Feed Pellet Mill Machine
Product description of feed pellet mill machine
The working principle of ring die pellet machine:
Ring die pelletizer is one of the key main equipments of pellet feed production line. Feed from powder state to pellet formation is completed through four areas:
1. The material is transported into the modulator through the speed-regulating feeding auger. In order to obtain good granulation efficiency (improving the output and quality), after adding hot steam for conditioning, the material is fed from the chute-shaped feeding pipe and passed through the ring die cover. With the help of gravity and the centrifugal force generated by the rotation of the ring die, the material is tightly attached to the ring die cover and the inner wall of the die (feeding area).
2. Under the action of the feeding knife, the material is fed uniformly and continuously, and the wedge-shaped space (compression area) formed by each pressing roller and the ring die.
3. Because the gap between the working surface of the outer wall of the pressure roller and the working surface of the inner diameter of the ring die is only 0.1-0.3mm, and this gap is basically horizontal, a certain extrusion force (extrusion zone) is formed.
4. Due to the feeding of the material, under the strong extrusion between the die and the roller, after the material is compacted, it is extruded into the die hole and formed into (forming zone) in the die hole.
The material is continuously fed into the pressing area, extruded into shape, continuously extruded from the die hole, and cut into various required particle lengths by a cutter that can adjust the distance between the knife edge and the outer wall of the ring die.
Parameter of feed pellet mill machine
| Model No. |
Main motor power |
Capacity (t/h) |
Ring die inner diameter (mm) |
Feeder power (kw) |
Conditioner motor power (kw) |
Size (mm) |
Weight (kg) |
| SZLH250 |
22kw |
0.6-1 |
250 |
0.75 |
1.1 |
1750×650×1750 |
800 |
| SZLH320 |
37kw |
1-3 |
320 |
0.75 |
2.2 |
1900×1800×1650 |
2000 |
| SZLH350 |
55kw |
3-5 |
350 |
0.75 |
2.2 |
2100×2000×1850 |
2400 |
| SZLH420 |
110kw |
8-10 |
400 |
1.5 |
4 |
2200×2000×2150 |
2900 |
| SZLH508 |
132/160kw |
10-18 |
450 |
1.5 |
4 |
2300×2350×2150 |
3500 |
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
Feature:
1. Simple structure, wide adaptability, small footprint and low noise.
2. Powdered feed and grass meal can be pelletized without liquid addition, so the moisture content of pellet feed is basically the moisture content of the material before pelleting, which is more conducive to storage.
3. Chicken, duck, fish feed, etc., can obtain higher economic benefits than mixed powdered feed.
4. Dry material processing, the produced feed pellets have high hardness, smooth surface and internal maturation, which can improve the digestion and absorption of nutrients.
5. The granule formation process can denature the resistance factors in grains and beans, reduce the adverse effects on digestion,kill all kinds of parasitic eggs and other pathogenic microorganisms, and reduce all kinds of worms and digestive system diseases.
